DP-HP-MNTR-SRC

Product Overview

DisplayPort Hotplug Maintainer, supports up to Ultra-HD 8K, DisplayPort v1.1/1.2/1.4, headless operation, video pass-through

Features Include:

  • Maintains hotplug signal between source & display
  • Resolves screen resetting issues when using a DP switch
  • Headless operation
  • Video pass-through
  • View More

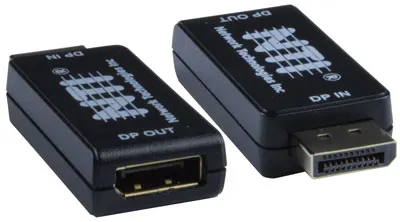

Video Switches & Converters DP-HP-MNTR-SRC Main Product Image
Video Switches & Converters DP-HP-MNTR-SRC Product Image 2

The DisplayPort Hotplug Maintainer emulates a DisplayPort display (sink device) by maintaining a hotplug signal between a video source and sink/display. When used with a KVM/video switch, the DP-HP-MNTR-SRC eliminates the need to reconfigure monitor settings when switching between computers.

  • Emulates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD) signal to the DisplayPort source device.

  • Designed for use with KVM/video switches.

    • When the input channel is deselected, the host computer connected to that input channel via the DisplayPort Hotplug Maintainer will recognize the monitor as connected.

    • Eliminates the need to reconfigure monitor settings – keeps screen settings while switching to another computer and then back.

  • Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (4096x2160 and 3840x2160) @60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @120Hz.

    • The Hotplug Maintainer is completely transparent.

    • Supports FreeSync.

  • DisplayPort features supported:

    • DisplayPort v1.4

      • Backwards compatible with DisplayPort 1.2/1.1

    • Multi-Stream Transport (MST)

    • 10-bit Deep Color

    • RGB, YCC 4:4:4, YCC 4:2:2

    • LPCM

    • HDR

    • High-bandwidth HBR3

      • Bandwidth up to 8.1Gbps per channel (32.4Gbps total)

  • Supports headless and video pass-through operations.

  • Compact design for easy installation and operation.

  • No power supply – powered by video source.

Key Features:

  • Maintains hotplug signal between source & display
  • Resolves screen resetting issues when using a DP switch
  • Headless operation
  • Video pass-through
  • DisplayPort v1.4/1.2/1.1

Data Sheets (PDF)

Product Downloads PDF Icon

DP-HP-MNTR-SRC Data Sheet

Part Numbers

Details

DP-HP-MNTR-SRC

DisplayPort Hotplug Maintainer
