VOPEX-C64K18GB-4V2

The VOPEX® 4K 18Gbps HDMI Splitter/Extender simultaneously distributes uncompressed Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video, multi-channel audio, RS232, and IR from one video source to up to four displays and speakers, each located up to 120m (394 Feet) away via CAT6/6a/7 cable.

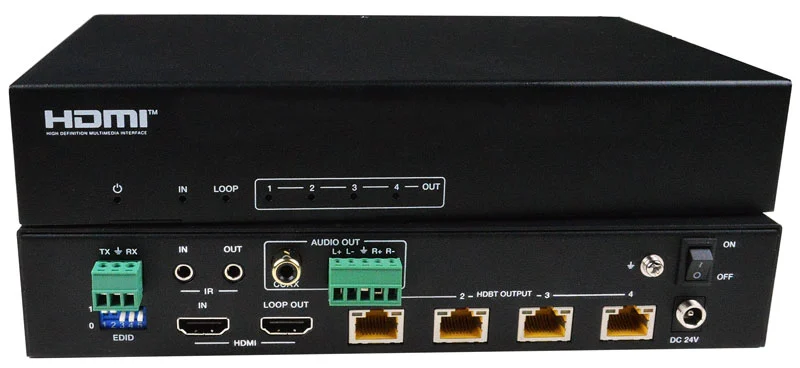

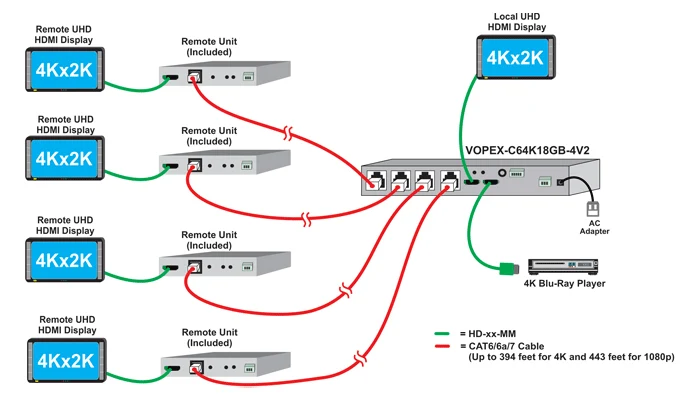

The VOPEX-C64K18GB-4V2 system consists of a 4K HDMI broadcast unit, which connects to the HDMI source and also supplies video to a local display via the HDMI loop output; and four included receivers for each remote 4K HDMI display and speakers. The units are interconnected by CAT6/6a/7 cable.

• Transmits an uncompressed HDMI signal over one CAT6/6a/7 cable to multiple display locations.

• Extend Ultra-HD 4Kx2K 60Hz 4:4:4 to 394 feet (120 meters).

• Extend 1080p and 1920x1200 to 443 feet (135 meters).

• Zero latency.

• Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).

• HDMI features supported:

• HDMI 2.0 compliant.

• Up to 36-bit Deep Color

• LPCM, Dolby Digital, Dolby TrueHD, DTS-HD, and DTS2

• RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0

• Bandwidth up to 18 Gbps

• 3D

• HDR10

• HDCP 2.2/1.4 compliant.

• Supports the DDC2B protocol.

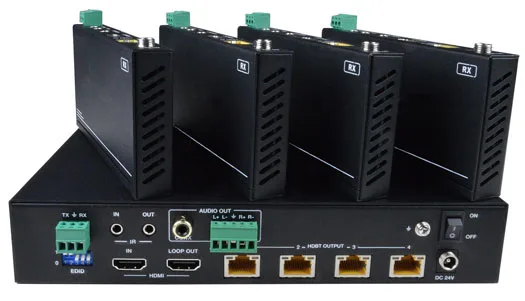

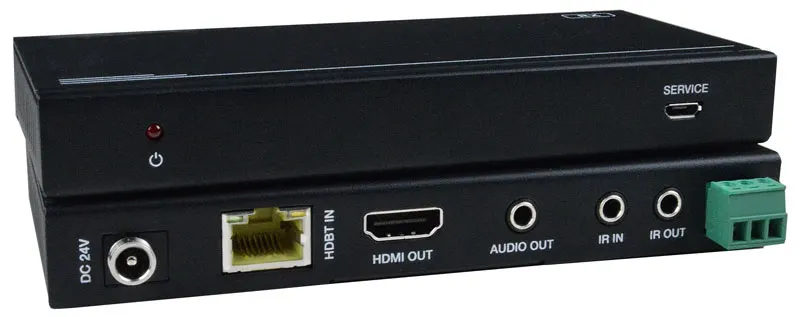

• Includes four receivers.

• The receivers do not require a power supply.

• Full Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per the installation.

• RS232 for configuration and control, pass-through, and firmware updates.

• Supports RS232 pass-through from transmitter to receiver or from receiver to transmitter.

• Baud rate: 115200 bps

• Built-in EDID table.

• Cascade units together to send video simultaneously to many receivers.

• Mounting brackets included for easy surface/wall mounting.

• Ideal for control rooms, digital signage, transportation and security where high quality video on multiple displays is needed.

Key Features:

• One Input to Four Outputs available
• Supports up to Ultra-HD 4Kx2K resolutions
• Extend via CAT6/6a/7 Cable up to 394 Feet
• Zero Latency
• 18Gbps Bandwidth
• HDMI 2.0
• No Power Supply Required for Receivers
