Key Features:

  • HDCP 1.4 compliant.
  • Built-in default EDID table.
  • Cascade two units together to send video simultaneously to 8 receivers.
  • Transmits an HDMI signal over CAT5e/6/6a/7 cable to multiple display locations.
  • Extend 1080p/1920x1200 to 131 feet (40 m) and 720p to 230 feet (70 m)
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • HDMI features supported: HDMI 1.4, Up to 36-bit Deep Color, RGB, YCbCr 4:4:4, YCbCr 4:2:2, LPCM, AC3, DTS, Dolby TrueHD, DTS-HD
  • Bandwidth up to 8.13 Gbps
  • Support for CEC (consumer electronic control) compatible device that is connected to the transmitter.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.
  • Receivers do not support CEC.
  • Supports the DDC2B protocol.

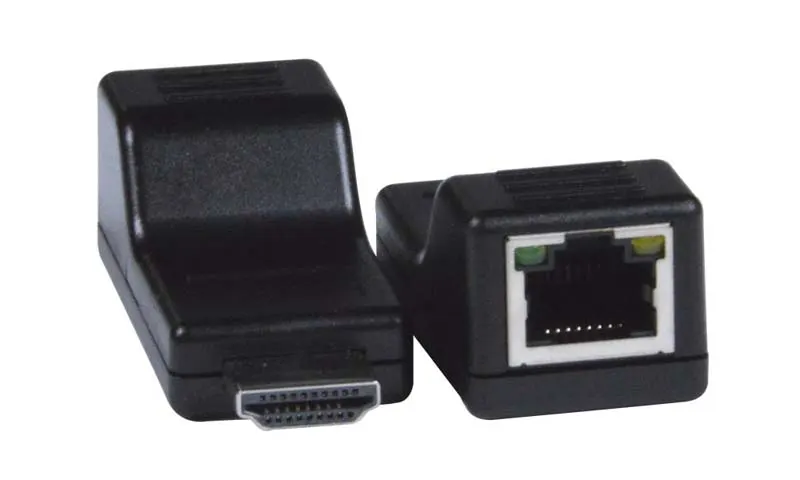

  • Includes four receivers: Compact design – allows for direct connection to remote display, no additional power supplies required.

Data Sheets (PDF)

Product Downloads PDF Icon

VOPEX-C5HD-4LC Data Sheet

Part Numbers

Details

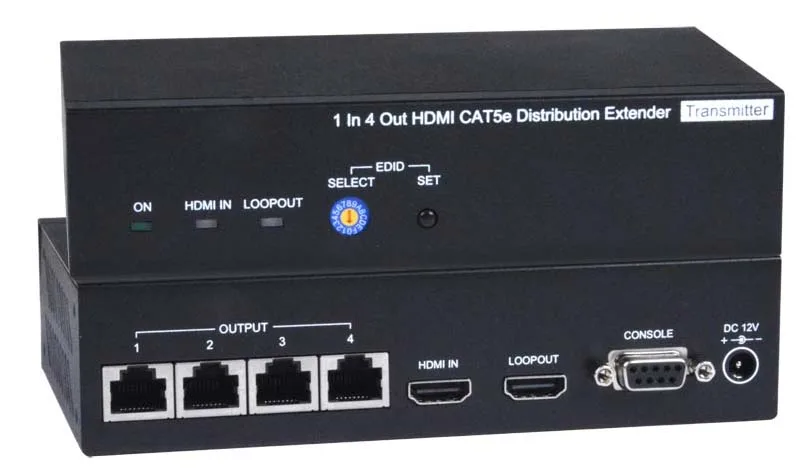

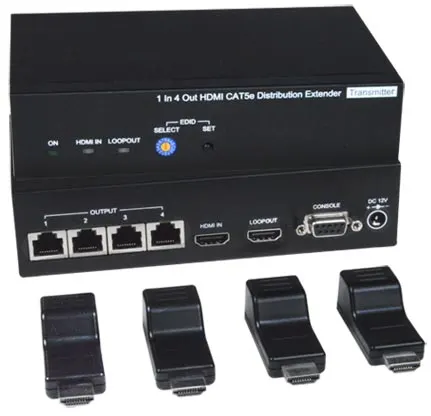

VOPEX-C5HD-4LC

Low-Cost HDMI 4-Port Splitter/Extender via CAT5e/6
