ST-IPFO4K18GB-LC
Product Overview

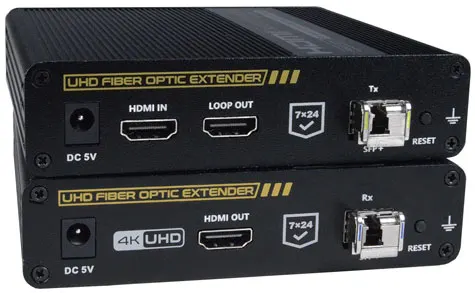

4K 18Gbps HDMI over IP Extender with IR via LC Singlemode/Multimode Fiber, upto 40km
Features Include:
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4
- Supports upto 40 km over 9μm singlemode LC fiber optic cable
- Supports upto 500 meters over 50μm OM2 multimode LC fiber optic cable
- View More
The XTENDEX® 4K 18Gbps HDMI Extender Over IP via Fiber Optic Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display, audio, IR, and RS232 up to 24.8 miles (40 kilometers) away from an HDMI source using a single LC singlemode fiber optic strand or 1,640 feet (500 meters) using LC multimode fiber optic cable.
Each 4K 18Gbps HDMI Extender Over IP consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via Fiber Optic Cable or a Point-to-Many connection via a 10G SFP network switch. Support for multiple transmitters requires a managed 10G SFP network switch.
Point-to-Point Conncetion
Point-to-Many Connection Using an Unmanaged 10G SFP Network Switch
Many-to-Many Connection Using a Managed 10G SFP Network Switch
Key Features:
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4
- Supports upto 40 km over 9μm singlemode LC fiber optic cable
- Supports upto 500 meters over 50μm OM2 multimode LC fiber optic cable
