ST-FODP14-MPO-200M
Product Overview
8K DisplayPort 1.4 Extender via One MPO Multimode Fiber Optic Cable (Extend up to 200m)
Features Include:
- Signal transmission via an 8- or 12-strand multimode 50-micron OM3 type B MPO male-to-male fiber optic cable.
- Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:4:4, Ultra-HD 4Kx2K resolutions to 3840x2160 @120Hz YUV 4:4:4, and HDTV resolutions to 1080p @240Hz.
- HDCP compliant.
- EDID pass-through for the support of any DisplayPort display device.
- View More

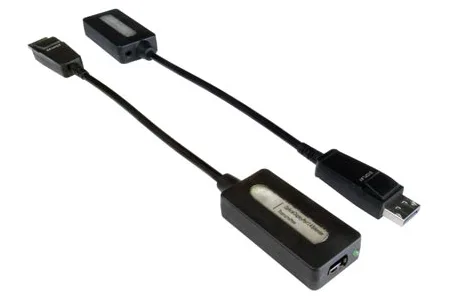

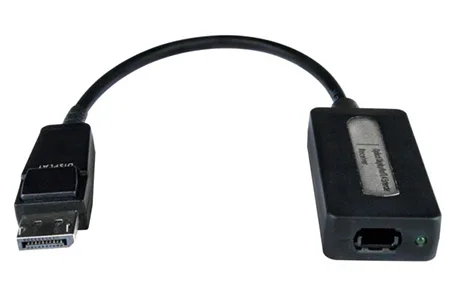

Extend an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 200 metres via fiber with the XTENDEX® ST-FODP14-MPO-200M. The XTENDEX® 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 200 metres via a male-to-male multimode OM3 type B MPO fiber optic cable (8- or 12-strand). Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.
DisplayPort features supported:
-
DisplayPort 1.4
-
Multi-Stream Transport (MST)
-
Up to 36-bit Deep Colour
-
LPCM
-
YCbCr 4:4:4, YCbCr 4:2:2, and RGB
-
Bandwidth up to 32.4 Gbps
Key Features:
- Signal transmission via an 8- or 12-strand multimode 50-micron OM3 type B MPO male-to-male fiber optic cable.
- Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:4:4, Ultra-HD 4Kx2K resolutions to 3840x2160 @120Hz YUV 4:4:4, and HDTV resolutions to 1080p @240Hz.
- HDCP compliant.
- EDID pass-through for the support of any DisplayPort display device.
- Compact design – connects directly to source/display.
- Cables can be installed in conduit prior to extender installation.
- Supports Plug-n-Play specifications.
- Low RFI/EMI for sensitive applications.
