ST-FODP14-MPO

Product Overview

8K DisplayPort 1.4 Extender via One 12-Strand MPO Multimode Fiber Optic Cable (Extend up to 300m)

Features Include:

  • Signal transmission via a 12-strand multimode 50-micron OM3 type B MPO female-to-female fiber optic cable
  • Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:2:2, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4 and 3840x2160 @120Hz YUV 4:2:2, and HDTV resolutions to 1080p @144Hz
  • HDCP compliant
  • EDID pass-through for the support of any DisplayPort display device
  • View More

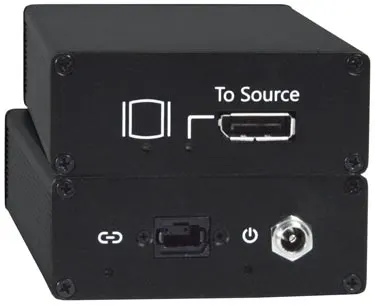

Video Extenders & Splitters ST-FODP14-MPO Main Product Image
Video Extenders & Splitters ST-FODP14-MPO Product Image 2

Extend an Ultra-HD 8K 4320p 30Hz DisplayPort display up to 300 metres via fiber. The XTENDEX® 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 300 metres via a 12-strand female-to-female multimode OM3 type B MPO fiber optic cable. Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.

DisplayPort features supported:

  • DisplayPort 1.4

  • Multi-Stream Transport (MST)

  • Up to 36-bit Deep Color

  • LPCM

  • YCbCr 4:4:4, YCbCr 4:2:2, and RGB

  • HDR

  • Bandwidth up to 23.76 Gbps



ST-FODP14-MPO Application Drawing

Key Features:

  • Signal transmission via a 12-strand multimode 50-micron OM3 type B MPO female-to-female fiber optic cable
  • Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:2:2, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4 and 3840x2160 @120Hz YUV 4:2:2, and HDTV resolutions to 1080p @144Hz
  • HDCP compliant
  • EDID pass-through for the support of any DisplayPort display device
  • Cables can be installed in conduit prior to extender installation
  • Supports Plug-n-Play specifications

Data Sheets (PDF)

Product Downloads PDF Icon

ST-FODP14-MPO Data Sheet

Product Downloads PDF Icon

ST-FODP14-MPO User Manual

Part Numbers

Details

ST-FODP14-MPO

8K DisplayPort 1.4 Extender via One 12-Strand MPO Multimode Fiber Optic Cable
