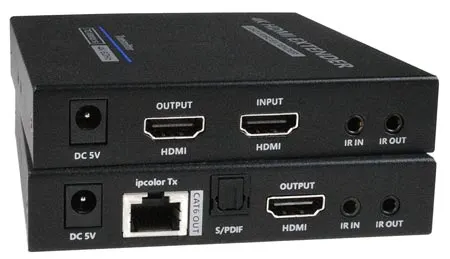

The ST-C64K18GB-230C 4K 18Gbps HDMI Extender transmits digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals up to 230 feet (70 meters) using one CAT6/6a/7 cable. Each video extender consists of a local unit that connects to an HDMI source and a local display via the HDMI loop output; and a remote unit that connects to an HDMI display. Up to 10 receivers can be cascaded for a Point-to-Many connection via CATx.

  • Transmits an HDMI signal over a single CAT6/6a/7 cable up to 230 feet (70 meters).
    • Cascade receivers to extend up to 2,300 feet and up to 10 remote monitors.
    • Zero latency.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz and 4096x2160 @24/25Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • HDMI features supported:
    • HDMI 2.0 compliant.
    • Up to 36-bit Deep Color
    • LPCM, Dolby Digital, and DTS
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
    • Bandwidth up to 18 Gbps
    • 3D
    • HDR10
  • HDCP 2.2 and 1.4 compliant.
  • Supports local and remote HDMI displays.
  • Built-in default EDID table.
  • Supports HDMI embedded digital audio and SPDIF digital audio output.
  • Bi-directional IR control from input and output locations.
  • Built-in lightning, surge, and ESD protection.
  • Mounting brackets included for easy surface/wall mounting



Key Features:

  • 4K 18Gbps HDMI extender via CAT 6/6a/7 upto 70m
  • Casdade upto 10 Receivers to extend upto 700m
  • HDCP 2.2 and 1.4 Compliant
  • Supports local and remote HDMI displays

Data Sheets (PDF)

Product Downloads PDF Icon

ST-C64K18GB-230C

Part Numbers

Details

ST-C64K18GB-230C

HDMI 4K 18Gbps extender via cat6/7 with cascadable receivers - Tranmit and Receive Set

ST-C64K18GB-R-230C

HDMI 4K 18Gbps extender via cat6/7 with cascadable receivers - Receiver only
