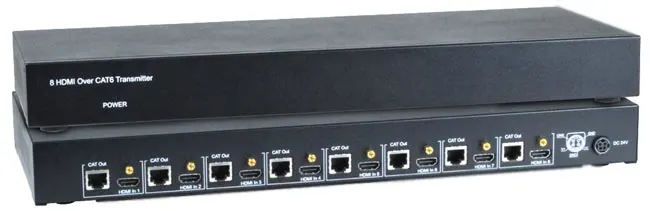

ST-C64K-328-L8-R

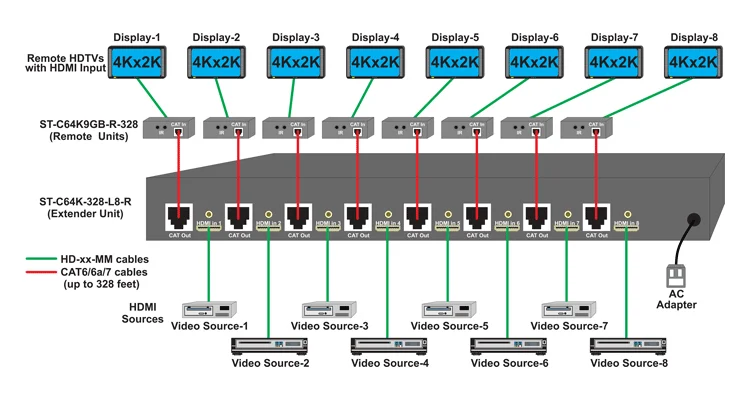

The XTENDEX® Multiple HDMI Extender with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 2096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.

• With CAT6/6a/7 (23 AWG): 328 feet.

• With CAT5e (24 AWG): 250 feet.

• Each input is directly connected to a corresponding output – point-to-point extension.

• Input 1 is connected to output 1, input 2 is connected to output 2, etc.

• HDCP compliant.

• Supports Power over Ethernet (PoE) – power supply not required at the remote unit.

• HDMI features supported:

• 4K x 2K - 3840x2160 and 4096x2160 resolutions

• 24/36-bit Deep Color

• x.v.Color

• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM

• 3D

• Bandwidth up to 300 MHz (10.2 Gbps)

• Support for CEC (consumer electronic control) compatible devices

• Lip Sync

• No loss of audio or video quality between the transmitter and remote units.

• Reads EDID from the connected display.

• Compact 1RU design.

• Rack mount kit included.

Key Features:

• Eight ports
• Supports up to Ultra-HD 4Kx2K resolutions
• Power over Ethernet provides power to connected receivers
• Extend via CATx Cable up to 328 Feet
• 1RU Rack Mount (Rack mount kit included)
