TVP-310

The TVP-310 is a 10.4" (1024 x 768 resolution) railway touch Panel PC purpose-built for rolling stock, driver desks, trackside monitoring, and demanding rail transit control systems. Powered by an Intel® Atom® x7433RE quad-core processor (up to 3.4 GHz) with Intel® UHD Graphics, it delivers efficient multi-tasking performance for real-time train data visualisation. The system supports up to 16GB of high-speed DDR5-4800 memory and up to 512GB of reliable mSATA SSD storage, ensuring reliable operation in mission-critical applications.

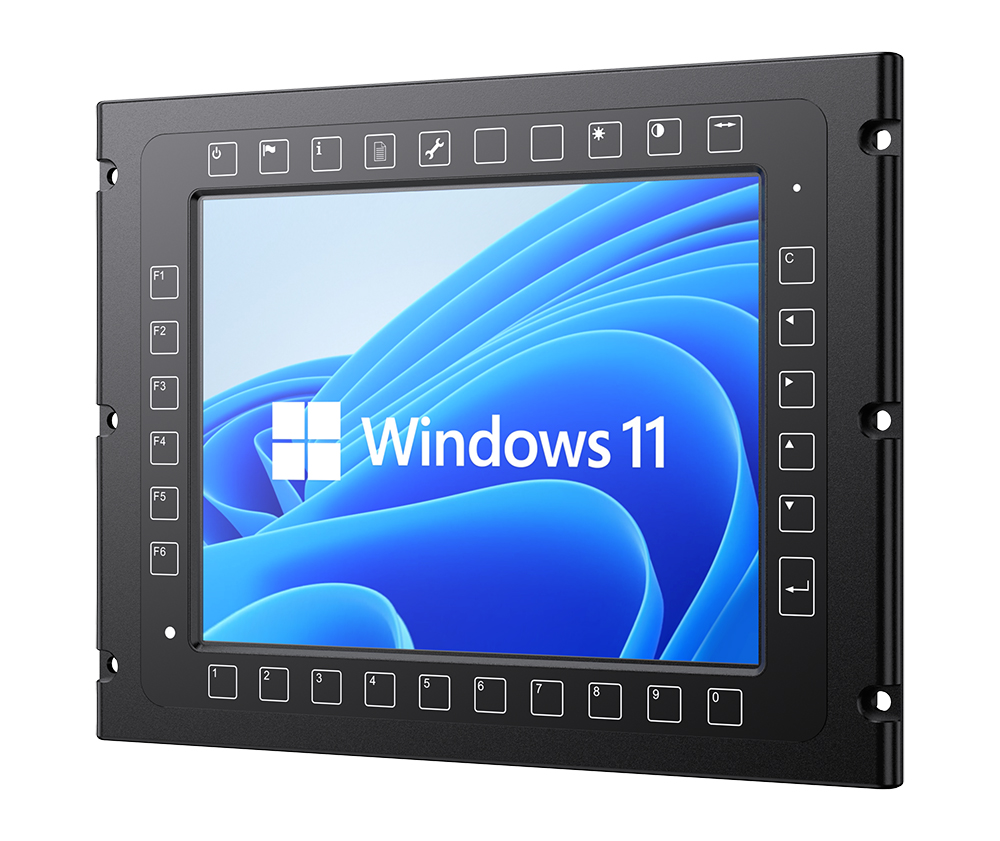

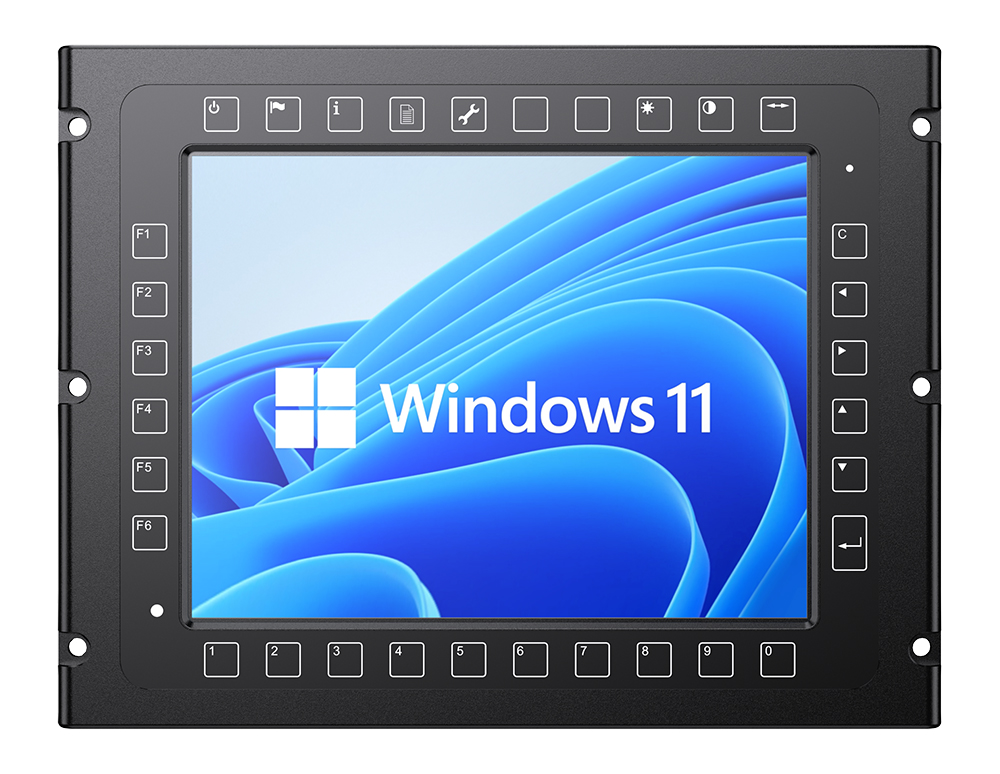

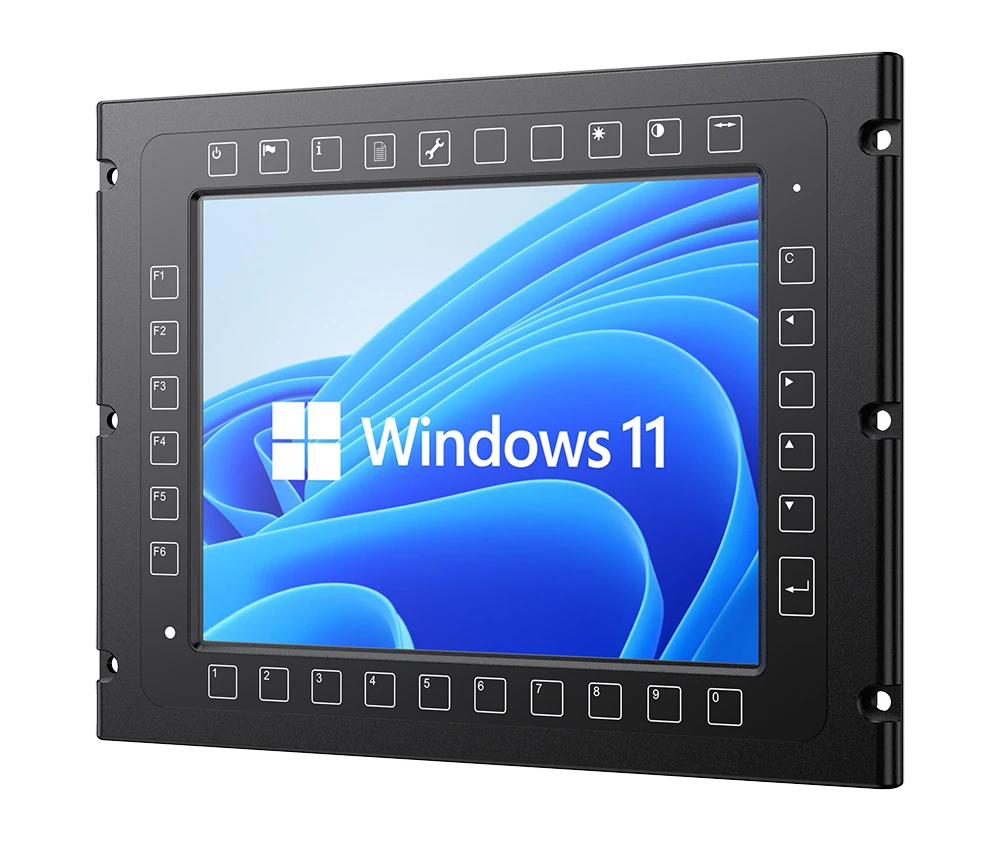

Engineered with a 10.4-inch industrial TFT LCD featuring a 4:3 aspect ratio, the display delivers a high-brightness output of 1000nits for seamless readability in bright sunlight and varying daylight conditions. It features a projected capacitive (PCAP) multi-touch touch screen, providing precise and responsive gesture control, complemented by a dedicated 32-key front keypad compliant with the international UIC 612-01 layout for standardized in-cab train driver operation.

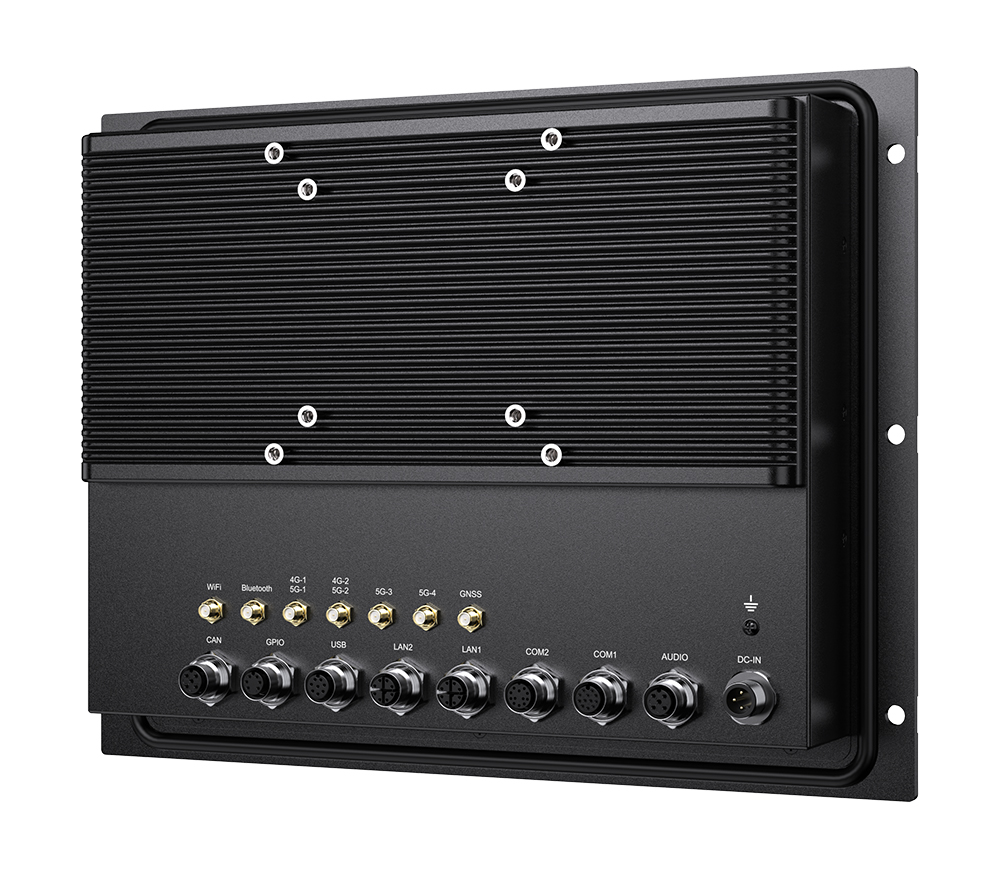

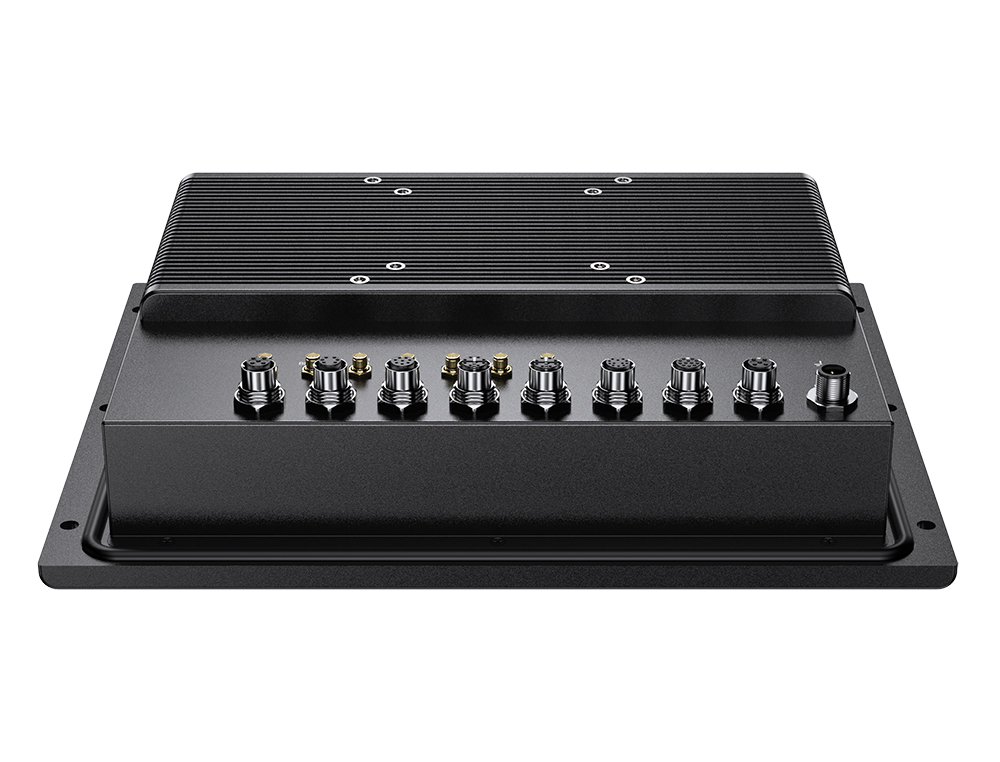

Designed to maintain robust signal and data integrity in high-vibration rolling stock environments, the unit is fitted entirely with aviation-grade M12 connectors. Field connectivity includes 2 x GbE LAN (M12), 2 x USB 2.0 (M12), 2 x COM ports (RS-232/422/485, M12), 2 x CAN2.0B ports (M12), 1 x 4-bit GPIO (M12), and 1 x Audio Out (M12). For fleet tracking and wireless communication, the unit accommodates up to 7 SMA antenna connectors supporting optional Wi-Fi 6E, Bluetooth 5.3, 4G/5G cellular connectivity, and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou).

Built to withstand harsh operational extremes, the TVP-310 features an IP65-rated front panel that protects internal electronics against moisture, dust ingress, and surface cleaning. Certified to EN 50155 standards and compliant with MIL-STD-810H Method 514.8 and 516.8 for shock and vibration resistance, the fanless aluminium and SGCC chassis ensures dependable 24/7 operation. It operates reliably across an extended temperature range of -40°C to 70°C and supports a standard 9 to 36 VDC power input, with an optional 43 to 160 VDC input to accommodate diverse railway power grids.

The unit supports modern industrial operating systems, including Windows 11 IoT Enterprise LTSC, Windows 10 IoT Enterprise LTSC, Windows 11 Pro, and Ubuntu Linux. Measuring 305 x 235 x 65 mm and weighing 3.6 kg, it offers versatile integration options with support for standard panel mounting and VESA mounting configurations. The TVP-310 provides rail operators and system integrators with a certified, robust, and future-proof Human-Machine Interface (HMI) computing solution.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• Intel® Atom® x7433RE Quad-Core Processor
• 10.4" (1024 x 768) TFT LCD with 1000nits Sunlight Readable Display
• Projected Capacitive Multi-Touch Screen
• Up to 16GB DDR5-4800 SO-DIMM Memory and up to 512GB mSATA SSD Storage
• Integrated 32-Key Keypad Compliant with UIC 612-01 Layout
• Comprehensive M12 Connectivity: 2 x GbE LAN, 2 x USB 2.0, 2 x COM (RS-232/422/485), 2 x CAN bus, 1 x GPIO, 1 x Audio Out
• Optional Wireless Expansion: Wi-Fi 6E, Bluetooth 5.3, 4G/5G, and Multi-Constellation GNSS
• Rugged IP65-Rated Front Bezel with Fanless Aluminium and SGCC Enclosure
• Compliant with EN 50155 and MIL-STD-810H Shock and Vibration Standards
• Wide 9 to 36 VDC Input (Optional 43 to 160 VDC Isolated Input)
• Wide Operating Temperature Range of -40°C to 70°C
