AVA-610AP Series

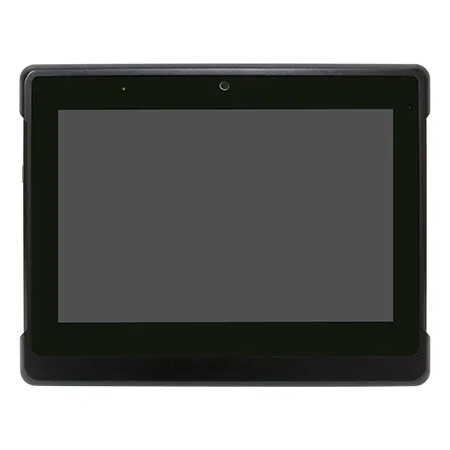

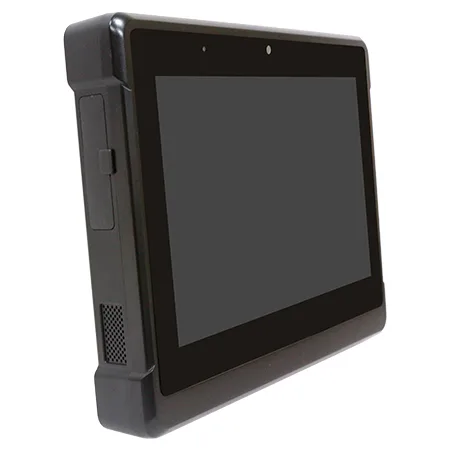

The AVA-610AP series is a 10.1” TFT-LCD true flat design panel PC, that is designed for in-vehicle applications and is powered by an NXP i.MX8M Quad Plus Processor. The AVA-610AP series is suitable for industries requiring heavy machinery or for work in harsh environments, such as, mining industry, cultivating machinery, engineering vehicles and warehouse forklifts.

The AVA-610AP series supports full IP66 dust & waterproof protection and meets MIL-STD-810H shock and vibration certification. It is constructed with an ultra-thin engineering plastic which makes it both rugged and lightweight at the same time. The AVA-610AP series also has optional sunlight readable solutions, including high brightness, AG/AR coating and optical bonding. It also supports wide range power input DC9~60V with optional adjustable ACC delay on/off ignition function and wide operating temperature range from -20~70°C. This makes the AVA-610AP series ideal for a range of applications, such as indoor/outdoor, bright sunlight, rain, snow and/or even rough terrain.

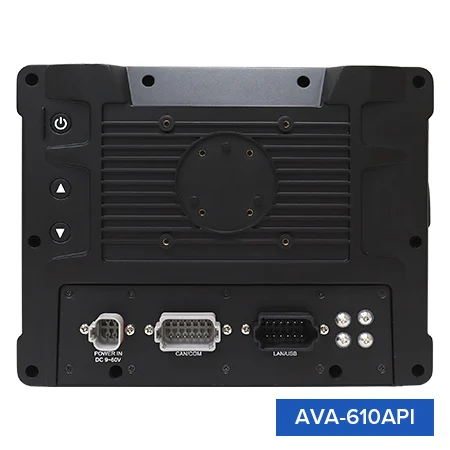

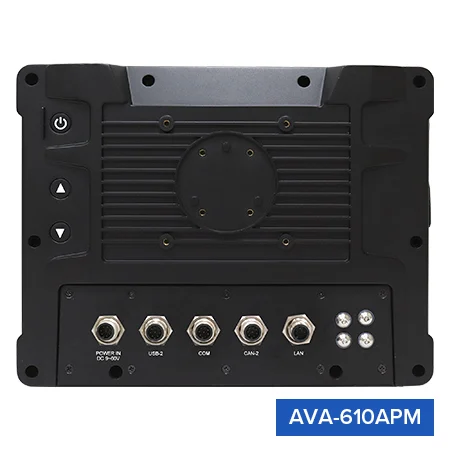

The AVA-610AP series provides 1 x CAN BUS, 1 x COM, 1 x LAN, 1 x USB2.0 on the rear side and 1 x USB2.0, 1 x SIM and 1 x SD slot on the slide side with a waterproof cover. To prevent water from entering, the M12 and ISOBUS connectors are IP66 waterproof as well. The AVA-610API is equipped with ISOBUS connectors and the AVA-610APM is equipped with M12 connectors.

This series also features optional expansion slots, such as miniPCIe for LTE, WI-FI, BT and GPS module, as well as, an optional 5MP camera and/or RFID module. With these features, the AVA-610AP series has the ability to provide real-time data transmission, monitoring, danger detection, managing track assets and more. Furthermore, it supports VESA mount and RAM mount so that it can fit into various types of vehicles, while limiting how much the driver's vision is impeded.

Key Features:

• 10.1” LCD Panel, optional high brightness LED backlight LCD
• Total IP66 with waterproof ISOBUS (AVA-610API) or M12 (AVA-610APM) connectors
• NXP i.MX8M Quad Plus Processor, 4 x Cortex-A53 1.8GHz
• Projected Capacitive touch screen
• Fanless design
• Rugged & lightweight ultra-thin engineering plastic enclosure
• 4G LPDDR4-3200MHz SDRAM onboard with 32GB eMMC storage
• Operating system: Android
• Wide range DC 9~60V power input
• CE/FCC/E Mark
