The ViTAM-815B is a 15” (1024 x 768) fully sealed IP66/69K Stainless Steel Panel PC solution. Just like other models in the ViTAM series, the ViTAM-815B has a wide range of rugged/hygienic features and customisable options. These features make it ideal for a wide variety of applications where hygiene and sanitation is a requirement, including food and beverage processing & manufacturing, pharmaceutical manufacturing & packaging, biotechnology and cosmetics manufacturing.

This new generation Panel PC is powered by an Intel Celeron J6412 processor with integrated graphics processing. With this processor and support for Windows 10 & 11, the ViTAM-815B is able to offer a great balance between performance, quality and cost.

The ViTAM-815B is fully enclosed with SUS304 (optional SUS316) stainless steel which provides anti-corrosion, anti-bacterial, and anti-oxidation protection, helping to prevent contamination, even when it is exposed to harsh conditions. The stainless steel construction also makes the chassis easy to clean (capable of withstanding high-pressure cleaning), increases the life cycle of the chassis due to its rugged nature, and helps to lower the cost of maintenance. The ViTAM-815B also comes with IP66/69K water and dust protection, a fanless design, and M12 connectors for the I/O ports, which helps to prevent any water, dirt or grime entering the system.

The 15” TFT-LCD (1024 x 768) is seamlessly integrated into the chassis with a true flat front bezel design. The ViTAM-815B also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection. Optional high brightness features also help to make the screen visible in increased sunlight areas. It is also able to operate under a wide temperature range (0~50°C) and has a wide power input range of DC 9~36V.

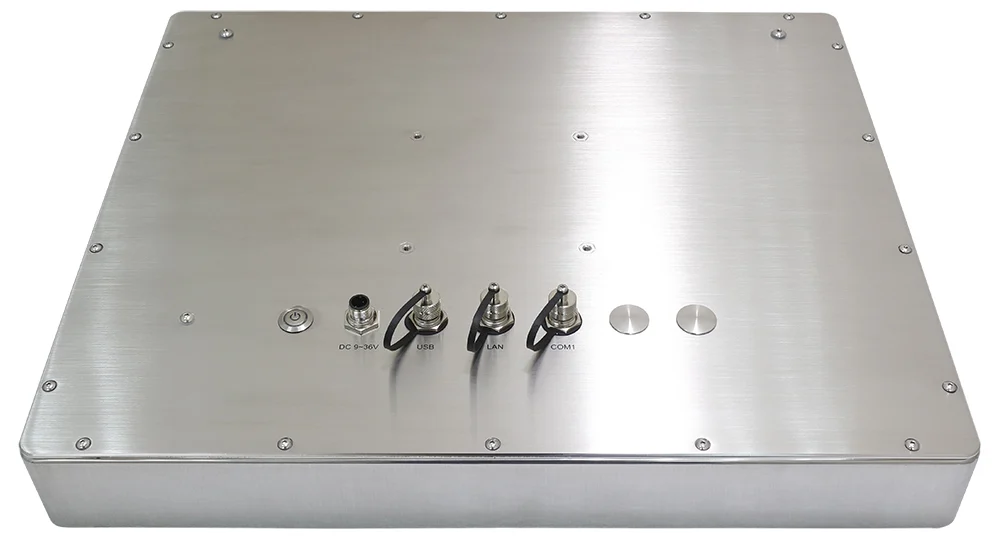

The ViTAM-815B features the following I/O, 1 x M12 supporting 2 x USB 2.0, 1 x M12 COM1, RS-232/422/485 (RS-232 default), and 1 x M12 GbE LAN. It is also extremely adaptable, with a range of additional I/O options available to suit your needs, as well as an RFID module option to help make operation more efficient. It also offers a range of versatile mounting solutions including, floor stands, swing arms, wall mounts, desktop mounts, Yoke mounts and VESA mounts, making it suitable for most applications.

The rugged design of the ViTAM-815B, along with its performance and adaptability, makes this series an ideal solution for a wide range of Food and Beverage applications.

Key Features:

  • 15" TFT-LCD Projected Capacitive / Resistive Touch
  • Intel Celeron J6412 Processor
  • IP66/IP69K Rated with M12 Connectors
  • Touch on/off Button on the Side Edge for Hygienic Cleaning

Data Sheets (PDF)

Product Downloads PDF Icon

ViTAM-815B Series Data Sheet

Product Downloads PDF Icon

ViTAM-x15 Series Yoke Mounting Kit Technical Drawing

Product Downloads PDF Icon

W-101 Technical Drawing

Part Numbers



15inch 1024x768 fanless IP66/IP69K Stainless Steel 304 PanelPC, Intel Celeron J6412 2GHz processor, proj cap touch, 2 USB2.0, Gbe, 1 ser, hdd bay, 1xM.2, 9-36VDC input


15inch 1024x768 fanless IP66/IP69K Stainless Steel 304 PanelPC, Intel Celeron J6412 2GHz processor, resistive touch, 2 USB2.0, Gbe, 1 ser, hdd bay, 1xM.2, 9-36VDC input




ViTAM-x15 Series Yoke Mounting Kit


Stainless Steel VESA 100x100 Mounting Kit

Other Options



Upgrade 15inch stainless steel 304 stainless steel 316L for fully sealed APC-3593/3597B/3595/VITAM-x15


Upgrade VITAM-x15 to 1000nits sunlight readable with optical bonding
