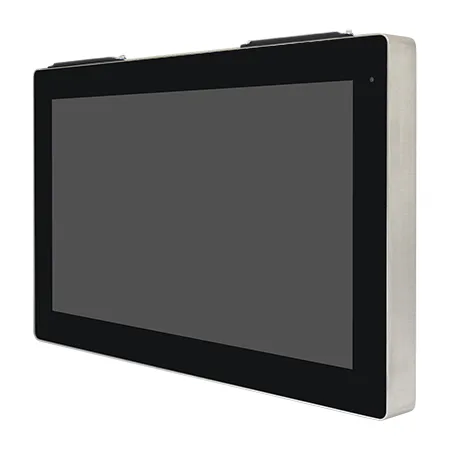

PhanTAM-916C

The PhanTAM-916C improves on previous stainless steel solutions, with an updated Intel 11th Gen. Core i3(Dual Core)/i5(Quad Core) BGA type processor, updated ultra slim front frame design, special hygienic bolts on rear case, the ability to be used in landscape or portrait mode, and a waterproof antenna cover, which removes the risk of bending/breaking antennas.

Just like the ViTAM series, the PhanTAM series is designed for a wide variety of industrial applications where sanitation is of serious concern, including food and beverage manufacturing, pharmaceutical industry and clean rooms. The PhanTAM series offers a highly protective panel solution, going beyond the basic standard, by achieving IP66 and IP69K-certified protection with M12 connectors.

The 304 (or optional 316) fully enclosed stainless steel chassis of the PhanTAM series makes it an ideal option for the food and beverage manufacturing industry due to its slim design, high corrosion resistance, and germ resistance, helping to prevent any bacterial contamination. Stainless steel also makes the chassis easy to clean (capable of withstanding high-pressure cleaning), increases the life cycle of the chassis due to its rugged nature, and helps to lower the cost of maintenance. The addition of new hygienic bolts with blue silicone rubber o-rings, further helps to prevent water, dust, and even bacteria accumulation, while still allowing for adaptability with mounting options.

The PhanTAM series comes in a modern ultra-thin frame, which not only improves the design, but also helps to reduce the weight of the system. The addition of waterproof antenna covers, allows companies to make use of a range of antenna options (4G LTE, 5G, BT & Wi-Fi), while not having to worry about bending/breaking antennas. This further improves storage options, and makes cleaning easier as well.

The fanless design of the PhanTAM series makes it easier to maintain the equipment and further helps to prevent the accumulation of dust. The optional PCAP touch screen with 7H anti-scratch surface helps to improve usability, while also providing the screen with tough protection. Optional high brightness features also help to make the screen visible in increased sunlight areas.

The PhanTAM series is extremely adaptable, with a range of I/O and RFID options available to suit your needs, including a HDMI output allowing users to connect a second screen. The PhanTAM series also offers a range of versatile mounting solutions including, floor stands, swing arms, wall mounts, desktop mounts, and VESA mounts, making them suitable for most applications. The PhanTAM can also be mounted in either landscape mode or portrait mode, making it even more adaptable to a range of applications.

Key Features:

• 15.6" New Generation Stainless Steel Panel PC
• 11th Gen. Intel Core i3/i5 BGA type Processor

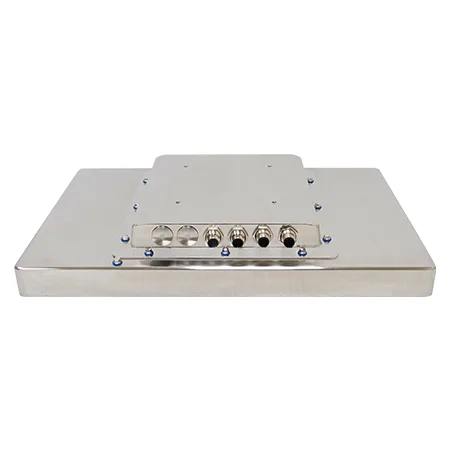

• IP66/IP69K Rated with M12 Connectors
• Optional Resistive or Projected Capacitive Touch
• True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)

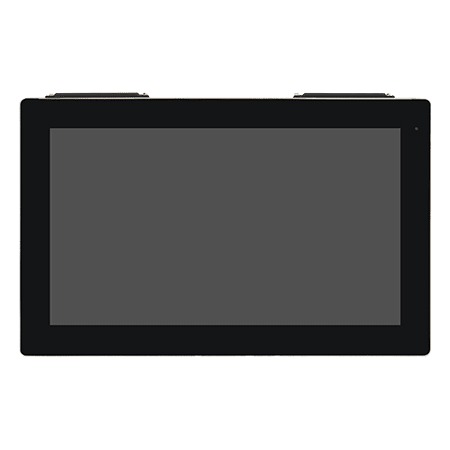

• Ultra Slim Front Frame Design
• Special Hygienic Bolts on Rear Case
• Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
• Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Swing ARM
