ARCHMI-S-912D Series

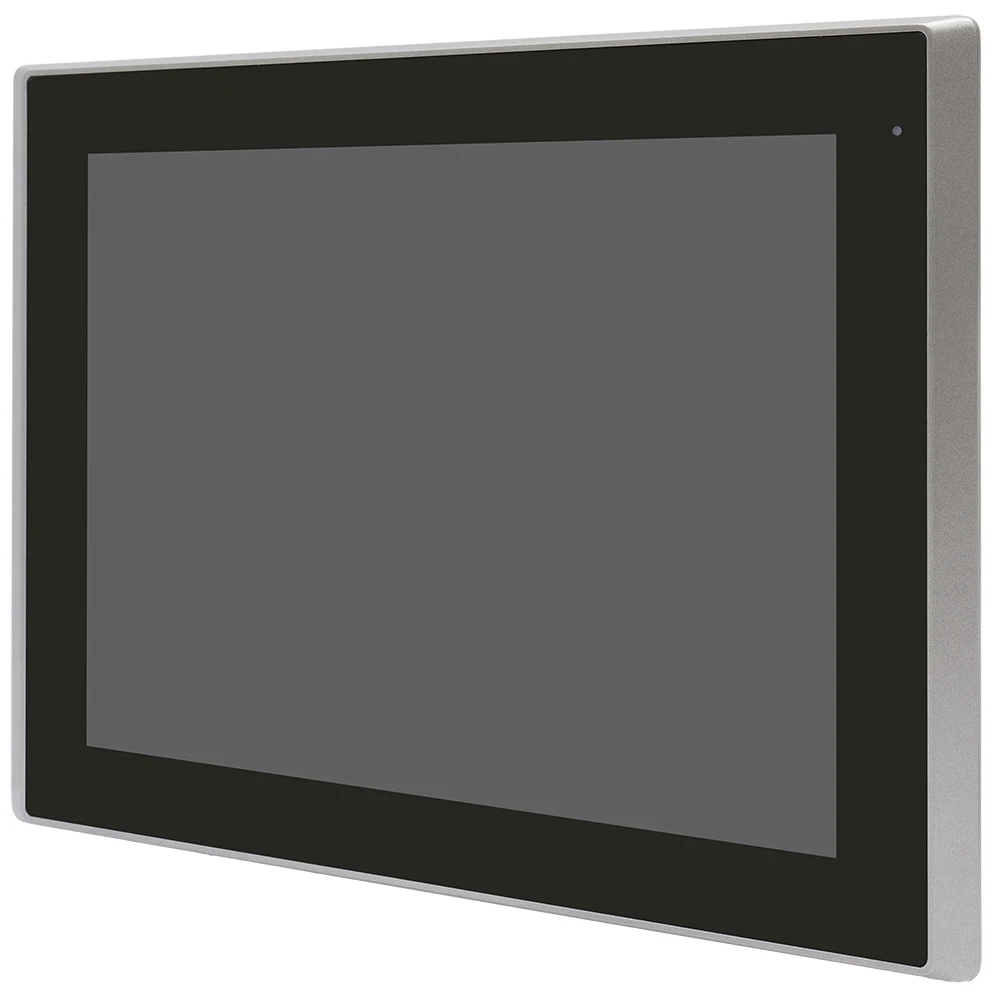

The ARCHMI-S-912D series is a 12.1” (800 x 600 (optional 1024 x 768) resolution) industrial touch screen Panel PC with a rugged/fanless design and range of features ideal for a variety of applications. It features a 12th Gen. Intel Core i3-1215U / i5-1235U Processor with up to 32GB of DDR4 SO-DIMM RAM. It also supports Windows 10/11 and Linux making it suitable for both current and future applications.

The IP66 rated aluminium front panel provides protection against dust, dirt, grime and water that might cause damage to the system. The ARCHMI-S-912D also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-S-912D series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

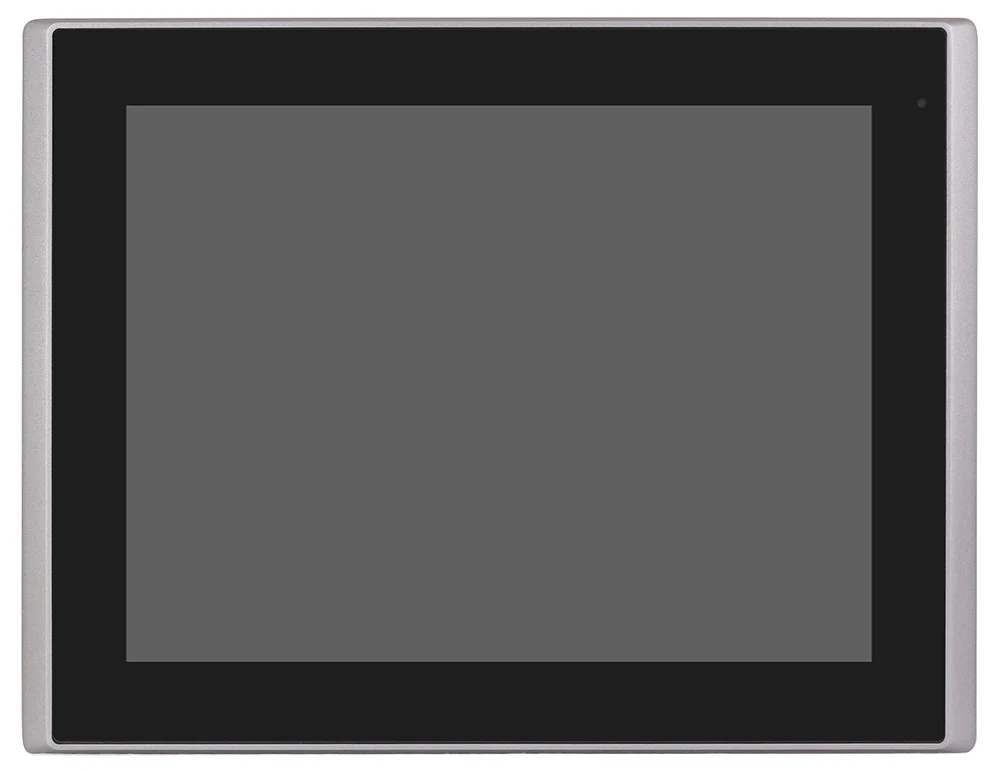

The ARCHMI-S-912D features a 12.1” TFT-LCD with a 800 x 600 (optional 1024 x 768) resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection and multi-touch functionality. Optional auto dimming, 1000nits high brightness, optical bonding, and AR coating makes the ARCHMI-S-912D perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, touch screen kiosks and ATMs.

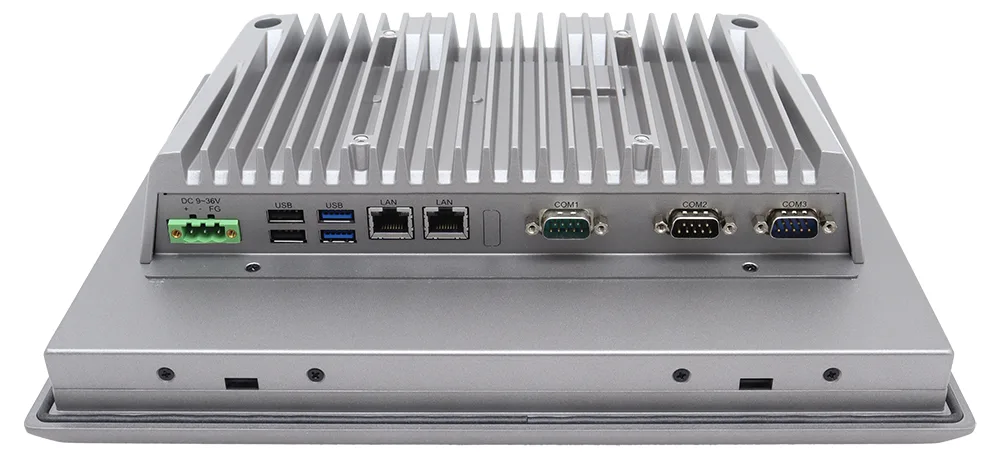

The ARCHMI-S-912D includes: 2 x USB 3.2, 2 x USB 2.0, 1 x RS-232, 2 x RS-232/422/485, 2 x LAN ports as well as a HDMI port which enables users to connect an additional monitor when required. It also has support for expansion via 1 x M.2 E-Key slot and 1 x M.2 B-Key slot, for further connectivity including 4G/5G, WiFi & Bluetooth.

The ARCHMI-S-912D has a wide operating temperature range of 0~50˚C (or -20~60˚C optional), making it an ideal solution for harsh environments with extreme temperatures. It also features a wide power input range of DC 9~36V. It can also be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-S-912D ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, kiosks and warehousing.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 12.1" TFT-LCD Industrial Panel PC
• 12th Gen. Intel Core i3-1215U / i5-1235U Processor (Alder lake-P)
• Wide Operating Temperature Range: 0~50˚C (or -20~60˚C optional)
• IP66 Compliant Aluminium Front Bezel
• Supports 2 x DDR4 SO-DIMM Socket, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 800 x 600 (optional 1024 x 768) Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 2 x RS-232/422/485 + 1 x RS-232
• 1 x HDMI Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via M.2 B-Key and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
