UNIMUX-DP4K-2DH

Product Overview

2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub

Features Include:

  • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • EDID pass-through supported.
  • Supports resolutions up to Ultra-HD 4Kx2K 60Hz 4:4:4
  • Quick and easy plug-and-play installation - no drivers required.
  • View More

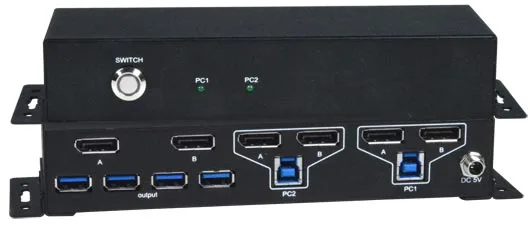

KVM Switches UNIMUX-DP4K-2DH Main Product Image
KVM Switches UNIMUX-DP4K-2DH Product Image 2

The UNIMUX™ Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.0 Hub allows a user to control two dual-head Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and two 4K DisplayPort monitors.

Take a look at the data sheet for more technical information about the UNIMUX-DP4K-2DH and/or contact us via the “Request A Quote” tab.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.

  • DisplayPort features supported:

    • DisplayPort 1.2

    • Dolby True HD, DTS HD Master, and stereo audio.

    • YCbCr 4:4:4, YCbCr 4:2:2, and RGB.

    • Up to 12-bit Color

    • Bandwidth up to 21.6 Gbps

  • HDCP compliant.

  • Compatible with dual-head USB computers (PC and MAC).

  • Control the switch through the front panel button or keyboard commands.

    • Keyboard commands available on Windows computers only.

  • Four transparent USB 3.0 ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.

    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.

    • Backwards compatible with USB 2.0/1.1.

  • EDID pass-through supported.

  • Quick and easy plug-and-play installation – no drivers required.

  • Integrated mounting brackets for easy surface/wall mounting.



NOTE: When switching between computers, the screen layout will not be as you left it - all open windows will be pushed to the top left corner of the main display.

Reason: The Hot Plug Detect (HPD) signal is no longer detected by the computer when switching to the other computer and then back. The lost HPD signal prompts the computer's operating system to move the icons to the primary screen desktop. Use Interworld Electronics’ DisplayPort Hotplug Maintainer to resolve the screen resetting issue.



2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.0 Hub



2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.0 Hub

Key Features:

  • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • EDID pass-through supported.
  • Supports resolutions up to Ultra-HD 4Kx2K 60Hz 4:4:4
  • Quick and easy plug-and-play installation - no drivers required.
  • Dual Head
  • 21.6 Gbps
  • DisplayPort 1.2, USB 3.0

Data Sheets (PDF)

Product Downloads PDF Icon

UNIMUX-DP4K-2DH Data Sheet

Part Numbers

Details

UNIMUX-DP4K-2DH

2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
