BOXER-6617-ADN

Product Overview

Compact Fanless Embedded Computer, Intel® Processor N-series, Super Wide Temp. -20~70°C

Features Include:

  • Intel® Core™ i3 Processor N/Intel® Atom® Processor X/Intel® Processor N-series SoC (formerly Alder Lake-N)
  • 1 x DDR5 4800MHz SODIMM
  • 2 x 2.5GbE
  • M.2 2280 M-Key/M.2 2230 E-Key
  • View More

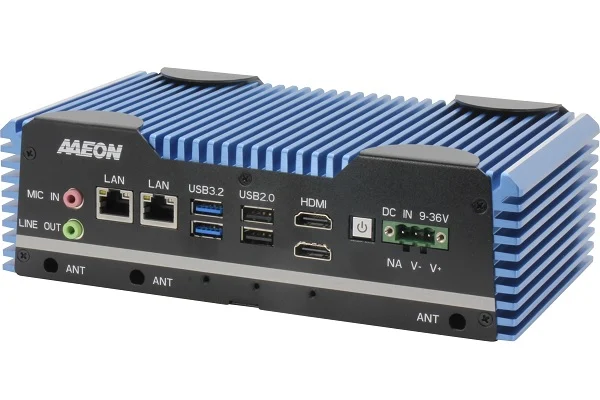

Embedded Box PCs BOXER-6617-ADN Main Product Image
Embedded Box PCs BOXER-6617-ADN Product Image 2

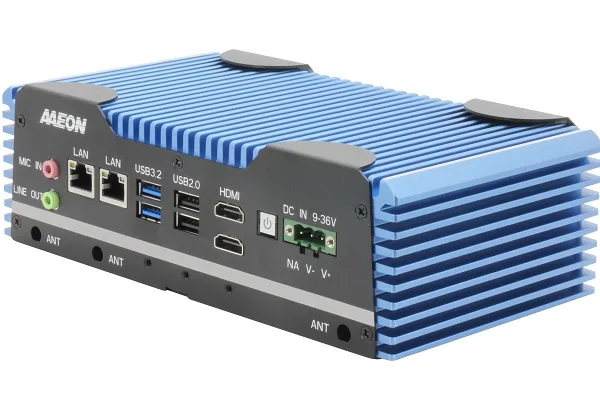

Embedded Box PCs BOXER-6617-ADN Product Image 3

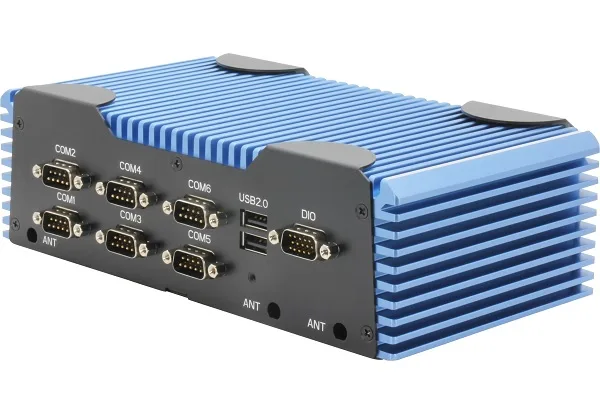

Embedded Box PCs BOXER-6617-ADN Product Image 4

Mobilising the potential of the Intel® Core™ i3-N305, Intel Atom® x7211E, and Intel® Processor N-series platforms, the new BOXER-6617-ADN represents the pinnacle of robust, efficient industrial computing. With Intel® architecture, a robust chassis design, dynamic expansion, and a library of high-speed interfaces, it offers a rugged, fanless solution that ensures elite and reliable operation for a wide range of applications, including AMR, smart city, and CNC devices, even in the harshest environments.

Low Power, High Performance Processing

The BOXER-6617-ADN's efficient yet potent processor architecture is complemented by SODIMM-based high-bandwidth DDR5 memory. This combination enables enhanced data analysis and decision-making while maintaining a lower power consumption rate. As a result, it not only delivers high-performance solutions but also reduces ongoing costs when used in large-scale automation and smart city projects.

Dynamic Expansion for Wireless Communication

Utilising SSD-based storage through a 2.5" SATA HDD and an M.2 M-Key slot, the BOXER-6617-ADN removes development constraints, enabling the implementation of complex algorithms required for edge-based smart city applications. Furthermore, the BOXER-6617-ADN's M.2 E and B-Key slots support 5G, Wi-Fi, and LTE connectivity, facilitating seamless edge-to-cloud data exchange and wireless communication with industrial machinery when deployed, as in industrial automation.

Robust Hardware for an Extended Lifecycle

Featuring an extensive temperature range of -20°C ~ 70°C, a wide 9V ~ 36V DC input range with circuit protection, and engineered to withstand high levels of vibration and shock, the BOXER-6617-ADN is built for tough settings, making it the perfect choice for factory deployment. Its longevity is further enhanced by its fanless chassis design and lockable I/O connectors. This design not only makes it impervious to dust but also improves operational durability and fortifies it against environmental wear and tear.

Compact Connectivity for AMR Accuracy

At just 214mm x 115.5mm x 65.8mm, the BOXER-6617-ADN is compact. Despite this, it houses a complete array of interfaces for high-speed communication with external devices. Six DB-9 ports offer RS-232/422/485, while dual 2.5GbE LAN, dual HDMI, and a 10-pin terminal block offer the communication protocols needed for precise AMR functionality, while the system’s flexible storage provides the resources for AGV route mapping.

Key Features:

  • Intel® Core™ i3 Processor N/Intel® Atom® Processor X/Intel® Processor N-series SoC (formerly Alder Lake-N)
  • 1 x DDR5 4800MHz SODIMM
  • 2 x 2.5GbE
  • M.2 2280 M-Key/M.2 2230 E-Key
  • M.2 3052 B-Key for 5G
  • SuperSpeed+ USB 3.2 Gen 2
  • Onboard TPM 2.0
  • Wide Range 9 ~ 36V DC input
  • Super Wide Operating Temperature -20~70°C

Data Sheets (PDF)

Product Downloads PDF Icon

BOXER-6617-ADN Data Sheet

Part Numbers

Details

BOXER-6617-ADN-A1

BOXER-6617 Fanless Embedded PC Intel N50, 6xser, 2xUSB3.2, 4xUSB2, 2x2.5GbE, 2xHDMI, audio, ssd bay, 3xM.2, 9-36VDC input

BOXER-6617-ADN-A2

BOXER-6617 Fanless Embedded PC Intel N97, 6xser, 2xUSB3.2, 4xUSB2, 2x2.5GbE, 2xHDMI, audio, ssd bay, 3xM.2, 9-36VDC input

BOXER-6617-ADN-A3

BOXER-6617 Fanless Embedded PC Intel Ni3-N305, 6xser, 2xUSB3.2, 4xUSB2, 2x2.5GbE, 2xHDMI, audio, ssd bay, 3xM.2, 9-36VDC input

BOXER-6617-ADN-A4

BOXER-6617 Fanless Embedded PC Intel Atom x7211E, 6xser, 2xUSB3.2, 4xUSB2, 2x2.5GbE, 2xHDMI, audio, ssd bay, 3xM.2, 9-36VDC input
