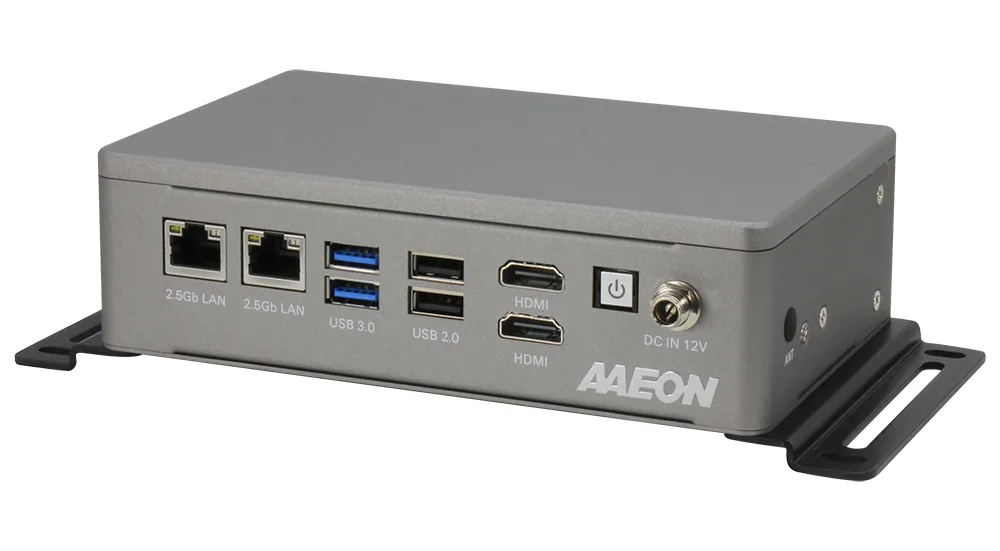

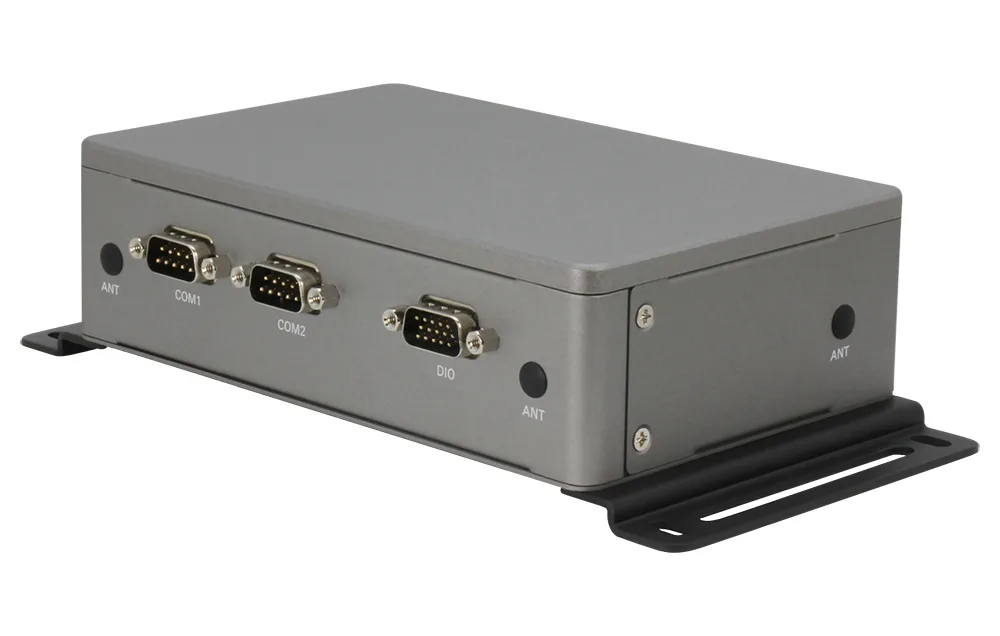

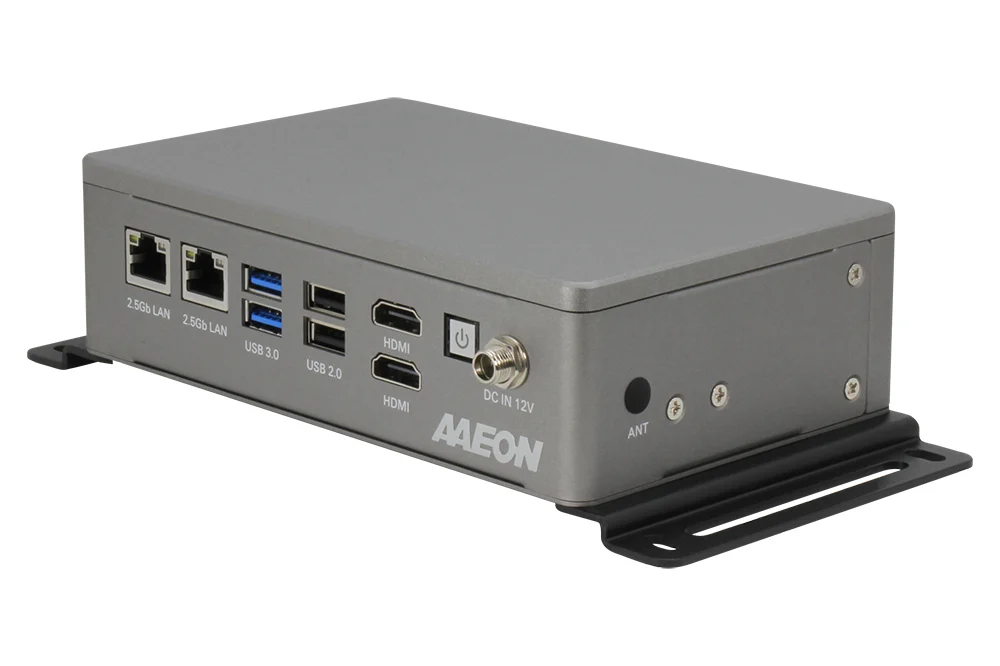

BOXER-6406U-ADN

Providing reliable performance in demanding environments the BOXER-6406U-ADN is an ultra-slim fanless industrial box PC. Engineered for unwavering reliability in space-constrained industrial applications, the BOXER-6406U-ADN is a powerful yet remarkably compact fanless embedded system. At its heart lies the optional Intel Atom® Processor X-series or N-series, delivering robust performance with low power consumption for a wide range of tasks. It also features a DDR5 SODIMM slot, with up to 32GB of memory, and support for Windows 10/11 and Linux.

Despite its slim profile, the BOXER-6406U-ADN doesn't compromise on connectivity. Featuring a rich array of I/O ports, it offers seamless integration with various industrial peripherals and devices. This includes 2 x USB3.2 Gen 2, 2 x USB2.0, 8 x DIO & 2 x serial (RS-232/422/485) ports for connecting sensors, cameras, and other accessories, as well as 2 x 2.5GbE LAN ports for robust network communication and data transfer. Display connectivity is also well-catered for, with 2 x HDMI ports ideal for a range of applications including HMIs, digital signage, and monitoring systems.

For enhanced flexibility and application-specific customisation, the BOXER-6406U-ADN offers significant expansion capabilities. An M.2 slot supports high-speed NVMe or SATA SSDs for ample storage and rapid data access. Additionally, 1 x M.2 2230 E-Key, and 1x Full-Size Mini Card slots allow for the integration of wireless modules (Wi-Fi, Bluetooth, 4G/LTE) or other expansion cards, allowing the system to be customised to specific communication or functional requirements.

Built to withstand the rigors of industrial settings, the BOXER-6406U-ADN boasts a rugged design. Fanless operation not only reduces the risk of dust and debris ingress but also contributes to enhanced longevity and lower maintenance costs, with shock and vibration resistance crucial for continuous operation in critical environments. The wide operating temperature range (-20°C~60°C) ensures reliable performance even in challenging thermal environments, making it suitable for deployment in diverse industrial applications, from factory automation and transportation to kiosks and environmental monitoring.

Its compact form factor (164mm x 104.5mm 47mm) makes it easy to deploy and integrate into applications with tight spaces. With its blend of performance, versatility, and durability the BOXER-6406U-ADN is an ideal solution for a wide range of industrial applications, including edge computing. Take a look at the data sheet or request a quote to learn more.

Key Features:

• Intel Atom® Processor X-series/N-series
• DDR5 4800MHz via SODIMM, up to 32GB
• 1 x 2.5" SATA HDD/SSD, 1 x M.2 2280 M-Key (2 x PCIe Gen 3)
• 1 x M.2 2230 E-Key, 1x Full-Size Mini Card
• 2 x USB3.2 Gen 2, 2 x USB2.0
• 8 x DIO
• 2 x serial (RS-232/422/485)
• 2 x HDMI
• Onboard TPM 2.0
• Compact Size (164mm x 104.5mm 47mm)
• Wide Range Operating Temperature (-20°C~60°C)
• Windows 10/11, Linux Support
