AVS-530 Series

Product Overview

Intel 13th/12th Core i3/i5/i7/i9 Processor Industrial Machine Vision System, Up To 64GB Memory, I/O & Expansion Options

Features Include:

  • Intel Core 13th/12th Gen i3/i5/i7/i9 Processors
  • 2 x DDR5 SO-DIMM, up to 64GB
  • Fanless Design
  • 4 x Serial ports RS-232/422/485
  • View More

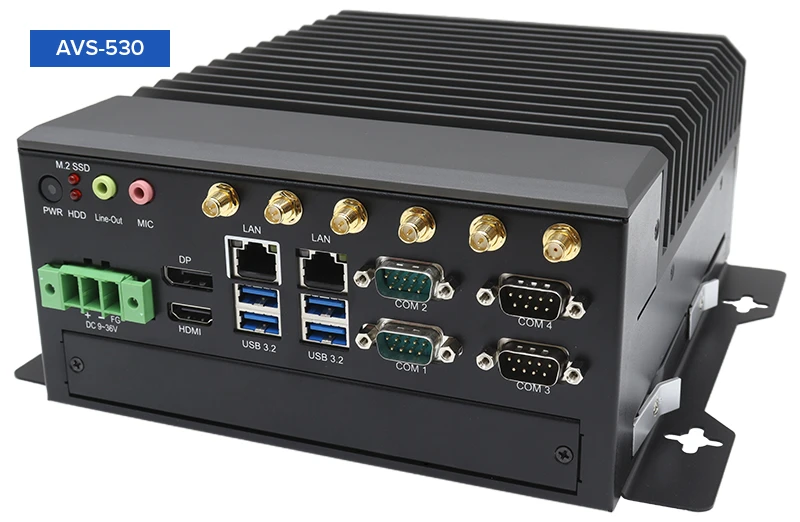

Embedded Box PCs AVS-530 Series Main Product Image
Embedded Box PCs AVS-530 Series Product Image 2

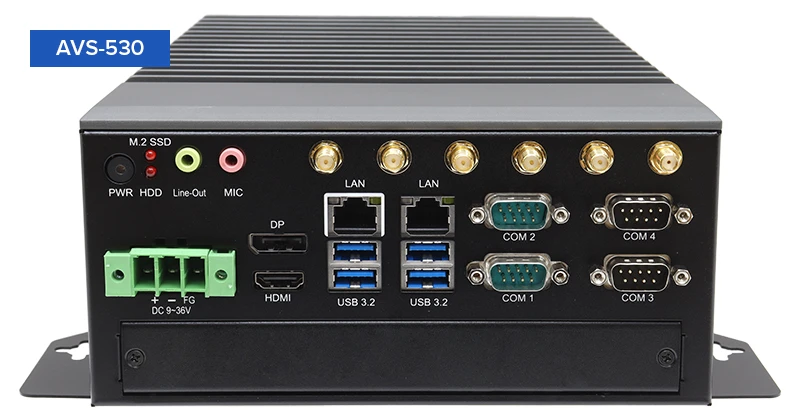

Embedded Box PCs AVS-530 Series Product Image 3

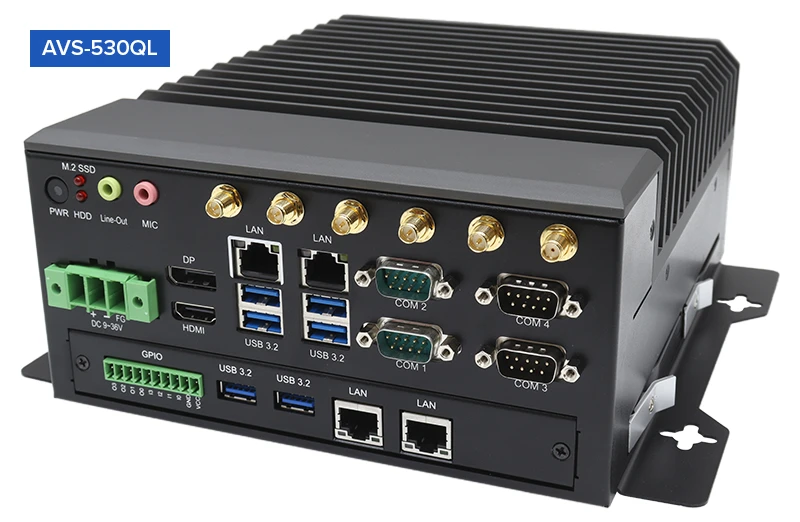

Embedded Box PCs AVS-530 Series Product Image 4

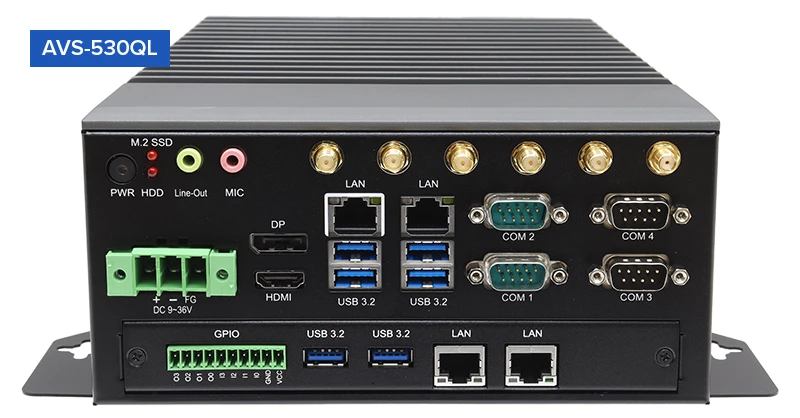

Embedded Box PCs AVS-530 Series Product Image 5

The AVS-530 is an Industrial Box PC that is purpose built for factory automation and machine vision applications. It features an Intel 13th/12th Gen. Core i3/i5/i7/i9 processor and two DDR5 SO-DIMM Memory (up to 64GB), providing it with the performance capabilities to excel in a wide variety of automation and machine vision applications.

With two 2.5Gbe LAN ports, four USB 3.2 Gen 1 ports, and four serial ports, it can easily be connected to a range of cameras and sensors. Where additional control is required the AVS-530QL, provides an additional two GbE LAN ports, two USB 3.2 ports and 4 digital input, 4 digital output, that allows control of connected systems based on digital inputs. Having a DP port and HDMI for dual display output, this controller can easily serve as the hub of an effective HMI solution.

The AVS-530 also features an M.2 M-Key, 2280/2242 (default), or two removable 2.5” drive bays (option) allowing it to easily transfer large amounts of data storage. It also has one full size Mini-PCIe slot, one M.2 2230 E-key for Wi-Fi / Bluetooth and one M.2 3042/3052 B-key, for 4G/5G, with onboard NANO SIM slot. It supports Windows 10 IoT, Windows 11 IoT, and Linux Ubuntu operating systems, and also offers additional options, such as a watchdog timer (256 steps) and six SMA for wi-fi/4G/5G/GPS antennas, providing even more flexibility.

The AVS-530 is a rugged, fanless system that features a tough casing (plating titanium grey aluminium heatsink and black steel chassis) providing protection in harsh industrial environments. It also features an operational temperature range of -20°C to 60°C for the i3/i5 processors or -20°C to 50°C for the i7/i9 processors and has a DC input range of 9V to 32V.

The wide range of features of the AVS-530 series, including the flexible and extensive I/O support, makes it ideal for a wide variety of applications, and the rugged design means that it will continue to operate even in harsh environments. The wall mount or din rail mount options, and having all ports on the front face, makes the AVS-530 even more adaptable to suit a variety of needs.

Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

  • Intel Core 13th/12th Gen i3/i5/i7/i9 Processors
  • 2 x DDR5 SO-DIMM, up to 64GB
  • Fanless Design
  • 4 x Serial ports RS-232/422/485
  • 1 x DP and 1 x HDMI graphics ports
  • 1 x Mini-PCIe slot, 1 x M.2 2230 E-key & 1 x M.2 3042/3052 B-key
  • 4 x USB3.2 ports (+2 x USB3.2 ports for QL version)
  • 8-bit DI/O for QL version
  • 2 x 2.5GbE LAN ports (+2 x GbE LAN ports for QL version)
  • Flexible expansion features through I/O module design with Mini PCIe add-on card support
  • Wide Range DC 9~32V Power Input
  • Wide Range Operating Temperature: -20~60˚C (i3/i5 models) / -20~50˚C (i9/i7 models)
  • Removable HDD/SSD Tray with RAID 0/1
  • DIN Rail Mount Option

Data Sheets (PDF)

Product Downloads PDF Icon

AVS-530 Data Sheet

Product Downloads PDF Icon

AVS-530QL Data Sheet

Part Numbers

Details

AVS-530

Fanless box PC, Intel Gen 12/13 Core i9/i7/i5/i3, 4xser, 4xUSB3.2, 2x2.5GbE lan, 1xDP++, 1xHDMI, 1xM.2 2280 & 2x2.5inch hdd bay, 2xM.2, audio, 9-32VDC input

AVS-530QL

Fanless box PC, Intel Gen 12/13 Core i9/i7/i5/i3, 4xser, 6xUSB3.2, 2x2.5GbE & 2xGbE lan, 8bit dig i/o, 1xDP++, 1xHDMI, 1xM.2 2280 & 2x2.5inch hdd bay, 2xM.2, audio, 9-32VDC input
