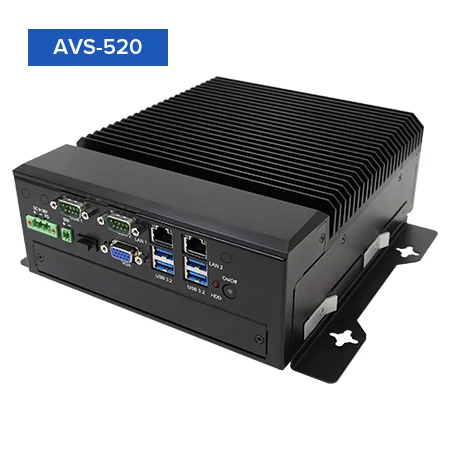

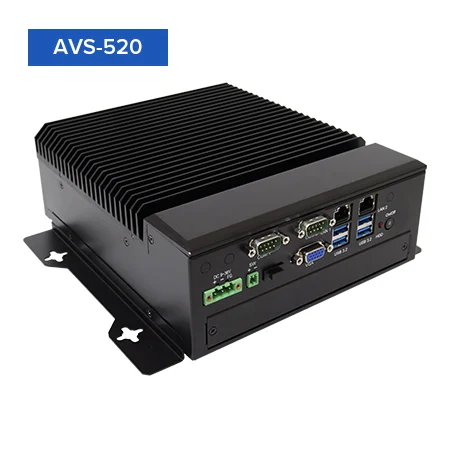

AVS-520 Series

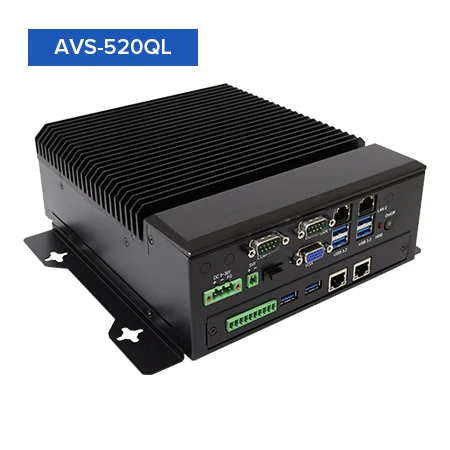

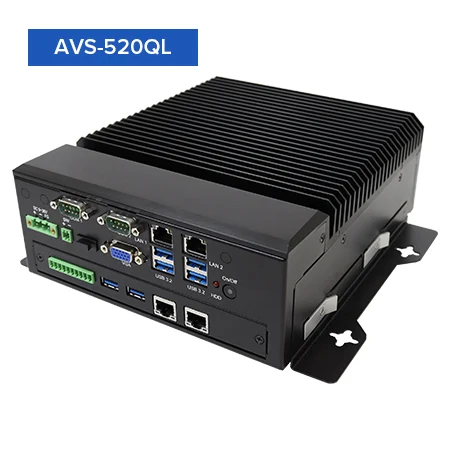

The AVS-520 is purpose built for factory automation and machine vision applications. With two LAN ports, four USB 3.2 Gen 1 ports, and two serial ports, it can be connected to a range of cameras and sensors. Where additional control is required the AVS-520QL, with its additional two GbE LAN ports, two USB 3.0 ports and its 8-bit DIO, can also control connected systems based on digital inputs. Having a VGA port and HDMI for dual display output, this controller can easily serve as the hub of an effective HMI solution.

The AVS-520 has two removable 2.5” drive bays allowing it to easily transfer large amounts of data storage. It also has one full size Mini-PCIe slot and 1 x 2242/2280 M.2 slot B/M keyed that supports NVMe.

The AVS-520 is a rugged, fanless system that features a tough casing and an operational temperature range of -20°C to 60°C for the i3/i5 processors or -20°C to 50°C for the i7 processor. It can withstand power surges and drops, and has a DC input range of 9V to 36V. The system is also resistant to high levels of shock (15G) and vibrations (1G).

Key Features:

• 9th Gen. Intel Core i3/i5/i7 Processors
• Support up to 64GB So-DIMM DDR4
• 2 x Removable Drive-bays
• Flexible expansion features through I/O module design
• 2 x Serial ports (1 x RS-232/422/485 and 1 x RS-232)
• 1 x VGA and 1 x HDMI graphics ports
• Wide Range DC 9~36V Power Input
• 1 x Mini-PCI-e slot and 1 x M.2 supporting NVMe
• 4 x USB3.2 ports (+2 x USB3.0 ports for QL version)
• 8-bit DIO for QL version
• 2 x GbE LAN ports (4 x GbE LAN ports for QL version)
