AVS-320

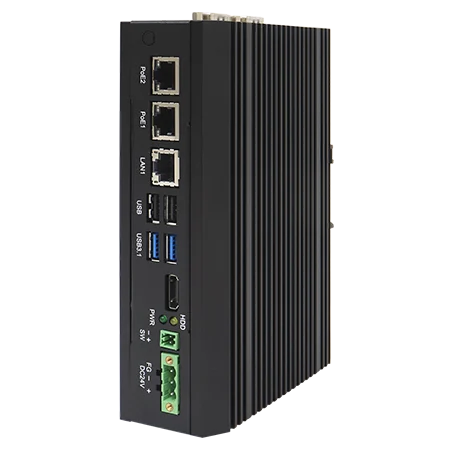

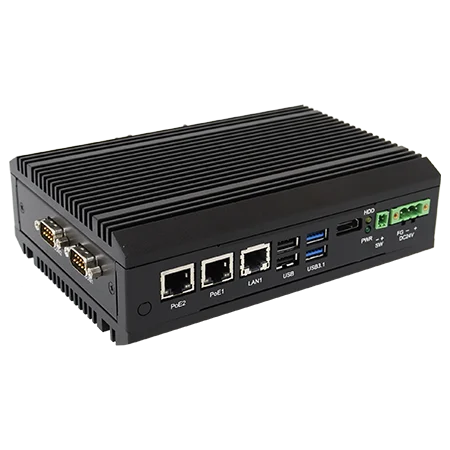

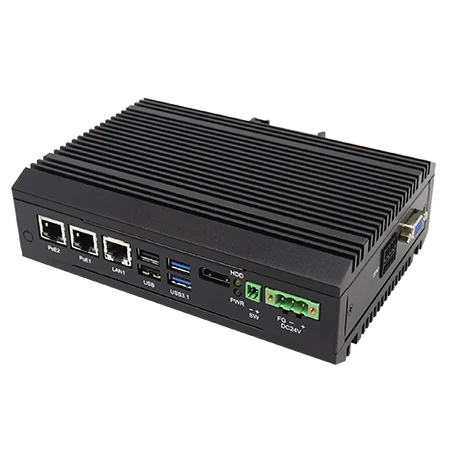

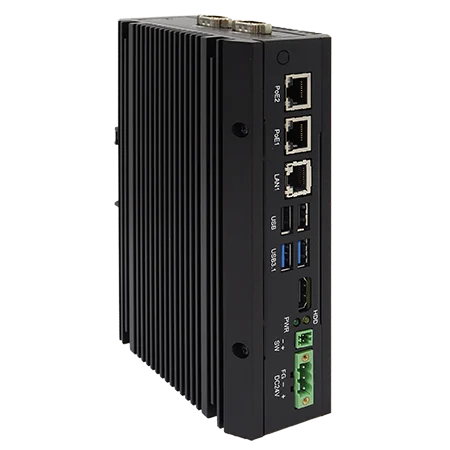

The AVS-320 Compact Fanless Machine Vision Box PC from APLEX technology, is purpose built for factory automation, smart industry and machine vision applications. With its compact size, rugged/fanless design, high-speed powerful computing abilities and wide range of additional features, the AVS-320 is an ideal solution to suit a wide variety of applications.

The AVS-320 is powered by the Intel Celeron J6413 quad core processor and supports up to 32GB SoDIMM DDR4 memory.  It has two USB3.1 and two USB2 ports; one RS-232 and one RS-232/422/485 serial port, a VGA and HDMI graphics output port; one GbE and two GbE PoE LAN ports; 8-bit digital I/O; and one M.2 Sata port and one M.2 expansion slot. With all of this I/O, the AVS-320 can easily integrate with machine vision cameras and other peripheral devices to collect and analyse image data in real-time. It also supports firmware TPM 2.0, which offers improved security, as well as many other benefits.

The AVS-320 is a rugged, durable and reliable fanless system that features a tough casing (aluminium heatsink and steel chassis) and an operational temperature range of -20°C to 70°C. It supports 24V DC input and is extremely compact (180 x 130 x 55mm), making it an ideal space-saving option.

It is extremely flexible and easy to configure with a range of adaptable options. It also has support for both Windows 10 & 11 and has the ability to be DIN rail mounted, providing even more versatility to the range of options that are available. The wide range of features of the AVS-320, including the flexible and extensive I/O support, makes it ideal for a wide variety of applications, and the rugged design means that it will continue to operate even in harsh industrial environments.

Key Features:

• Celeron J6413 Quad Core Processor
• Wide Operating Temp of -20 ~ 70˚C
• 3 x GbE LAN ports including 2 x PoE ports
• Supports up to 32GB SoDIMM DDR4
• Supports Windows 10 and Windows 11
• Compact Size (180 x 130 x 55mm)
• DIN Rail Mount
