mPCIe-ISODIO-16
Product Overview
Isolated Digital I/O PCI Express Mini Card with 8 Isolated Inputs, 8 Isolated Outputs
Features Include:
- Change-of-State (COS) detection IRQ generation
- PCI Express Mini Card (mPCIe) Type F1, with latching I/O connectors
- 8 Isolated Inputs, 8 Isolated Outputs
- On-Board 32-Bit Timer Watchdog to Reset Board to Default Power-Up Values
- View More

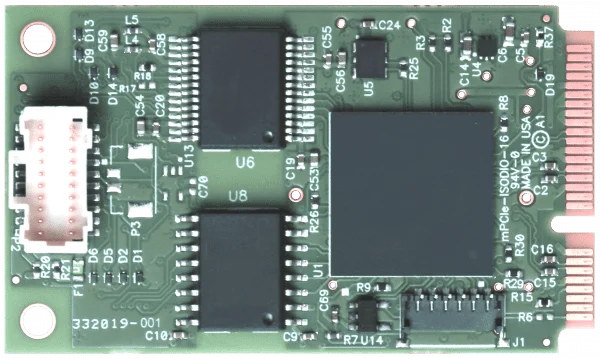

The mPCIe-ISODIO-16 is a type F1 PCI Express Mini Card (mPCIe) that provides 8 isolated digital inputs and 8 isolated digital outputs. Featuring Tru-Iso™ I/O-to-PC isolation this card provides a robust solution to common signal level and grounding issues when used in electrically noisy environments; at up to 1500V between I/O and the host computer, it’s like data insurance.
Change of State (COS) detection and interrupt generation capabilities are designed to relieve software from polling routines that consume valuable processing time. Inputs can be programmed for detecting state changes on their lines, in which any changes of the bits (low-to-high or high-to-low) will generate an IRQ. An ISR (interrupt service routine) then determines which bit changed state and clears the interrupt.
Integration with your embedded system couldn’t be easier using our optional 9” cable assembly (DSub 25 pin female connector) designed to be panel-mounted to the enclosure, or in any application environment.
Key Features:
- Change-of-State (COS) detection IRQ generation
- PCI Express Mini Card (mPCIe) Type F1, with latching I/O connectors
- 8 Isolated Inputs, 8 Isolated Outputs
- On-Board 32-Bit Timer Watchdog to Reset Board to Default Power-Up Values
