mPCIe-IIRO Series

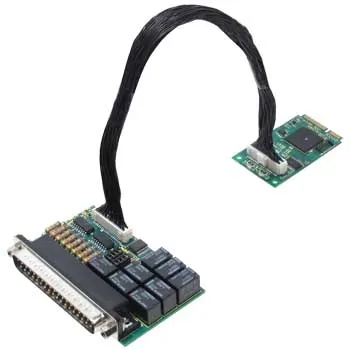

The mPCIe-IIRO-8 consists of a type F1 PCI Express Mini Card (mPCIe) interface board that connects to a Mobile-ITX-sized, DB-37M Isolation Module via an included 9” cable. That module is designed to be easily panel-mounted in any application environment. It uses the high speed PCI Express bus to transfer digital data to and from the card. The digital I/O is compatible with 8255 PPI chips making it easy to program. This allows for simple and trouble-free migration from other ACCES PCI and PCI Express digital I/O cards, but also provides for advanced features enabled by the onboard FPGA logic.

The mPCIe-IIRO cards are well suited to complex environments, mitigating otherwise challenging ground-loops, high-common-mode, and transient voltage spikes common in electrically-noisy industrial or factory locations. The broad voltage compatibility and high current outputs allows use in a wide range of applications.

The non-polarized inputs support both AC and DC, and configuration jumpers allow 4.7ms input filters to be enabled per-channel, as desired – required for AC use. The isolated inputs support voltages from 3 to 31 VDC/VAC RMS [40Hz to 10000Hz], as well as standard 12/24 AC control transformer signals.

The mPCIe-IIRO-8 and mPCIe-RO-8 have 5 Form C (“Single-pole, double-throw”, or SPDT) and 3 Form A (SPST) electromechanical relays.
The mPCIe-IIRO-4 has 4 Form C (“Single-pole, double-throw”, or SPDT) electromechanical relays.
All relays are capable of 1A continuous-current load.

Change of State (COS) detection and interrupt capabilities are designed to relieve software from polling routines that can consume valuable processing time. Each port can be programmed for detecting state changes on their lines, in which any changes of the enabled port’s bits (low-to-high or high-to-low) will generate an IRQ. An ISR (interrupt service routine) then determines which bit changed state and clears the interrupt.

The mPCIe-IIRO-8 is excellent for use in a variety of applications where on-board relays are required and inputs must be isolated. The mPCIe-IIRO-8 can be used in the following markets: Process Monitoring, Manufacturing/Production Test, Machine Control, Monitoring and Control, Security Systems, Energy Management, Industrial Automation, Factory Automation, Laboratory Automation, Embedded OEM.

Key Features:

• 8 OR 4 electromechanical 1A relay outputs
• Change-of-State (COS) detection IRQ generation
• 9” cable (228MM), standard
• Panel-mountable isolation module with 37-pin male D-Sub connector
• Optional Industrial operating temperature (-40°C to +85°C)
• PCI Express Mini Card (mPCIe) Type F1, with latching I/O connectors
• 8 OR 4 optically-isolated non-polarized inputs
