USB-DIO24-CTR6 Series

Product Overview

Multifunction High-Speed USB Digital I/O with 6 Counter Timers

Features Include:

  • 24 lines of high-current TTL digital I/O and six 16-bit counter/timers
  • High-speed USB 2.0 device, USB 3.1 compatible
  • All I/O lines buffered with 32mA source / 64mA sink current capabilities
  • 8254 Gate, Input and Output lines independently accessible at connector
  • View More

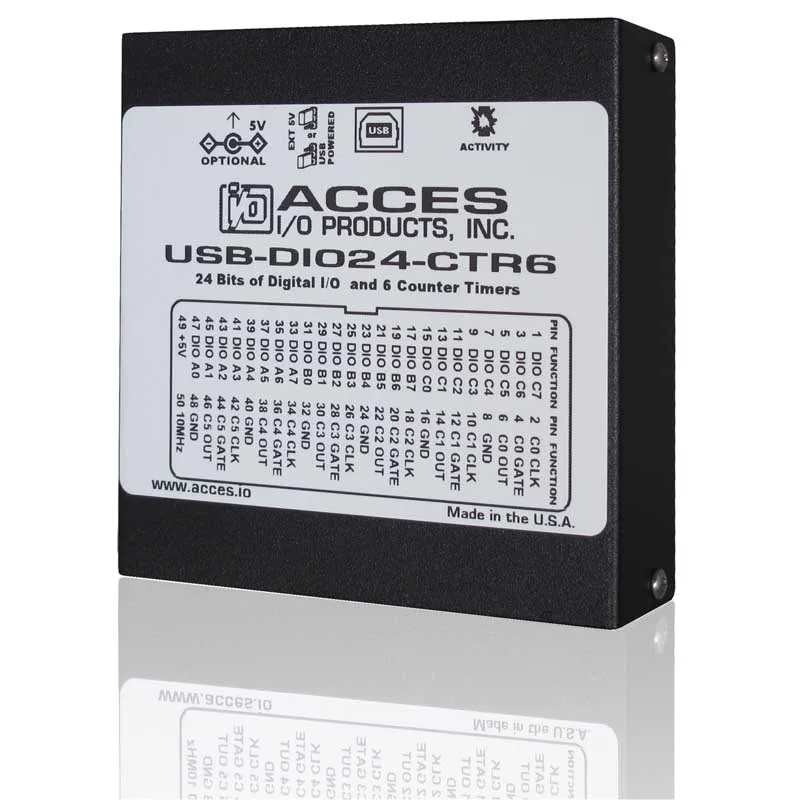

Data Acquisition & Control USB-DIO24-CTR6 Series Main Product Image
Data Acquisition & Control USB-DIO24-CTR6 Series Product Image 2

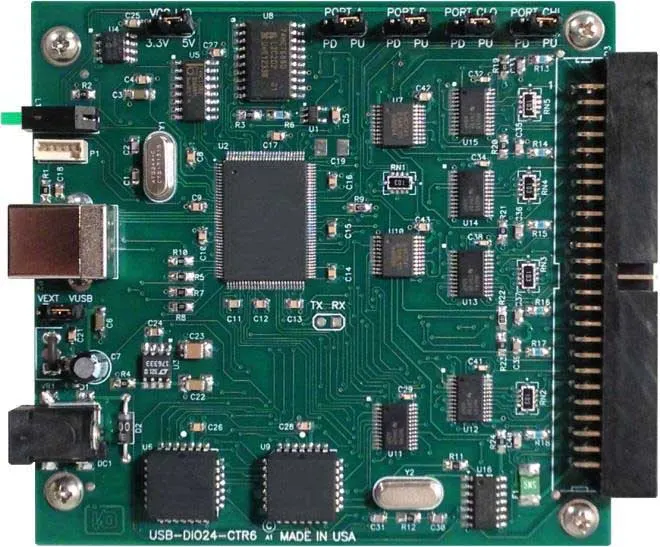

Data Acquisition & Control USB-DIO24-CTR6 Series Product Image 3

Key Features:

  • 24 lines of high-current TTL digital I/O and six 16-bit counter/timers
  • High-speed USB 2.0 device, USB 3.1 compatible
  • All I/O lines buffered with 32mA source / 64mA sink current capabilities
  • 8254 Gate, Input and Output lines independently accessible at connector
  • Field selectable CMOS (+5V) or LVTTL (3.3V) VCCIO signal levels
  • Type B USB connector features industrial strength and high-retention design
  • Compatible with industry standard I/O racks such as Grayhill, Opto 22, Western Reserve Controls, etc.
  • OEM version (board only) features PC/104 module size and mounting compatibility
  • Industrial temperature operation (-40°C to +85°C) and DIN rail mounting provisions

Data Sheets (PDF)

Product Downloads PDF Icon

USB-DIO24-CTR6 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

USB Software Reference Manual

Product Information

Internet Links

White Papers

Part Numbers

Details

USB-DIO-24

24-channel digital I/O module integrated in rugged enclosure

USB-DIO24-CTR6

24-channel digital I/O module with 6 counter/timers integrated in rugged enclosure

USB-DIO24-CTR6-OEM

24-channel digital I/O module with 6 counter/timers. Board only model, no enclosure.

USB-DIO-24-OEM

24-channel digital I/O module. Board only model, no enclosure
