USB-DIO-32 Series

Product Overview

USB 32 digital I/O, rugged enclosure and screw terminal connector, Optional Counter/Timers

Features Include:

  • High-Speed USB 2.0 device, USB 1.1 compatible
  • Small (3.5 by 3.7 in.), portable, 32-channel USB digital I/O module
  • Four 8-bit ports independently selectable for inputs or outputs
  • All 32 I/O lines buffered with Sink 64mA / Source 32mA current capabilities
  • View More

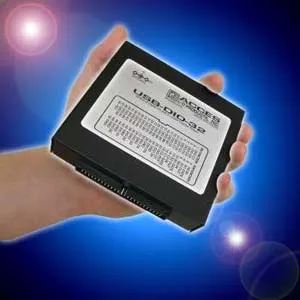

Data Acquisition & Control USB-DIO-32 Series Main Product Image
Data Acquisition & Control USB-DIO-32 Series Product Image 2

Key Features:

  • High-Speed USB 2.0 device, USB 1.1 compatible
  • Small (3.5 by 3.7 in.), portable, 32-channel USB digital I/O module
  • Four 8-bit ports independently selectable for inputs or outputs
  • All 32 I/O lines buffered with Sink 64mA / Source 32mA current capabilities
  • Custom high-speed function driver
  • Removable screw terminal adaptor for easy wiring
  • Standard 50-pin IDC connector with key
  • Rugged industrial enclosure
  • Optional Three 82C54 counter/timers
  • Optional Economy "E" version also available without the screw terminal adaptor
  • OEM (board only) version with pre-drilled mounting holes for added flexibility in embedded applications

Data Sheets (PDF)

Product Downloads PDF Icon

USB-DIO-32 Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

USB Software Reference Manual

Product Downloads PDF Icon

USB-DIO-32 Series Technical Manual

Product Information

Internet Links

White Papers

Part Numbers

Details

USB-DIO-32

USB 32 digital I/O, rugged enclosure and screw terminal connector

USB-DIO-32-C3

USB 32 digital I/O, 3 counter/timers, rugged enclosure and screw terminal connector

Other Options

Details

-E

Economy model (no screw terminal board)

-OEM

(USB-104) Board only version (no enclosure or screw terminal board)

Power Supply Options

Details

POW-ADA/9-2A

External 240V AC to 9V @ 2 Amp DC regulated adapter

USB-PI-ACCESS

External power interface for Acces I/O USB devices, excludes power pack
