USB-CTR-15

Product Overview

USB Digital Counter/Timer Module

Features Include:

  • Fifteen independent 16-bit counter/timers (5 x 82C54-10)
  • Clock, gate and out signals from all 15 channels buffered and accessed via 1 connector
  • Small (3.5" by 3.775"), portable counter/timer moddule (PC/104 size and mounting compatibility)
  • Standard configuration adaptor pre-configured for event counting, frequency measurement, pulse width measurement, or frequency generation
  • View More

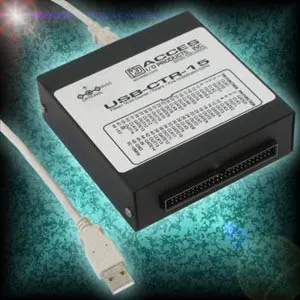

Data Acquisition & Control USB-CTR-15 Main Product Image
Data Acquisition & Control USB-CTR-15 Product Image 2

Key Features:

  • Fifteen independent 16-bit counter/timers (5 x 82C54-10)
  • Clock, gate and out signals from all 15 channels buffered and accessed via 1 connector
  • Small (3.5" by 3.775"), portable counter/timer moddule (PC/104 size and mounting compatibility)
  • Standard configuration adaptor pre-configured for event counting, frequency measurement, pulse width measurement, or frequency generation
  • Removable screw-terminal board for easy wiring
  • Rugged small-sized (4" x 4" x 1.25") industrial enclosure
  • OEM (board only) available
  • High-speed USB 2.0 device, USB 1.1 compatible

Data Sheets (PDF)

Product Downloads PDF Icon

USB-CTR-15 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

USB Software Reference Manual

Product Downloads PDF Icon

USB-CTR-15 Technical Manual

Product Information

Internet Links

White Papers

Media Releases

Part Numbers

Details

USB-CTR-15

USB Digital Counter/Timer Module

Other Options

Details

-E

Economy model (no screw terminal board)

-OEM

(USB-104) Board only version (no enclosure or screw terminal board)

Power Supply Options

Details

POW-ADA/9-2A

External 240V AC to 9V @ 2 Amp DC regulated adapter

USB-PI-ACCESS

External power interface for Acces I/O USB devices, excludes power pack
