SPLITMUX-USB4K18GB-4

Product Overview

4K 18Gbps HDMI Multiviewer with Built-In USB KVM Switch, Multiple Display Modes, HDCP Compliant

Features Include:

  • Built-In 4 port USB KVM switch with additional 2-port USB hub
  • Quad, picture-in-picture (PiP), full screen, and custom display modes with 4K 60Hz resolution
  • 18Gbps bandwidth
  • HDMI 2.0 input & output
  • View More

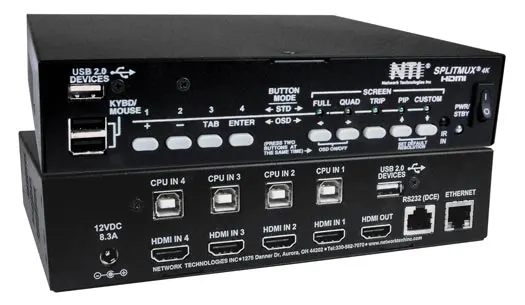

Video Wall & Multiviewers SPLITMUX-USB4K18GB-4 Main Product Image
Video Wall & Multiviewers SPLITMUX-USB4K18GB-4 Product Image 2
Video Wall & Multiviewers SPLITMUX-USB4K18GB-4 Product Image 3

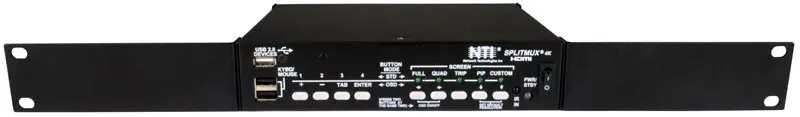

Video Wall & Multiviewers SPLITMUX-USB4K18GB-4 Product Image 4

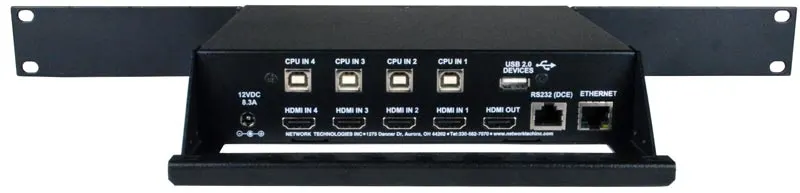

Video Wall & Multiviewers SPLITMUX-USB4K18GB-4 Product Image 5

The SPLITMUX® 4K 18Gbps HDMI Quad Screen Splitter/Multiviewer with Built-In USB KVM Switch allows video from four different HDMI 2.0 Ultra-HD 4Kx2K 60Hz computers to be simultaneously displayed on a single monitor. Additionally, it can switch one of the four attached computers to a shared keyboard and mouse for operation and to two additional USB devices. It is capable of displaying the HDMI 2.0 video signals in quad, PiP, full, or custom mode.

  • Quad, Picture-in-Picture, Full Screen, and Custom display modes.

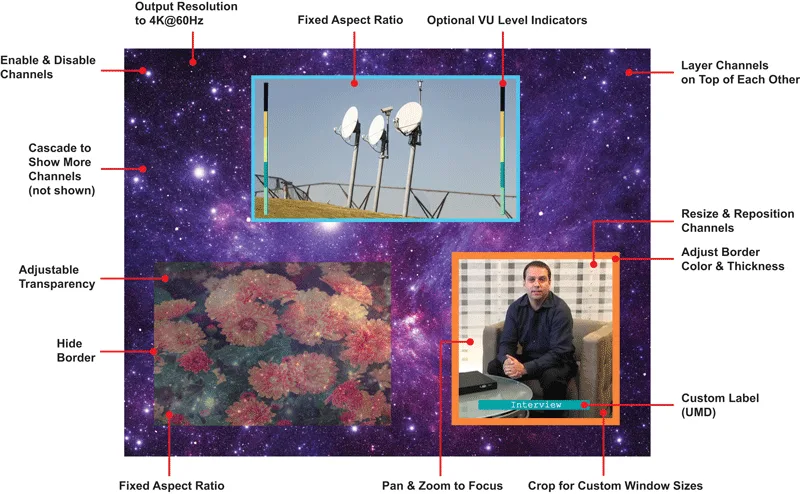

    • Custom Display Mode: the size, position and selection of any or all windows are customizable.

      • 2- and 3-source viewing is possible with this method.

      • Maintain input aspect ratio if desired – no stretching necessary.

      • Layer display windows and adjust transparency of each video source display.

  • Switch one of the four attached computers to a shared USB keyboard and mouse for operation.

  • Supports input/output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz) in all display modes.

    • Independent video in to video out resolution.

  • HDMI features supported:

    • HDMI 2.0

    • Up to 36-bit color for input and 24-bit for output

    • Input: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0; Output: RGB

    • LPCM audio

    • Bandwidth up to 600 MHz (18 Gbps)

  • HDCP 2.2 and 1.4 compliant.

  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.

  • Zoom, pan, and crop the image from any source to focus on key areas.

  • Switch audio independently of video from connected HDMI sources.

  • Multiple audio sources can be simultaneously active in any display mode or preset layout.

  • Adjustable audio gain with VU level indicators for each input channel.

  • A customized text label can be added for each video window to provide easy input identification (UMD).

  • Control the multiviewer through Ethernet, RS232 serial port, keyboard/mouse commands, on screen display (OSD), front panel buttons, or optional IR remote.

  • Built-in 2-port USB hub - switch devices between connected computers.

    • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.

  • Compliant with USB 2.0 (high-speed and low/full speed) standards.

  • Cascade multiviewers to display video from any number of video sources on one screen.

    • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.

  • Backup and restore multiviewer configurations.

  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.

  • 1RU rackmount kit and cable management shelf included.

Display Real-Time Video from Four HDMI 2.0 Sources Simultaneously on a Single 4K60Hz Display

Display Real-Time Video from Four HDMI 2.0 Sources Simultaneously on a Single 4K60Hz Display

Display Mode Examples

Display Mode Examples

Key Features:

  • Built-In 4 port USB KVM switch with additional 2-port USB hub
  • Quad, picture-in-picture (PiP), full screen, and custom display modes with 4K 60Hz resolution
  • 18Gbps bandwidth
  • HDMI 2.0 input & output

Data Sheets (PDF)

Product Downloads PDF Icon

SPLITMUX-USB4K18GB-4 Data Sheet

Part Numbers

Details

SPLITMUX-USB4K18GB-4

4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer
