SPLITMUX-4K18GB-4

Product Overview

4K 18Gbps HDMI Quad Screen Splitter/Multiviewer

Features Include:

  • Quad, Picture-in-Picture (PiP), Full Screen, and Custom display modes.
  • Supports input/output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4) in all display modes.
  • Independent video in to video out resolution.
  • HDMI features supported: HDMI 2.0, Up to 36-bit color for input and 24-bit for output, RGB, YUV 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, LPCM audio
  • View More

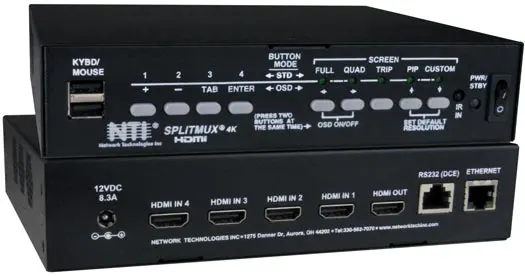

Video Wall & Multiviewers SPLITMUX-4K18GB-4 Main Product Image
Video Wall & Multiviewers SPLITMUX-4K18GB-4 Product Image 2
Video Wall & Multiviewers SPLITMUX-4K18GB-4 Product Image 3
Video Wall & Multiviewers SPLITMUX-4K18GB-4 Product Image 4
Video Wall & Multiviewers SPLITMUX-4K18GB-4 Product Image 5

The SPLITMUX® 4K 18Gbps HDMI Quad Screen Multiviewer allows video from four different HDMI 2.0 Ultra-HD 4Kx2K 60Hz sources to be simultaneously displayed in real-time on a single monitor. It is capable of displaying the HDMI 2.0 video signals in quad, PiP, full, or custom mode.

Key Features:

  • Quad, Picture-in-Picture (PiP), Full Screen, and Custom display modes.
  • Supports input/output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4) in all display modes.
  • Independent video in to video out resolution.
  • HDMI features supported: HDMI 2.0, Up to 36-bit color for input and 24-bit for output, RGB, YUV 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, LPCM audio
  • Bandwidth up to 600 MHz (18 Gbps)
  • HDCP 2.2 and 1.4 compliant.
  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
  • Zoom, pan, and crop the image from any source to focus on key areas.
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
  • Multiple audio sources can be simultaneously active in any display mode or preset layout.
  • Adjustable audio gain with VU level indicators for each input channel.
  • A customized text label can be added for each video window to provide easy input identification (UMD).
  • Control the multiviewer through Ethernet, RS232 serial port, keyboard commands, on screen display (OSD), front panel buttons, or optional IR remote.
  • Cascade multiviewers to display video from any number of video sources on one screen.
  • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
  • Backup and restore multiviewer configurations.
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.

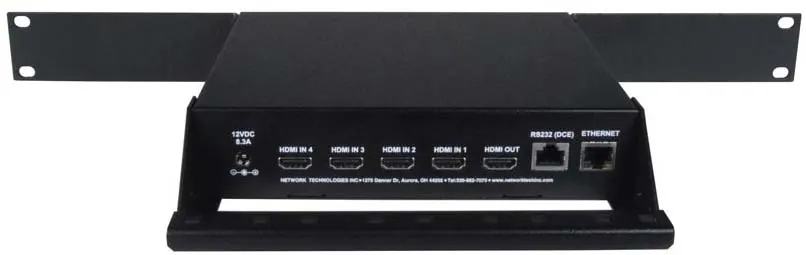

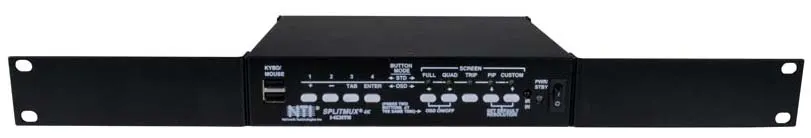

  • 1RU rackmount kit and cable management shelf included.
  • Available option: dual side-by-side rackmount units in 1RU

Data Sheets (PDF)

Product Downloads PDF Icon

SPLITMUX-4K18GB-4 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

SPLITMUX-4K18GB-4

Product Downloads PDF Icon

SPLITMUX-4K18GB-4 CAD Drawing

Part Numbers

Details

SPLITMUX-4K18GB-4

4K 18Gbps HDMI Quad Screen Splitter/Multiviewer, 1RU Rackmount

SPLITMUX-4K18GB-4-2R

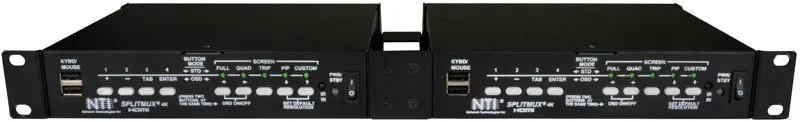

4K 18Gbps HDMI Quad Screen Splitter/Multiviewer, 1RU Dual Side-by-Side Rackmount
