SM-8X8-4K18GB-LCV2
Product Overview
Low-Cost 4K 18Gbps 4x4 and 8x8 HDMI Video Matrix Switch
Features Include:
- Each input can be independently connected to any or all outputs
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p
- Bandwidth up to 600 Mhz (18 Gbps)
- Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)

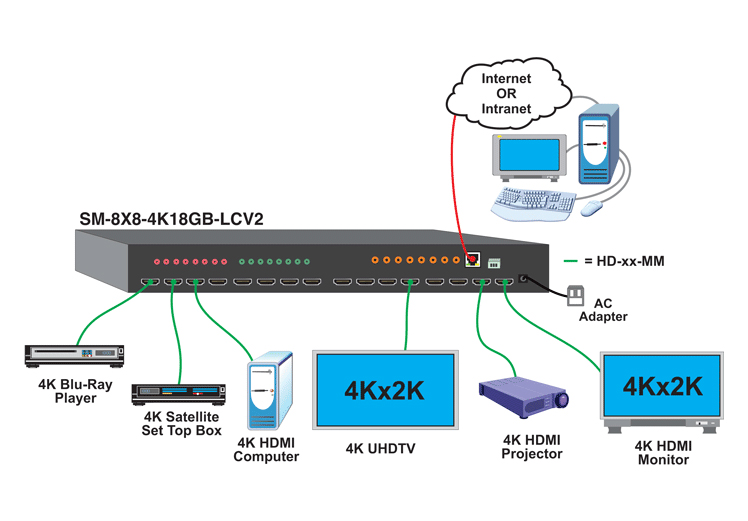

The VEEMUX® Low-Cost 4K HDMI Matrix Switch routes digital 4Kx2K HDMI video and audio signals from up to eight HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to eight displays (monitors, 4K TV's, projectors, etc).
- Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
- Each input can be independently connected to any or all outputs.
- HDCP 2.2 compliant.
- HDMI features supported:
- HDMI 2.0
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
- YUV 4:4:4
- HDR
- 3D
- Bandwidth up to 600 Mhz (18 Gbps)
- Lip Sync
- Audio switching:
- Audio switching follows video switching.
- Supports analog audio embedding and HDMI audio de-embedding.
- HDMI-embedded audio switching (four-channel stereo mixing).
- Analog audio and SPDIF digital audio out ports for each source.
- For example, if HDMI output 1 video is from HDMI input 3, then it will also receive audio from HDMI input 3. The L/R analog audio output 1 and the SPDIF audio output 1 will receive audio from HDMI input 3 also.
- Configurable built-in EDID table.

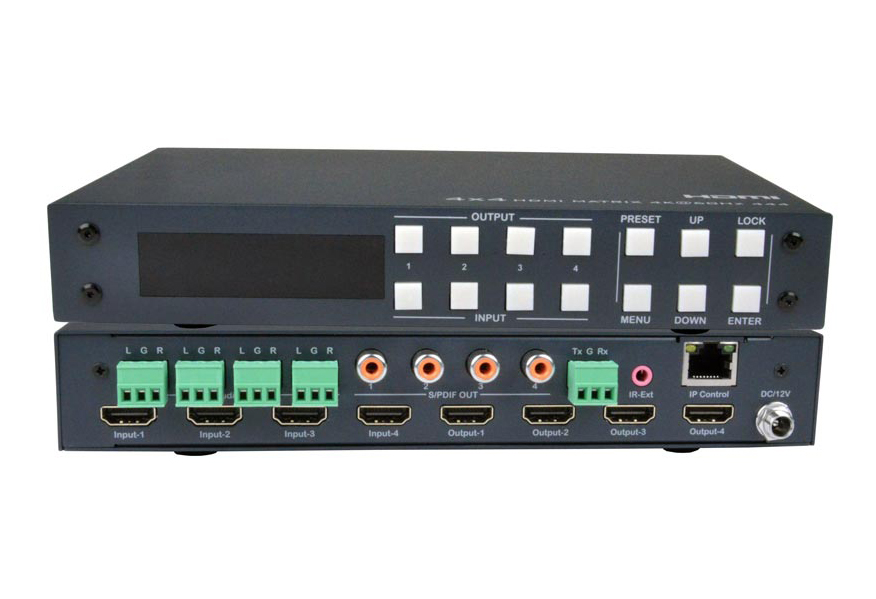

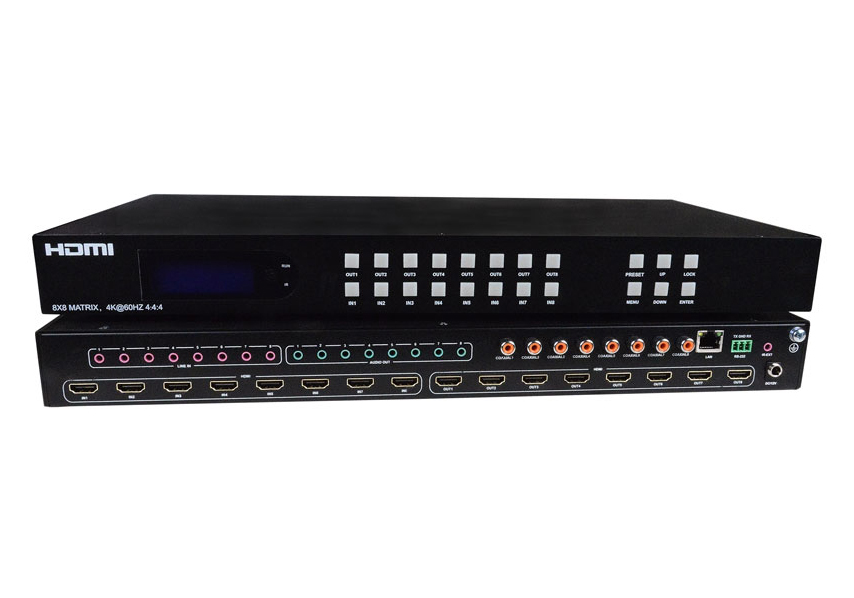

- Compact desktop design for the 4x4 model and 1RU design for the 8x8.
- Mounting kit included with the 8x8 model.
Key Features:
- Each input can be independently connected to any or all outputs
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p
- Bandwidth up to 600 Mhz (18 Gbps)
- Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active)
- Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS2
- HDCP 2.2 compliant
- HDMI features supported: HDMI 2.0, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM, YUV 4:4:4, HDR-10, 3D, Lip Sync
- HDMI-embedded audio switching (four-channel stereo mixing)
- Configurable built-in EDID table
- 8 HDMI inputs and 8 HDMI outputs
- Compact desktop design for the 4x4 model and 1RU design for the 8x8. Mounting kit included with the 8x8 model.
- Analog audio and SPDIF digital audio out ports for each source.
