USB3C-104-HUB

Rugged, Industrial Grade, 5-Port SuperSpeed+ USB 3.1 Gen 2 Type C & Type A Hub with Power Delivery (PD), High-Retention USB Connectors and Extended Temperature Operation

The USB3C-104-HUB is a high performance, industrial grade, mountable solution for USB expansion. It is a high-speed USB 3.1 device, USB 2.0 and 1.1 compatible. Each of the five downstream ports are capable of SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) data transfers.

This product utilizes a high-performance, low-power USB 3.1 hub controller. It is USB-IF certified, Windows Hardware Quality Lab (WHQL) compliant, and its extended operating temperature is rated for industrial and military grade applications.

The USB3C-104-HUB was designed to withstand a variety of environmental cnditions such as shock, vibration, and temperature. This hub has latching / locking port connectors on both downstream and upstream ports to prevent accidental disconnects. The small, low profile, steel enclosure allows the device to be installed in numerous locations where multiple USB devices must share a single USB port. The rugged steel enclosure, positive retention connections, and (-40°C to +85°C) operation makes the USB3C-104-HUB stand out compared to commercially available USB 3.1 hubs.

The USB3C-104-HUB is designed to be used in rugged industrial environments but is small enough to fit nicely onto any desk or testing station. The board itself is PC/104 sized (3.550 x 3.775 inches, 90mm x 96mm) and ships inside a steel powder-coated enclosure with an anti-skid bottom. Mounting provisions available include a DIN rail and various panel mounting plates.

USB C Power Delivery (PD): delivers power, fast!

Our USB C PD design is always as fast as your device’s actual charger — faster, even!
Example: The iPad Pro 12.9” comes with a 60W charger, but the USB3C-104-HUB can deliver the USB C PD maximum, 100W.  Charging time is cut from 3 hours to 2.  Our PD solution supports all USB C PD standards for voltage and current, ensuring you always charge at your device’s max rate.

OEM USB/104 FORM FACTOR

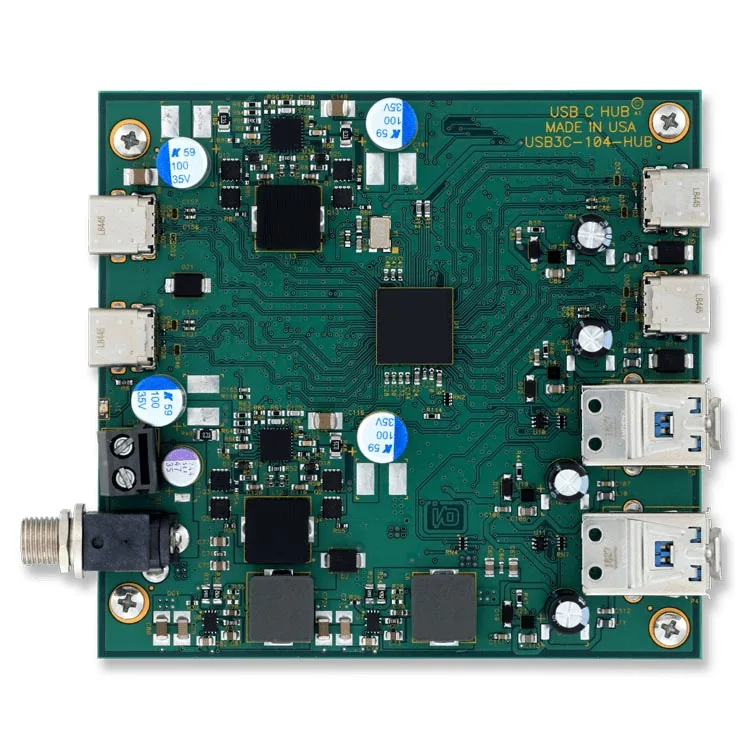

The OEM (board only) version is perfect for a variety of embedded applications. What makes the OEM option unique is that the PCB size and pre-drilled mounting holes match the PC/104 form factor (without the bus connections). This ensures easy installation using standard standoffs inside most enclosures or systems. The board can be added to any PC/104-based stack by connecting it to a USB C port usually included on-board with embedded CPU form factors. The USB3C-104-HUB OEM board can also be installed using standoffs inside other enclosures or systems.

High Retention USB Connectors

The ever-growing presence of USB in the industrial/military marketplace has driven the need for USB connections to be reliable, dependable, and unfailing. Gone are the days of loose USB connections. All type A and type C USB connections used on USB3C-104-HUB product feature a high retention, locking design that complies with the class 1, Div II minimum withdrawal requirement. Over 11 pounds of force (50 Newtons), is required to separate the type A connectors . These connectors have a positive locking tab to quickly differentiate it from standard USB connectors. The Type C connection follows the USB Type-C locking connection specification Rev 1.0 which features a single screw lock USB cable to ensure secure connection to the USB3C-104-HUB. Using the fastened USB connections on this hub increases reliability in your system and ensures against accidental disconnection.

Key Features:

• 5-port USB 3.1 Gen 2 hub with data transfers up to 10Gbps
• USB C with Power Delivery (PD) 3.0 upstream to host PC at up to 20V @ 5A
• One downstream USB Type C with PD 3.0 at up to 20V @ 5A
• Two USB Type C downstream ports with Battery Charging v1.2 and Apple Charging standards (up to 2.8A per port), two Type A up to 1.8A
• IEC 61000-4 Lvl 4 ESD, EFT & Surge Protection on all USB data lines
• Rugged, industrial grade (-40°C to 85°C) operation
• Locking upstream, downstream, and power connectors prevent accidental disconnects
• SuperSpeed+ (10Gbps), SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) transfers supported on all ports
• Requires 24V power via DC power jack or a pair of screw terminals
• Compact, steel, low-profile enclosure
• RoHS compliant
• Designed, made, supported, and manufactured in the USA
• FACTORY OPTIONS
• OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
• Economy version equipped with standard, instead of high-retention connectors
• High retention screw terminals for external power
• Tantalum capacitors for flight and space based applications
• Conformal coating
