VMR-HD Series

Product Overview

High Current Remote Power Switched and Outlet Metered PDUs

Features Include:

  • Inlet and Outlet Metered Models
  • Upto 12x 16-Amp Individual Switched Outlets
  • Dual 16-Amp or 32-Amp Power Circuits, IEC320-C20 Power Input Connectors
  • User Definable Alarm Thresholds
  • View More

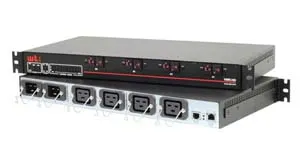

Remote Power & Console Server Management VMR-HD Series Main Product Image
Remote Power & Console Server Management VMR-HD Series Product Image 2

VMR-HD Series High Amp Switched PDUs are specifically designed to provide secure, remote power control, reboot capabilities and outlet level power metering for high amp devices such as Cisco Nexus 9000 Series Switches and Juniper QFX10000 Series Switches. Reliable, accurate per-outlet power metering, backed up by an array of versatile event monitoring functions can closely tracks trends, conditions and events at remote equipment installations, allowing you to anticipate power consumption needs and catch potential signs of trouble before they disrupt service.

The VMR-HD’s power control and monitoring capabilities work together to measure and report energy consumption data, provide a clearer perspective on emerging problems and supply a means for correcting issues at remote sites without the need for a service call or truck roll.

Key Features:

  • Inlet and Outlet Metered Models
  • Upto 12x 16-Amp Individual Switched Outlets
  • Dual 16-Amp or 32-Amp Power Circuits, IEC320-C20 Power Input Connectors
  • User Definable Alarm Thresholds
  • Alarm Notification via Email
  • Ping-No-Answer Monitoring/Reboot
  • Reports kWh, kW, Amps, Volts, Temperature
  • SSHv2 Encryption
  • SSL Web Browser (Https) for Set Up and Operation
  • SNMP Control (v1,v2c, v3)
  • Timed On/Off/Reboot Switching
  • User-Defined Power-Up Default Status
  • Four AUX Ports - Allows Control of Up to 80 Outlets via One Interface
  • LDAP & RADIUS Authentication
  • Command Logging with Audit Trail

Data Sheets (PDF)

Product Downloads PDF Icon

VMR-HD Series Data Sheet

Product Downloads PDF Icon

VMR-HDB Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

VMR / NPS Series Technical Manual

Product Information

Applications

White Papers

Video

Media Releases

Part Numbers

Details

VMR-HD4D16

2x 16 Amp Inputs, 4x 16 Amp Circuit Breaker, 4x IEC C19 Outlets

VMR-HD4D32

2x 32 Amp Inputs, 4x 16 Amp Circuit Breaker, 4x IEC C19 Outlets

VMR-HD4D32-8

4x 32 Amp Inputs, 8x 16 Amp Circuit Breaker, 8x IEC C19 Outlets

VMR-HD4D32-12B

2x 32 Amp Inputs, 3x 16 Amp Circuit Breaker, 12x IEC C19 Outlets

Cables / Adapters

Details

IEC-10A/K3744-010

10A 3pin mains plug to IEC-C19 female connector. Input Power Cable for 16A Units

IEC-15A/K3744-015

15A 3pin mains plug to IEC-C19 female connector. Input Power Cable for 16A Units
