RPC Series

Product Overview

Remote DC Power Control Switches

Features Include:

  • -48V, +24V, +12V DC Power Switching
  • On, Off, Reboot or Default Switching
  • Circuit Sequencing & Power Up Delays
  • Scheduled On, Off, Reboot Switching
  • View More

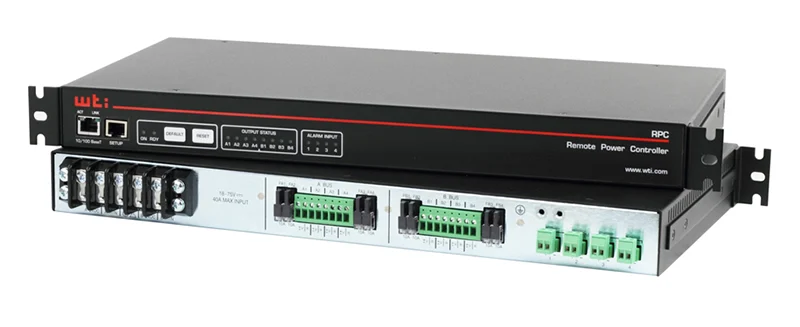

Remote Power & Console Server Management RPC Series Main Product Image

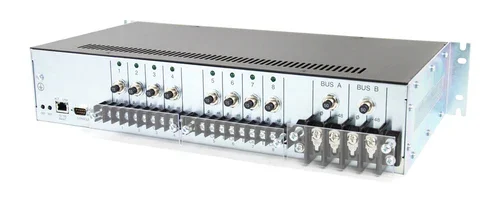

Remote Power & Console Server Management RPC Series Product Image 2

The RPC Series Remote DC Power Controller is a network-grade power distribution and monitoring solution for remote DC powered equipment sites. In addition to providing remote power switching and reboot functions, the RPC also includes device monitoring and alarm features to minimize network disruptions and maximize availability. The RPC can be managed via web interface, CLI, WTI centralized management and RESTful API.

Key Features:

  • -48V, +24V, +12V DC Power Switching
  • On, Off, Reboot or Default Switching
  • Circuit Sequencing & Power Up Delays
  • Scheduled On, Off, Reboot Switching
  • Ping-No-Answer Alarm with Auto Reboot
  • IP & SNMP Control
  • Reports Temperature
  • Over-Temperature Alarms, Power Cycle Alarm, Power Cycle Alarm, Alarm, Command, Access Audit, Temperature Logging

Data Sheets (PDF)

Product Downloads PDF Icon

RPC Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

RPC Series Technical Manual

Product Information

Applications

White Papers

Video

Media Releases

Part Numbers

Details

RPC-40L8A4-12

+12VDC, Dual 40 Amp inputs, Eight (8) 10 Amp outputs, Four (4) Alarm Inputs

RPC-40L8A4-24

+24VDC, Dual 40 Amp inputs, Eight (8) 10 Amp outputs, Four (4) Alarm Inputs

RPC-40L8A4-48

+/-48VDC, Dual 40 Amp inputs, Eight (8) 10 Amp outputs, Four (4) Alarm Inputs

RPC-4850-24V

+24VDC, Dual 50 Amp inputs, Eight (8) 15 Amp outputs

RPC-4850-48V

-48VDC, Dual 50 Amp inputs, Eight (8) 15 Amp outputs
