PWR-RMT-RBT-C13

Product Overview

Single Outlet Remote Power Reboot Switch with 2 Digital Inputs & 2 Digital Outputs

Features Include:

  • Password protected for security
  • Auto scheduler allows for scheduling power on/off/reboot events
  • Auto-Ping feature: Automatically reboots connected device if there is no response
  • Easy to use web interface
  • View More

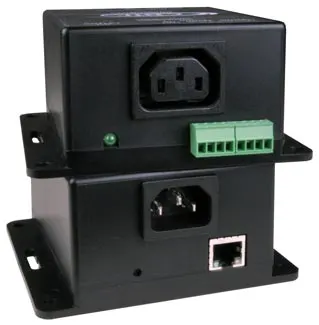

Remote Power & Console Server Management PWR-RMT-RBT-C13 Main Product Image
Remote Power & Console Server Management PWR-RMT-RBT-C13 Product Image 2

The ENVIROMUX® Remote Power Reboot Switch is used to remotely reboot and control power (on/off) to a server or other powered device over IP.

  • Two operating modes for power reboot:
    • Manual – select the outlet and turn the power on/off/cycle.
    • Auto – scheduled, triggered, or configurable combination.
      • Scheduled – set date/time/duration of power cycle.
      • Triggered
        • Power on/off a device when a sensor connected to the digital input changes state.
        • Reboot (power cycle) and control power (on/off) to unresponsive IP devices that are connected to the PWR-RMT-RBT-C13 power outlet.
  • Configure, control, and monitor the unit via the easy-to-use web interface or HTTP REST API – makes it easy to control power from anywhere in the world.
  • Two digital inputs to monitor alarm contacts, environmental sensors, relays, and switch closures.
    • Shut down power when water or other environmental threats are detected.
  • Two digital open collector outputs for control of external devices – drive relays for process control, security, and environmental controls.
    • Digital outputs activate upon triggered event or via the user interface.
  • Monitor (ping) up to two IP network devices.
    • Unresponsive IP devices can be configured to trigger the outlet of PWR-RMT-RBT-C13 to power on/off/cycle.
  • Automatically configures network settings received from a connected DHCP server.
    • If a DHCP server is not found, the default static IP address will be used.
  • Dual password protection with separate user and administrator passwords.
  • Integrated mounting brackets for easy surface/wall mounting.
    • Optional DIN mounting available.
  • The Remote Reboot Switch is the ideal solution for many applications, such as:
    • Remote reboot of any device, router, server, kiosk, etc. The device need not be network attached.
    • Secure sensitive devices by keeping them powered off when not in use. This prevents hackers from detecting them at all times.
    • Power down equipment when not needed for power savings and to save on wear and tear.
    • Power up alert devices (sirens or lamps) or environmental systems (heaters, coolers, pumps, etc.)
  • Cascade an unlimited number of PWR-RMT-RBT-C13 using the digital I/O screw terminals.
    • For a single user interface, use with E-MNG-SH Self-Hosted Enterprise Environment Monitoring System Management Software.
  • Flash upgradeable.
  • Compatibility with E-2D, E-5D, and E-16D as an IP sensor.

Key Features:

  • Password protected for security
  • Auto scheduler allows for scheduling power on/off/reboot events
  • Auto-Ping feature: Automatically reboots connected device if there is no response
  • Easy to use web interface
  • Two digital inputs to monitor alarm contacts, environmental sensors, relays and switch closures
  • Two digital open collector outputs for control of external devices

Data Sheets (PDF)

Product Downloads PDF Icon

PWR-RMT-RBT-C13 Data Sheet

Part Numbers

Details

PWR-RMT-RBT-C13

Single Outlet Remote Power Reboot Switch with 2 digital inputs and 2 digital outputs

PWR-RMT-RBT-C13-D

DIN rail mount Single Outlet Remote Power Reboot Switch with 2 digital inputs and 2 digital outputs

Cables / Adapters

Details

IEC-IEC-2M

2m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)

IEC-IEC-5M

5m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)
