NPS Series

Product Overview

Network Power Switch PDU

Features Include:

  • Redundant power fallback automatic transfer switch (ATS models)
  • SNMP Control, Monitoring and Configuration with full MIB support
  • LDAP & RADIUS Authentication
  • Command Logging with Audit Trail
  • View More

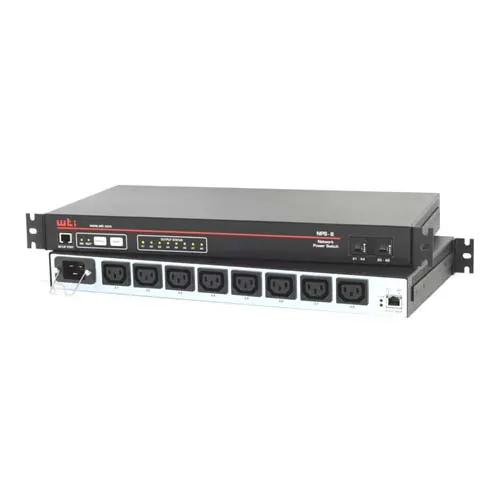

Remote Power & Console Server Management NPS Series Main Product Image
Remote Power & Console Server Management NPS Series Product Image 2

The NPS Network Power Switch is a network grade power distribution unit that also enables remote manage power switching and reboot functions, and tracks conditions and events in distant data centers and branch offices. Out-of-Band power control features allow your NOC to remotely reboot unresponsive network elements and power off unused outlets and devices from anywhere; even during network outages.

The NPS’s adaptable monitoring and alarm functions allow a more proactive approach to branch office management; enabling admins to detect potential signs of trouble at remote sites and implement preventative measures long before disaster strikes. Network Admins can also employ the NPS’s DevOps automation support capabilities to automate reboot and power down operations when unresponsive devices, high rack temperatures, power issues and other indications of developing problems are detected.

Key Features:

  • Redundant power fallback automatic transfer switch (ATS models)
  • SNMP Control, Monitoring and Configuration with full MIB support
  • LDAP & RADIUS Authentication
  • Command Logging with Audit Trail
  • In-Band, Out-of-Band and Local Port Access
  • Up to 16 10-Amp Individual Switched Outlets
  • Single or Dual 16-Amp, IEC320-C20 Power Input Connectors
  • Over-Temperature, Ping-No-Answer, Invalis-Access, Circuit Breaker Open, Lost Voltage and Power Cycle Alarms
  • Alarm Notification via Email
  • Ping-No-Answer Monitoring/Reboot
  • SSHv2 Encryption
  • SSL Web Browser (Https) for Set Up and Operation
  • Outlet Sequencing and Power Up Delays
  • User-Defined Power-Up Default Status

Data Sheets (PDF)

Product Downloads PDF Icon

NPS Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

VMR / NPS Series Technical Manual

Product Information

Applications

White Papers

Video

Media Releases

Part Numbers

Details

NPS-16HD16-3

2x 16 Amp Inputs, 4x 16 Amp Circuit Breaker, 16x IEC C13 Outlets

NPS-4HS15-2

1x (12A) IEC C14 Input, 4x IEC C13 Outlets

NPS-8H20-ATS-2

2x 20 Amp Inputs, 2x 16 Amp Circuit Breaker, 8x IEC C13 Outlets, Automatic Transfer Switch

NPS-8HD16-3

2x 16 Amp Inputs, 2x 16 Amp Circuit Breaker, 8x IEC C13 Outlets

NPS-8HS16-3

1x 16 Amp Inputs, 2x 16 Amp Circuit Breaker, 8x IEC C13 Outlets

NPS-8HD20-2

Network power switch 100-240VAC, 8 outlets, 2x20A input

Cables / Adapters

Details

IEC-10A/K3744-010

10A 3pin mains plug to IEC-C19 female connector. Input Power Cable for 16A Units

IEC-15A/K3744-015

15A 3pin mains plug to IEC-C19 female connector. Input Power Cable for 16A Units

IEC-IEC-2M

2m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)

IEC-IEC-5M

5m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)
