PRODUCT NAVIGATION

NBB Series

Product Overview

Vertical Outlet Metered Switched Power Distribution Unit (PDU)

Features Include:

  • On/Off/Reboot/Default Switching
  • Outlet Sequencing & Power Up Delays
  • User-Defined Power-Up Default Status
  • Ping Watchdog with Auto Reboot
  • View More
Remote Power & Console Server Management NBB Series Main Product Image
Remote Power & Console Server Management NBB Series Product Image 2

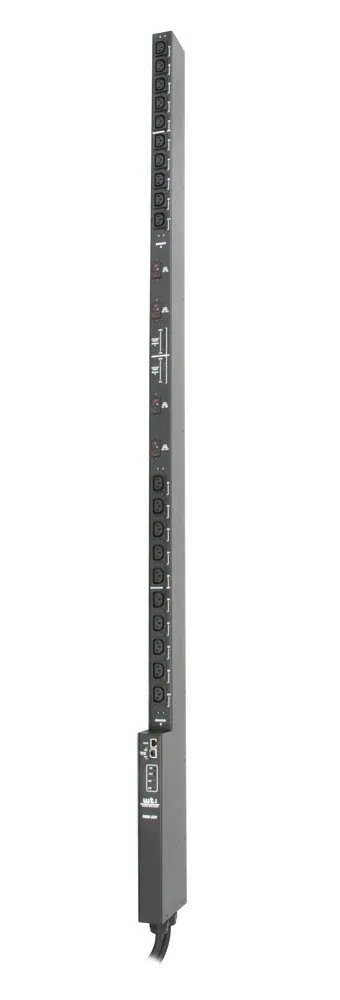

Remote Power & Console Server Management NBB Series Product Image 3

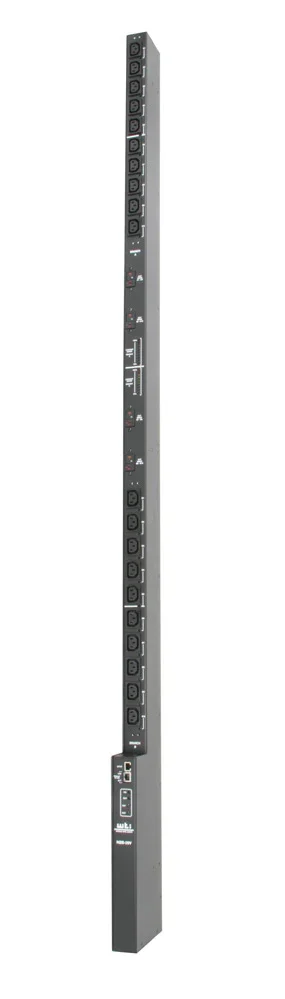

Remote Power & Console Server Management NBB Series Product Image 4

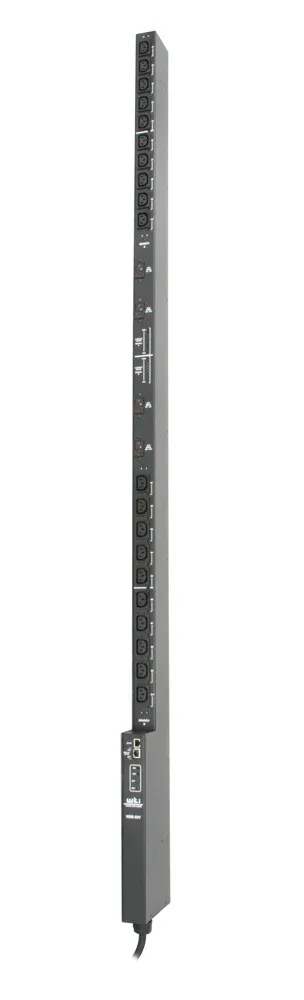

Remote Power & Console Server Management NBB Series Product Image 5

Key Features:

  • On/Off/Reboot/Default Switching
  • Outlet Sequencing & Power Up Delays
  • User-Defined Power-Up Default Status
  • Ping Watchdog with Auto Reboot
  • Scheduled On/Off/Reboot Switching
  • Over-Temperature Alarms
  • In-Band (10/100Base-T Ethernet Port), Out-of-Band (External Modem Ready), Local (RJ45 RS232 SetUp Port)
  • SSHv2 Encryption, Embedded Validated FIPS 140-2 Cryptographic Module, HTTPS/SSL Secure Web
  • Dual 16/32 Amp In-Feeds

Data Sheets (PDF)

Product Downloads PDF Icon

NBB-20VD16-3 Data Sheet

VIEW PDF

Part Numbers

Details

NBB-20VD16-3

Network Boot Bar Dual (2) 16 Amp Inputs (20) IEC C13 Outlets. 200 - 240VAC Operation

NBB-20VD32-3

Network Boot Bar Dual (2) 32 Amp Inputs (20) IEC C13 Outlets. 200 - 240VAC Operation

NBB-20VS16-3

Network Boot Bar Single (1) 16 Amp Input (20) IEC C13 Outlets. 200 - 240VAC Operation

NBB-20VS32-3

Network Boot Bar Single (1) 32 Amp Input (20) IEC C13 Outlets. 200 - 240VAC Operation

Cables / Adapters

Details

IEC-15A/K3744-015

15A 3pin mains plug to IEC-C19 female connector. Input Power Cable for 16A Units

IEC-IEC-2M

2m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)

IEC-IEC-5M

5m Output Power Cable IECI Male to IECI Female (IEC320-C13/C14)
