CPM-800 Series

Product Overview

8 Port Console Server + 8 Port Power Control + Automatic Transfer Switch

Features Include:

  • Access console ports via IP, serial and dial-up
  • SSH and dial-back security
  • SNMP Control, Monitoring and Configuration
  • Supports Both IPv4 and IPv6
  • View More

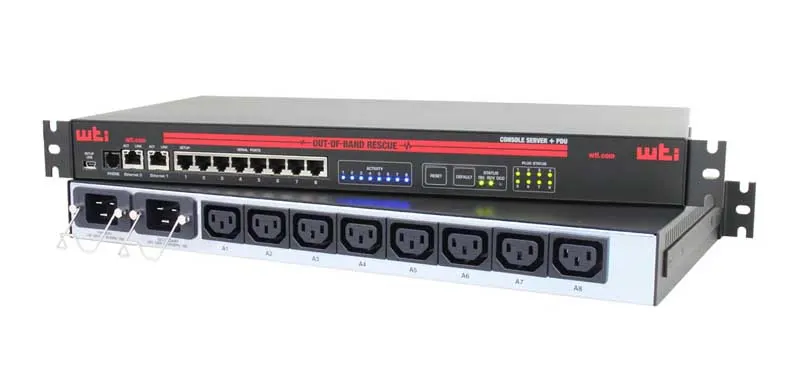

Remote Power & Console Server Management CPM-800 Series Main Product Image
Remote Power & Console Server Management CPM-800 Series Product Image 2

The CPM combines two essential network remediation tools into one full featured console server and pdu device. Available with multiple connectivity and out-of-band access options, the CPM is a comprehensive solution for monitoring and troubleshooting IT infrastructure at any site, even when the network is down.

Resilient connectivity over secondary Ethernet and/or internal cellular ensures 24/7 access to vital network elements when you need it most…during network outages. The CPM provides secure, reliable, in-band and out-of-band access to console ports and power switching on routers, switches and firewalls without a truck roll or service call.

Automation features allow for proactive network management, avoiding network disasters before they disrupt access to essential services and data, improving network resilience, ensuring low latency performance and enhancing business continuity.

Key Features:

  • Access console ports via IP, serial and dial-up
  • SSH and dial-back security
  • SNMP Control, Monitoring and Configuration
  • Supports Both IPv4 and IPv6
  • Optional: Dual Gigabit Ethernet Ports (E), Built-In Automatic Power Transfer Switch (A), Current Monitoring (C), Internal Modem (M)
  • Includes Enterprise Management Software
  • IP-to-Serial Console Management:
  • 8 RS232 RJ45 Serial Console Ports
  • SSH/Telnet/Raw-Socket TCP Connection
  • SNMP Control, Monitoring & Configuration (Supports SNMP Versions 1, 2C and 3)
  • Ctrl+Break Command Block Options
  • Reverse/Outbound SSH
  • Remote Power Management:
  • Dual 20 Amp Power Supplies
  • Automatic Transfer Switch (ATS) Models For Failsafe Power
  • Per Outlet Current Metering & Alarming (Optional)
  • On/Off/Reboot/Default/Load Shed Switching
  • Outlet Sequencing & Power Up Delays
  • Scheduled Outlet Switching/Reboot
  • Ping Watchdog with Auto Reboot
  • 8 Switchable NEMA 5-15R or IEC C13 Outlets
  • 120 VAC and 240 VAC Models
  • In-Band/Out-of-Band Access:
  • Single or Dual 10/100/1000 Base-T Ethernetwith Fallback Capabilities
  • Optional 56k v.92 Modem with Dialback Security
  • Local Access (RJ45 RS232 & USB Mini Set-up Ports)
  • Supports Both IPv4 and IPv6
  • Security & Authentication:
  • HTTPS/SSL/TLS, SSHv2, SNMPv3
  • Embedded Validated FIPS 140-2 Cryptographic Module
  • LDAP/Kerberos/RADIUS/TACACS+
  • Port- & Plug Specific Password Protection
  • Multi-Level Subscriber Directory
  • IP Address Filtering
  • Invalid Access Lockout & Alarm

Data Sheets (PDF)

Product Downloads PDF Icon

CPM-1600/800 Series Data Sheet

Detailed Specifications...

Product Information

Applications

Part Numbers

Details

CPM-800-2

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Split Bus

CPM-800-2-A

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, ATS

CPM-800-2-C

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Split Bus, Current Monitoring

CPM-800-2-E

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Split Bus

CPM-800-2-M

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Split Bus, Internal Modem

CPM-800-2-EM

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Split Bus, Internal Modem

CPM-800-2-EC

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Split Bus, Current Monitoring

CPM-800-2-EA

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, ATS

CPM-800-2-CM

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Split Bus, Current Monitoring, Internal Modem

CPM-800-2-CA

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Current Monitoring, ATS

CPM-800-2-AM

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, ATS, Internal Modem

CPM-800-2-CAM

240VAC 8 Console Ports, 8 Power Outlets, Single Ethernet, Current Monitoring, ATS, Internal Modem

CPM-800-2-EAM

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, ATS, Internal Modem

CPM-800-2-ECA

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Current Monitoring, ATS

CPM-800-2-ECM

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Split Bus, Current Monitoring, Internal Modem

CPM-800-2-ECAM

240VAC 8 Console Ports, 8 Power Outlets, Dual Ethernet, Current Monitoring, ATS, Internal Modem

Accessories

Details

W4G-EUA Series

4G LTE Cellular Add-On for Console + PDU Combos
