AMK501 Series

Product Overview

1U Single Rail 17.3", 1920x 1080 VGA/DVI/HDMI USB/PS2 LCD Keyboard drawer, 410mm depth

Features Include:

  • AC and DC power options
  • Meets EIA310c & IEC-3 specifications
  • 1U, Single Slide Rail, built-in 17.3" VGA LCD keyboard drawer. Optional: DVI or HDMI
  • Built-in 17.3", 1920x 1080 LCD, option: 17.3", 1600x 900 LCD
  • View More

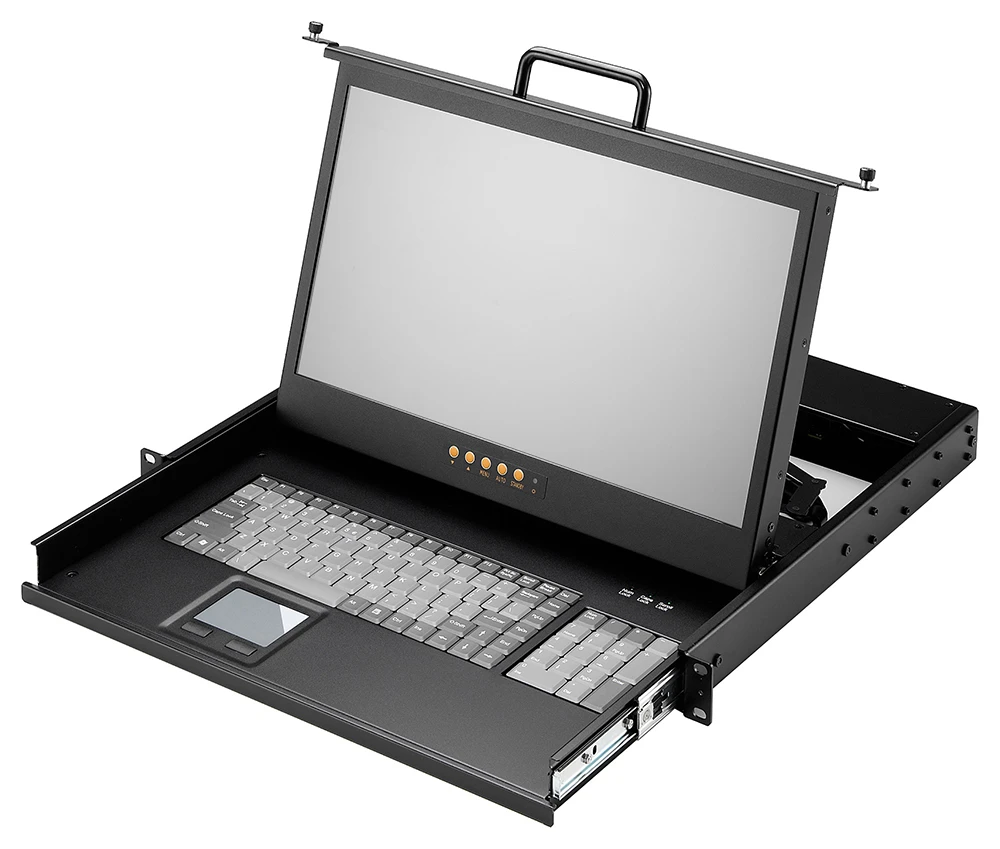

Rack Mount KVM Drawers AMK501 Series Main Product Image
Rack Mount KVM Drawers AMK501 Series Product Image 2

Key Features:

  • AC and DC power options
  • Meets EIA310c & IEC-3 specifications
  • 1U, Single Slide Rail, built-in 17.3" VGA LCD keyboard drawer. Optional: DVI or HDMI
  • Built-in 17.3", 1920x 1080 LCD, option: 17.3", 1600x 900 LCD
  • USB or PS2 interface keyboard and touchpad for connecting to PC ports
  • 1U, 410mm short depth and lightweight
  • 2 thumb screws to lock the 17.3" LCD monitor
  • 104 key industrial keyboard and touchpad
  • Tempered glass protect LCD screen

Data Sheets (PDF)

Product Downloads PDF Icon

AMK501 Series Data Sheet

Part Numbers

Details

AMK501-17PB

1U rack mounted keyboard monitor drawer with 17 in widescreen 1600x900 LCD screen with VGA & PS2 keyboard and touchpad, black

AMK501-17UB

1U rack mounted keyboard monitor drawer with 17 in widescreen 1600x900 LCD screen with VGA & USB keyboard and touchpad, black

AMK501-17UBH

1U rack mounted keyboard monitor drawer with 17 in widescreen 1600x900 LCD screen with HDMI & USB keyboard and touchpad, black

AMK501-17WPB

1U rack mounted keyboard monitor drawer with 17 in widescreen 1920x1080 LCD screen with VGA & PS2 keyboard and touchpad, black

AMK501-17WUB

1U rack mounted keyboard monitor drawer with 17 in widescreen 1920x1080 LCD screen with VGA & USB keyboard and touchpad, black

AMK501-17WUBUSS

1U rack mounted keyboard monitor drawer with 17 in widescreen 1000nits sunlight readable 1920x1080 LCD screen with VGA & USB keyboard and touchpad, black

AMK501-17WUBV

1U rack mounted keyboard monitor drawer with 17 in widescreen 1920x1080 LCD screen with DVI & USB keyboard and touchpad, black

AMK501-17WUH

1U rack mounted keyboard monitor drawer with 17 in widescreen 1920x1080 LCD screen with HDMI & USB keyboard and touchpad, black

Other Options

Details

AMK-24VDC-POW

Built-in DC Power Option for AMK500/800 with 24~48VDC power input
