ABOS-921D Series

The ABOS-921D is a rugged, high-performance 21.5" Panel PC with integrated button controls, designed to deliver intuitive and tactile control in demanding industrial environments. Powered by 12th or 13th Gen Intel® Core™ i3/i5 (Alder Lake-U) processors and equipped with a fully sealed IP65-rated chassis, it combines computing power with physical interface elements that enhance usability, safety, and responsiveness on the factory floor.

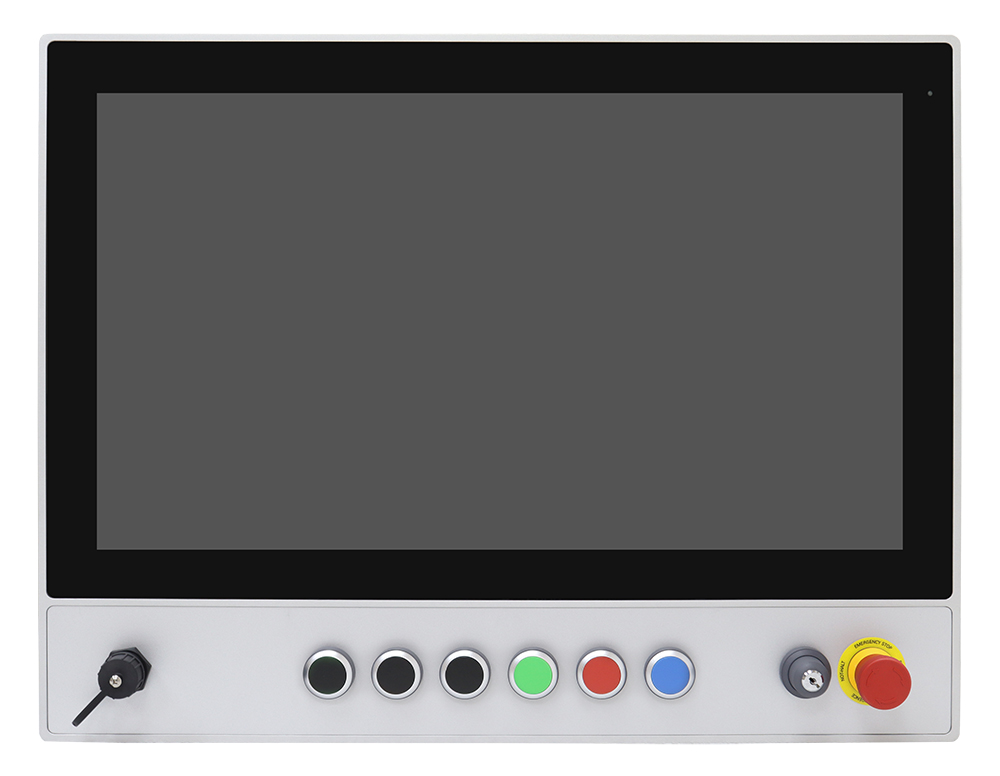

Ideal for smart manufacturing, process control, and machine automation, the ABOS-921D features integrated push-button controls—including start, stop, and reset—as well as three programmable buttons for custom functions. An emergency stop button and optional key switch provide added safety and security. Designed for gloved operation and wet or dusty conditions, its tactile interface improves accuracy and productivity where traditional touchscreens may fall short.

A 21.5" Full HD display with projected capacitive multi-touch technology ensures responsive, and glove-compatible input, even in harsh or wet environments. A front-facing waterproof USB 2.0 port enables fast device connection, such as for keyboards or USB drives, while comprehensive rear I/O includes 2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x RS-232/422/485 (DB9), 1 x HDMI (up to 4096 × 2304 @ 60 Hz), and 2 x Gigabit Ethernet ports (Intel® I219LM and I210AT) for flexible integration.

With support for up to 64GB of DDR4 memory, M.2 NVMe and 2.5" SATA storage, and wide-range DC input (9–36V), the ABOS-921D delivers robust computing performance and long-term reliability in industrial settings. The system is also built to operate reliably in environments with temperatures ranging from 0°C to 50°C, making it suitable for use in both temperature-controlled and harsh conditions.

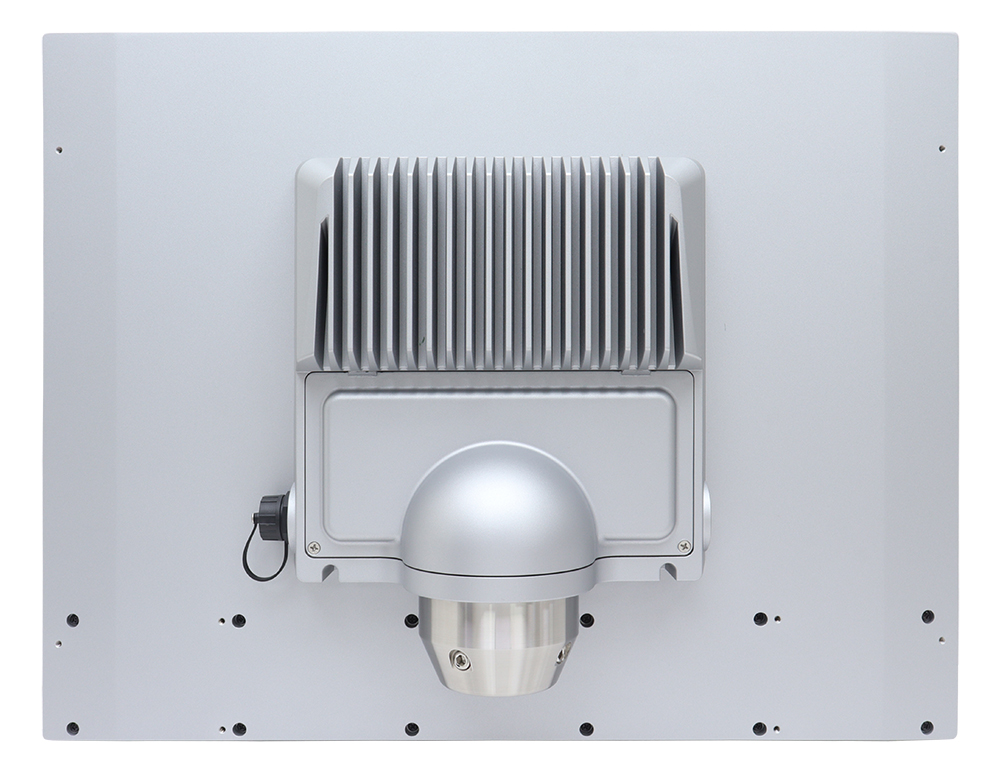

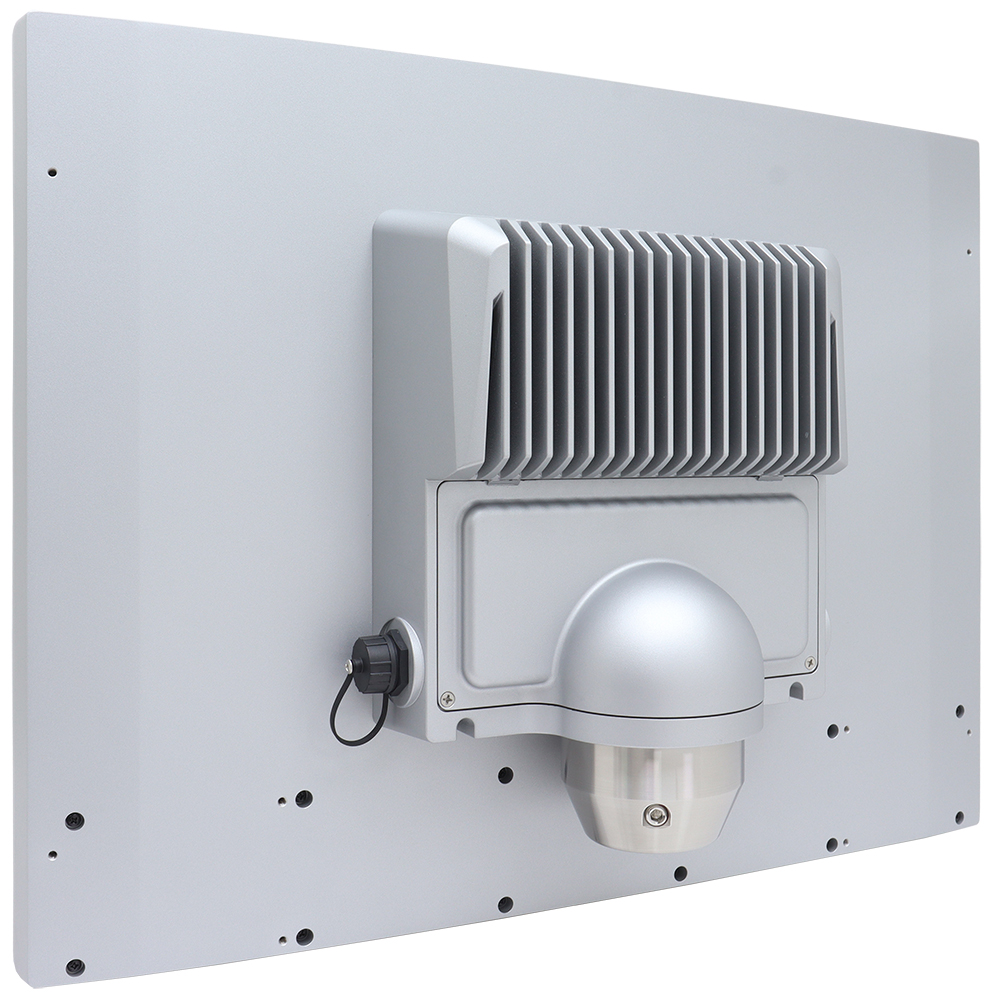

It also features a slim, gap-free front bezel, a rugged aluminium chassis, and an updated back cover with enhanced heat dissipation, and improved configuration. It also supports top or bottom swing arm mounting and optional accessories like left/right handles and a keyboard holder. Whether used in packaging systems, production lines, or machine control stations, the ABOS-921D improves operational efficiency, enhances productivity and increases safety.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 21.5" Full HD (1920 x 1080) TFT-LCD with 16:9 widescreen format
• Projected capacitive multi-touch screen with glove-friendly operation
• 12th/13th Gen Intel® Core™ i3/i5 (Alder Lake-U) processors
• 2 x DDR4‑3200 MHz SO‑DIMM slots, up to 64 GB RAM
• 1 x M.2 M‑Key 2280 (PCIe 3.0 x4) for SSD, 1 x 2.5" SATA HDD bay
• Integrated TPM 2.0 and AMI BIOS
• Built-in emergency stop button and key switch (optional)
• Default push buttons: Start (Green), Stop (Red), Reset (Blue); plus 3 optional custom buttons
• Waterproof USB 2.0 ports (front and rear), plus 2 x USB 3.2 Gen 1 and 2 x USB 2.0
• 1 x RS-232/422/485 COM port with power select and BIOS-configurable mode
• 1 x HDMI (up to 4096 × 2304 @ 60Hz)
• Dual GbE LAN (Intel® I219LM + I210AT)
• Fully sealed IP65 front with slim, gap-free bezel design
• Operating temperature: 0°C to 50°C
• Wide 9–36V DC power input via terminal block
• Swing arm (top/bottom) and VESA mounting support
• Optional left/right handles and keyboard holder
• OS support: Windows 10 IoT LTSC, Windows 11 IoT, Ubuntu 22.04 (Kernel 5.15)
