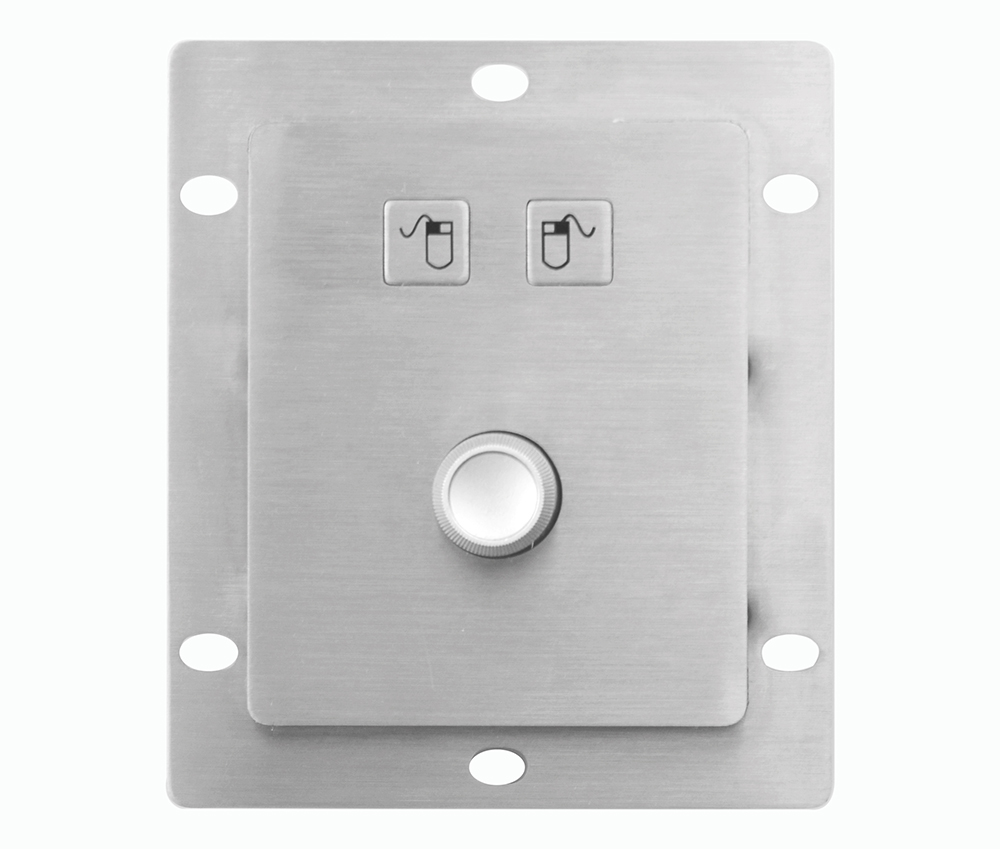

HP01

The HP01 is an industrial-grade Hula Point pointing device designed for reliable navigation in harsh operating environments. Housed in durable, vandal-resistant stainless steel, this compact input solution features integrated left and right-click buttons. The device operates via an intuitive joystick-style mechanism, allowing operators to control the on-screen mouse pointer smoothly in any direction simply by moving and holding the central lever. Driven by an advanced silicone switching element, the unit delivers responsive tactile feedback with an actuation force of 2N, ensuring precise control across specialised industrial applications.

Engineered for challenging environments, the pointing device features a robust design that protects internal electronics against fine particulates and liquid ingress. The front surface is built to withstand physical impacts, making it highly suitable for public-facing or unsupervised installations. The key switches are rated for more than 5 million operations, providing a long-term service life exceeding 5 years under continuous operation.

Connectivity is straightforward via a standard USB interface, operating on a 5V DC power supply. The HP01 features an internal aluminium alloy mounting rack to ensure structural rigidity when integrated into enclosures. All button and housing legends are laser-engraved to prevent fading or wear from repeated cleaning or industrial chemical exposure.

With a compact footprint measuring 97mm x 82mm, the unit offers maximum flexibility for space-constrained console designs. It is available in both panel mount configurations for seamless integration into existing control panels, or as a standalone desktop model. The device operates reliably across a temperature range of -10°C~60°C, supporting stable performance in both refrigerated and high-heat environments.

The HP01 is engineered for deployment in high-hygiene and heavy industrial sectors, including medical facilities, laboratories, food processing plants, and marine navigation suites. It is equally suited for integration into self-service kiosks, CNC machinery, and heavy factory automation systems.

To learn more, download the datasheet or request a quote today.

Key Features:

• Rugged Construction: Vandal-resistant stainless steel housing, buttons, and joystick with an aluminium alloy mounting rack
• Joystick-Style Operation: Intuitive omnidirectional pointer control managed by moving and holding the central lever in any direction
• Environmental Protection: IP65 and NEMA 4X rated for dustproof and waterproof performance in harsh environments
• High Durability: Silicone switching technology offering a lifetime of over 5 million operations and a 5-year overall lifespan

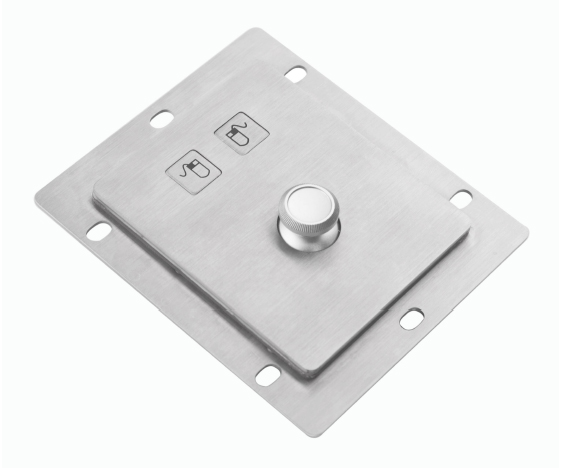

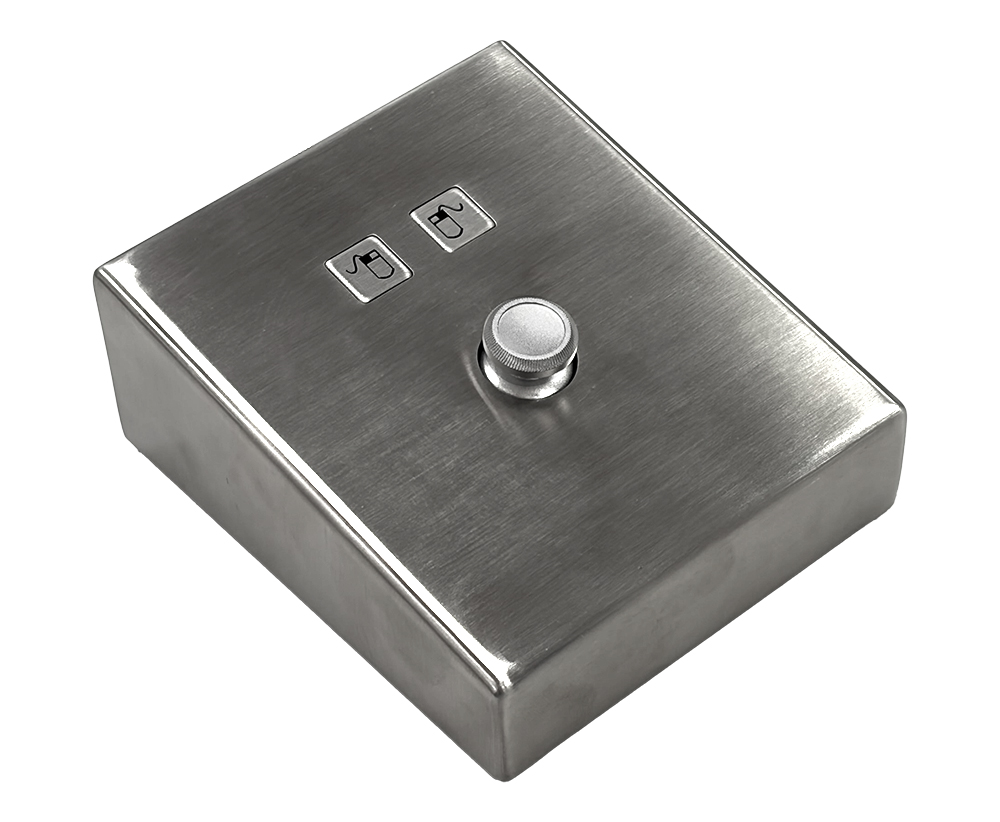

• Flexible Mounting: Available in both panel mount and desktop configurations to suit diverse installation requirements
• Industrial Temperature Range: -10°C~60°C
• Laser-Engraved Legends: Highly durable lettering resistant to wear, abrasion, and aggressive cleaning regimes
• Simple Integration: Plug-and-play USB connection operating on standard +5V DC supply voltage
