UNIMUX-HD4K18GB-xx

Product Overview

4K 18Gbps HDMI USB KVM Switch: 4/8/16/24/32-Port, Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4, HDCP 2.2 Compliant

Features Include:

  • 4/8/16/24/32-Port Options Available
  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 18 Gbps
  • HDMI 2.0, USB 2.0
  • View More
KVM Switches UNIMUX-HD4K18GB-xx Main Product Image
KVM Switches UNIMUX-HD4K18GB-xx Product Image 2
KVM Switches UNIMUX-HD4K18GB-xx Product Image 3
KVM Switches UNIMUX-HD4K18GB-xx Product Image 4
KVM Switches UNIMUX-HD4K18GB-xx Product Image 5

The UNIMUX™ 4K 18Gbps HDMI USB KVM Switch allows a user to control up to 32 HDMI 2.0 Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse, and 4K HDMI monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA).

  • HDMI features supported:

    • HDMI 2.0

    • Up to 12-bit Deep Color on input and 8-bit on output.

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X

    • RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0

    • Bandwidth up to 600 MHz (18Gbps)

    • 3D (1080p @60Hz)

    • HDR

  • HDCP 2.2 compliant.

  • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.

  • Compatible with USB computers (PC and MAC) with HDMI outputs.

  • Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.

  • Two transparent USB 2.0 ports, in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.

    • Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.

  • High quality steel construction.

  • Flash upgradeable.

  • Rackmount kit included.

  • Cable management tray included.



4K 18GB HDMI USB KVM Switch

4K 18GB HDMI USB KVM Switch



Key Features:

  • 4/8/16/24/32-Port Options Available
  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 18 Gbps
  • HDMI 2.0, USB 2.0
  • Operating Temperature Range: 0 to 40°C
  • HDCP 2.2 Compliant
  • Rackmount Kit Included

Data Sheets (PDF)

Product Downloads PDF Icon

UNIMUX-HD4K18GB-xx Data Sheet

Part Numbers

Details

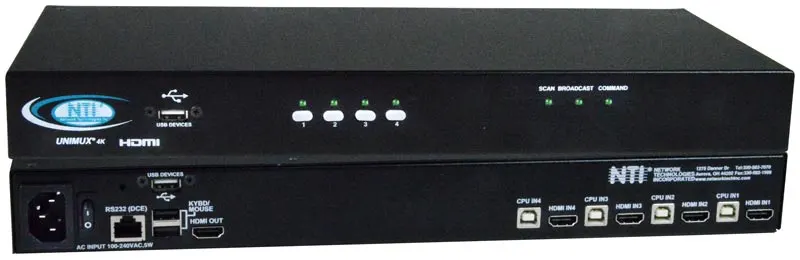

UNIMUX-HD4K18GB-4

1RU 4 port HDMI 4K x 2K @ 60Hz, USB KVM switch

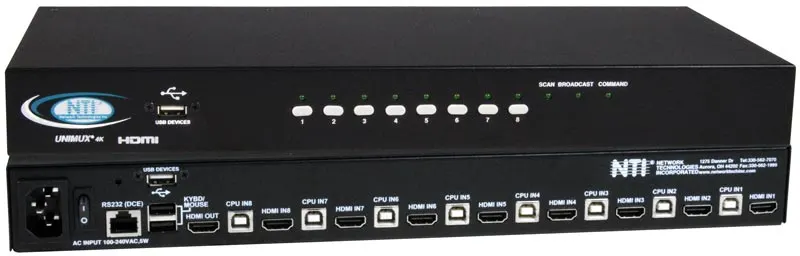

UNIMUX-HD4K18GB-8

1RU 8 port HDMI 4K x 2K @ 60Hz, USB KVM switch

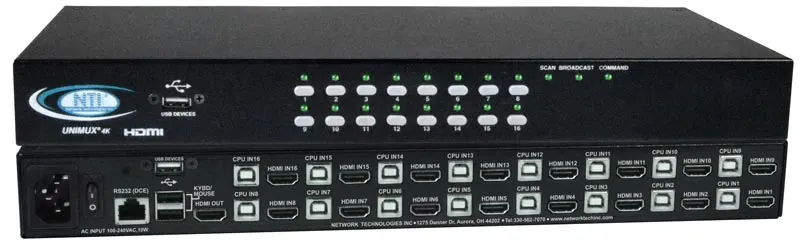

UNIMUX-HD4K18GB-16

1RU 16 port HDMI 4K x 2K @ 60Hz, USB KVM switch

UNIMUX-HD4K18GB-24

2RU 24 port HDMI 4K x 2K @ 60Hz, USB KVM switch

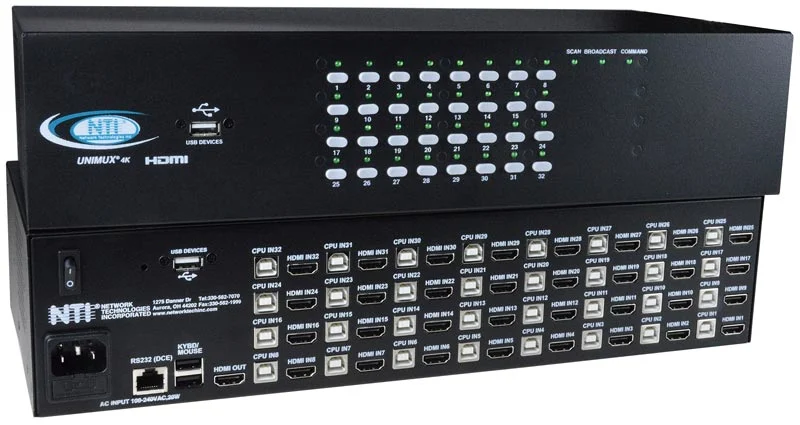

UNIMUX-HD4K18GB-32

2RU 32 port HDMI 4K x 2K @ 60Hz, USB KVM switch
