ST-FOUSB4K18GB-LC

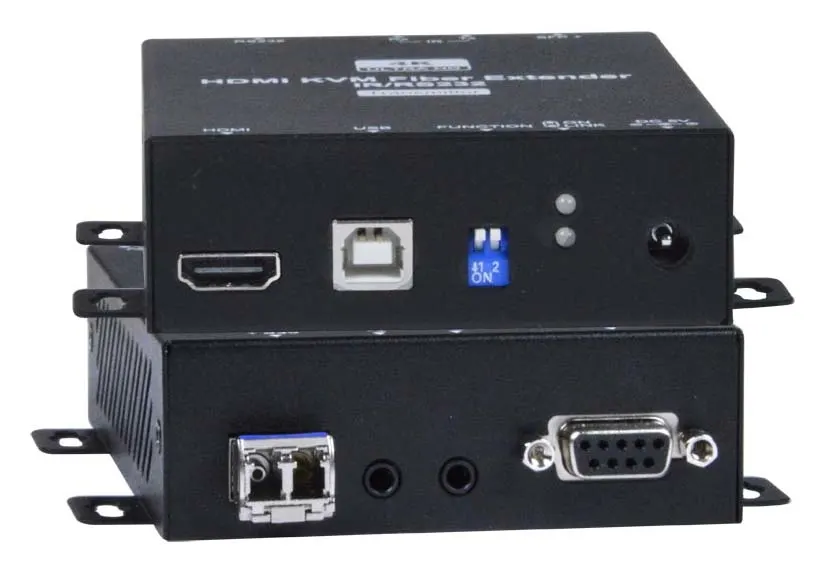

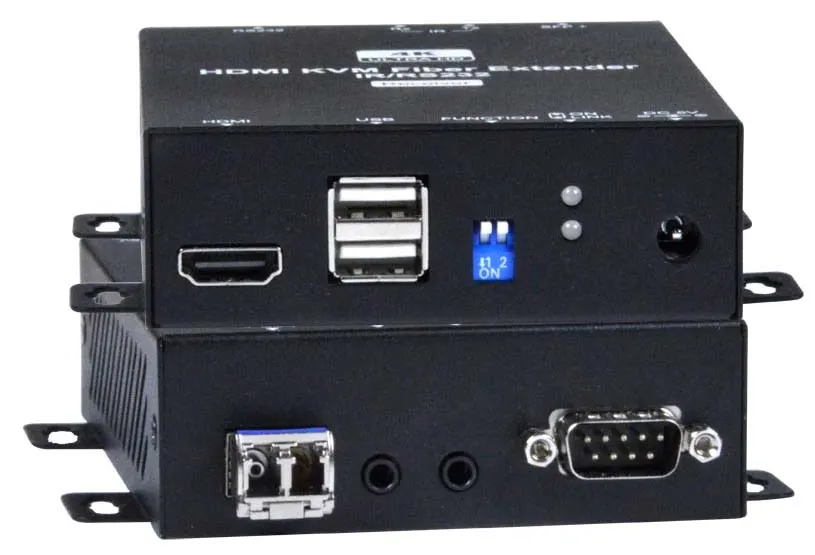

The XTENDEX® 4K 18Gbps HDMI USB KVM Extender via Fiber provides remote KVM (USB keyboard, USB mouse and 4Kx2K UHD HDMI monitor) access to a USB computer up to 6,561 feet (2000 meters) away via a duplex singlemode LC fiber optic cable. Each KVM extender consists of a local unit that connects to an Ultra-HD 4Kx2K 60Hz 4:4:4 computer, and a remote unit that connects to a keyboard, monitor and mouse.

• Signal transmission via two-strand singlemode LC fiber optic cable.
  • Extend HDCP-encrypted video signal up to 1,640 feet (500 meters).
  • Extend unencrypted video signal up to 6,561 feet (2000 meters).
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
• HDMI features supported:
  • HDMI 2.0
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
  • Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, ATMOS, and DTS:X
  • Up to 48-bit Deep Color
  • Bandwidth up to 600 MHz (18Gbps)
  • 3D
  • HDR
• HDCP 2.2 compliant.
• USB ports for keyboard, mouse, and touch screen.
  • Keyboard and mouse are hot-pluggable.
• Use the DIP switch on the transmitter and receiver to select the USB, IR, and RS232 extension functions.
  • Only one function can be used at a time.
• Bi-directional Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per the installation.
• Supports full-duplex RS232 up to 115200 baud.
• Integrated mounting brackets for easy surface/wall mounting.

Key Features:

• Signal transmission via two-strand singlemode LC fiber optic cable.
• Extend HDCP-encrypted video signal up to 1,640 feet (500 meters).
• Extend unencrypted video signal up to 6,561 feet (2000 meters).
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
• HDMI features supported: HDMI 2.0, RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0, Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, ATMOS, and DTS:X, Up to 48-bit Deep Color, 3D, HDR
• HDCP 2.2 compliant.
• USB ports for keyboard, mouse, and touch screen.
• Keyboard and mouse are hot-pluggable.
• Use the DIP switch on the transmitter and receiver to select the USB, IR, and RS232 extension functions.
• Bi-directional Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per the installation.
• Integrated mounting brackets for easy surface/wall mounting.
• Bandwidth up to 600 MHz (18Gbps)
• Only one function can be used at a time.
• Supports full-duplex RS232 up to 115200 baud.
