ST-C6USB4K18GB-230T

The XTENDEX® 4K 18Gbps HDMI USB KVM Extender via One CAT6/6a/7 Cable provides remote KVM (USB keyboard, USB mouse, and 4Kx2K 60Hz UHD HDMI monitor) access to a USB computer up to 230 feet (70 m) away via CAT6/6a/7 cable.

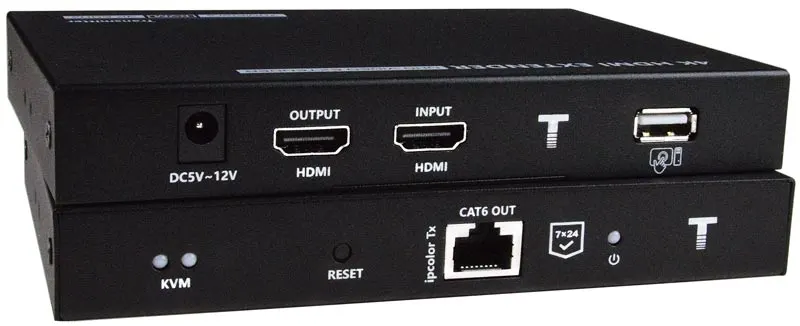

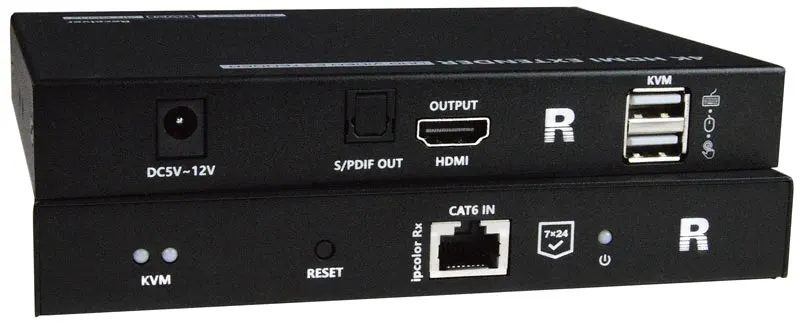

Each KVM extender consists of a local unit that connects to a computer and a local display via the HDMI loop output; and a remote unit that connects to an HDMI USB touchscreen monitor or a standard HDMI monitor, USB keyboard, and USB mouse. The local and remote units are interconnected via CAT6/6a/7 cable.

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz and 4096x2160 @24/25Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
• Signal transmission via one CAT6/6a/7 cable up to 230 feet (70 m).
  • Zero latency.
• HDMI features supported:
  • HDMI 2.0 compliant.
  • Up to 36-bit Deep Color
  • LPCM, Dolby Digital, and DTS
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
  • Bandwidth up to 18 Gbps
  • 3D
  • HDR10
• HDCP 2.2 and 1.4 compliant.
• Supports local and remote HDMI displays.
• Built-in default EDID table.
• Supports HDMI-embedded digital audio and SPDIF digital audio output.
• Two USB ports for keyboard, mouse, or touch screen monitor.
  • Compliant with USB 1.1 (low/full speed) standards.
  • Keyboard and mouse are hot-pluggable.
• Supports Plug-and-Play specification.
• Built-in lightning, surge, and ESD protection.
• Mounting brackets included for easy surface/wall mounting.

Key Features:

• 4K 18Gbps HDMI USB extender
• Supports local and remote HDMI displays
• 2 USB ports for keyboard, mouse or touch screen
• One Cat 6/6a/7 cable up to 70m (230 feet)
