ST-C5USBV-300 Series

Product Overview

Dual Access USB KVM Extender via CAT5. Extend USB Keyboard, USB Mouse and VGA + Optional Stereo Audio

Features Include:

  • Supports local and remote access
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5/5e/6 cable
  • Simple On Screen Display (OSD) menus allow users to configure the extender, adjust for video skew, and fine-tune video quality for optimal video resolution
  • Maximum 1024x768 video resolution at 300 feet; higher resolutions are supported at shorter distances up to 1920x1440
  • View More

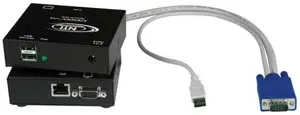

KVM Extenders & Splitters ST-C5USBV-300 Series Main Product Image
KVM Extenders & Splitters ST-C5USBV-300 Series Product Image 2

The XTENDEX® ST-C5USBV-300 USB KVM extender extends a USB keyboard/mouse and VGA display up to 300 feet via CAT5/5e/6/6a cable. Each ST-C5USBV-300 consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6/6a cable.

  • Supports local and remote access.
  • Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6/6a extension length).
  • Supports resolutions to 1920x1440.
  • High quality, rugged steel construction with durable powder coat finish.
  • Keyboard and mouse are hot-pluggable.
    • Works with USB keyboards and mice only – does not support other USB devices.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Built-in surge protection.
  • Available with optional stereo audio.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Allows users to back-rack broadcast quality servers without impact to post-production operations.

Key Features:

  • Supports local and remote access
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5/5e/6 cable
  • Simple On Screen Display (OSD) menus allow users to configure the extender, adjust for video skew, and fine-tune video quality for optimal video resolution
  • Maximum 1024x768 video resolution at 300 feet; higher resolutions are supported at shorter distances up to 1920x1440
  • Keyboard and mouse are hot-pluggable
  • Keep-alive keyboard/mouse emulation for flawless operation
  • Color-coded LEDs on both the local and remote units indicate power status and verify communication is established between the units
  • Built-in surge protection
  • 300 foot extender
  • Optional Stereo Audio Support

Data Sheets (PDF)

Product Downloads PDF Icon

ST-C5USBV-300 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

ST-C5USBV/A-300 Technical Manual

White Papers (PDF)

Product Downloads PDF Icon

KVM Switch Solutions

A guide to evaluating KVM Switches...

FAQs

White Papers

Part Numbers

Details

ST-C5USBV-300

USB KVM Extender via CAT5 (300 feet)

ST-C5USBVA-300

USB KVM with Stereo Audio Extender via CAT5 (300 feet)

Local Modules (Transmitters)

Details

ST-2C5USBV-L-300

USB KVM Local Transmitter Supporting 2 Remote Users (No Local User)

ST-C5USBVA-L-300

USB KVM Local Transmitter with Stereo Audio

ST-C5USBV-L-300

USB KVM Local Transmitter

Remote Modules (Receivers)

Details

ST-C5USBVA-R-300

USB KVM Receiver (Remote Unit) with Stereo Audio. For use with KVM switches and extenders

ST-C5USBV-R-300

USB KVM Receiver (Remote Unit). For use with KVM switches and extenders
