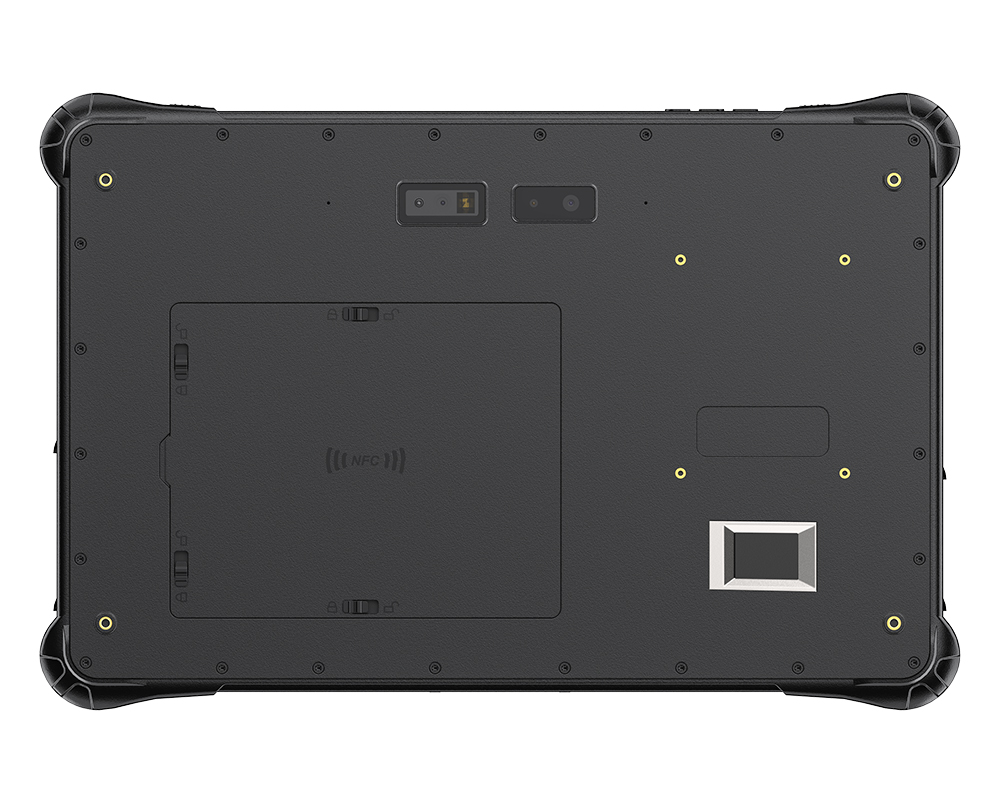

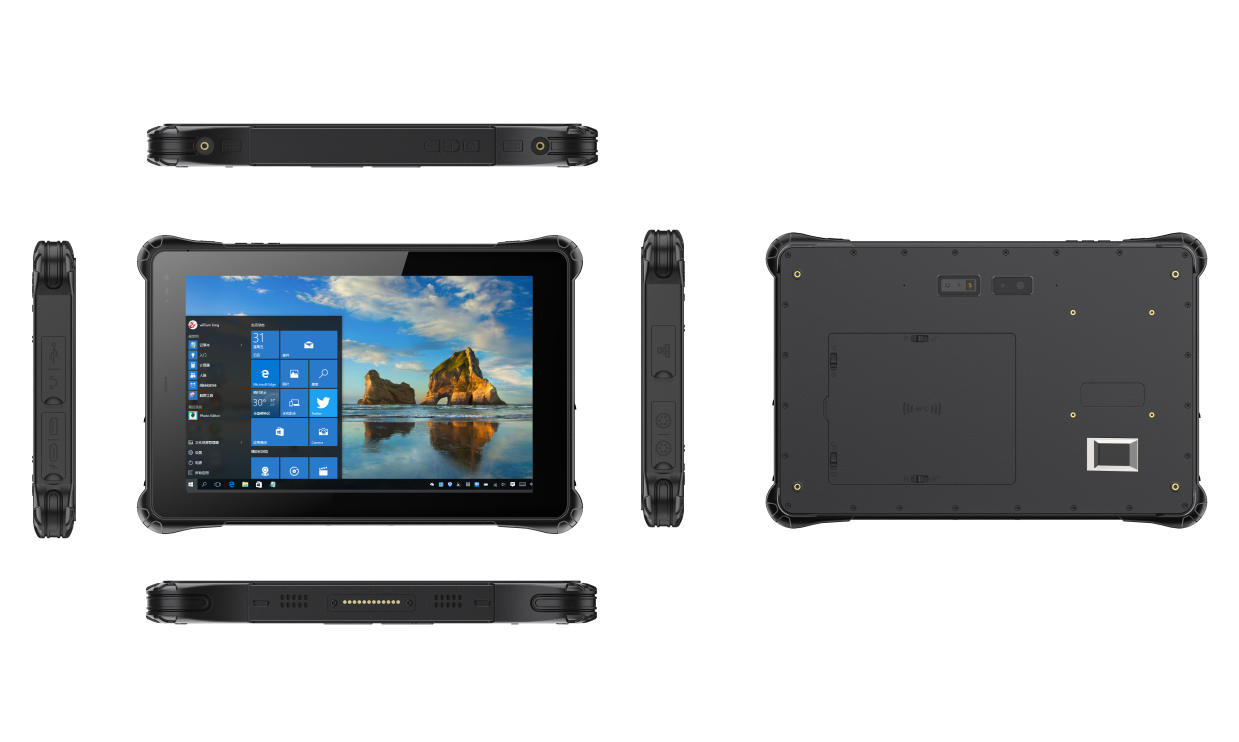

RTC-I101

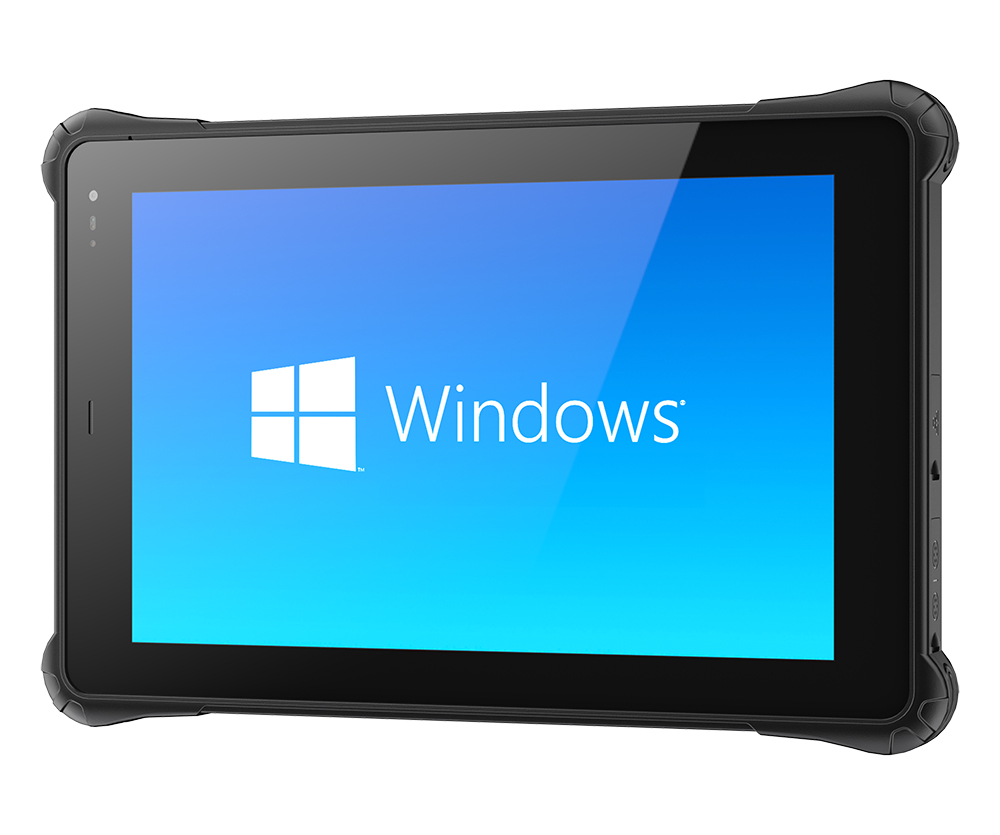

The RTC-I101 is a highly durable 10.1" rugged Windows tablet engineered for industrial, field-service, warehousing, and outdoor applications where reliability and mobility are essential. Its G+G capacitive multi-touch display supports stylus, glove, and wet-touch input, ensuring accurate operation in all conditions. The screen is protected by tough Gorilla Glass with 7H hardness to resist scratches and impact, while two resolution options, 1280 x 800 or 1920 x 1200 (optional), provide flexibility for different workloads. With brightness levels up to 700nits, the display remains clear and readable even in direct sunlight, making it ideal for outdoor inspections and mobile workflows.

Powered by the Intel® Celeron® N5100 processor (Jasper Lake) with up to 2.8 GHz burst performance and Intel® UHD Graphics Gen 11 LP, the RTC-I101 delivers efficient processing for Windows 10 or Windows 11 applications. The device includes 4GB LPDDR4 memory (upgradeable to 8GB) and 64GB SSD storage (with an optional 128GB upgrade), providing smooth multitasking and reliable data access. A 5MP front camera and 8MP rear autofocus camera support field documentation, while the built-in G-sensor assists with device orientation and motion-based applications.

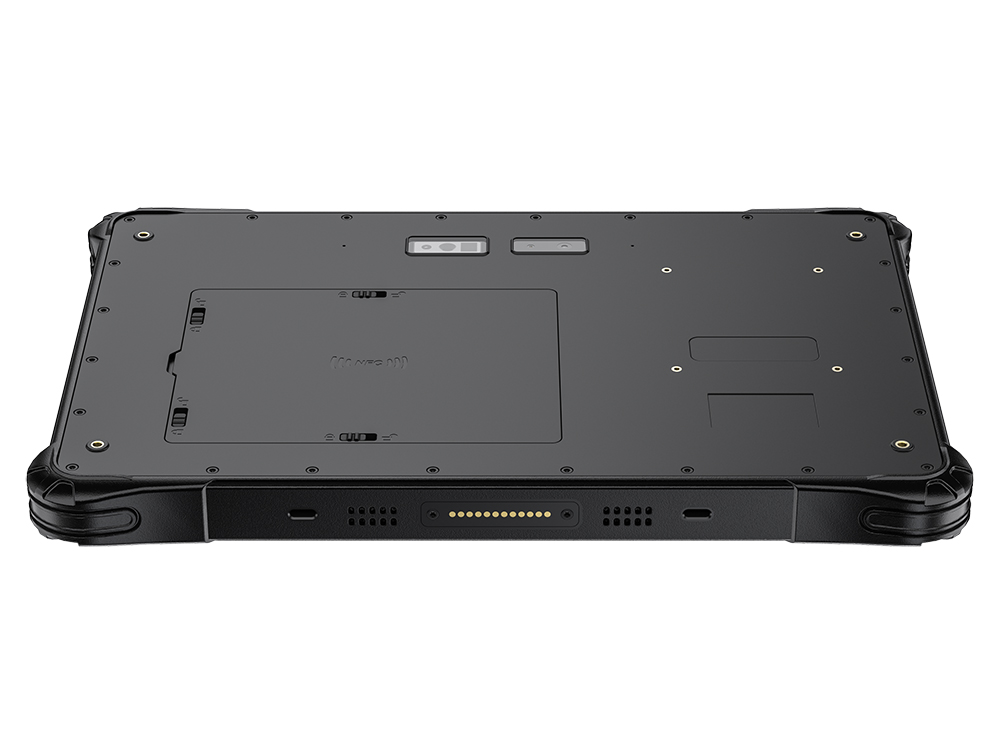

For advanced data capture, the RTC-I101 supports optional 1D/2D barcode scanning, NFC (13.56MHz), UHF RFID (PR9200), and a fingerprint reader certified to FBI/ISO/GA standards, enabling secure authentication and fast asset identification. The tablet offers extensive connectivity, including 1 x USB 3.0 Type-A, 1 x USB 2.0 Type-C (supporting charging and data), 1 x RJ45 Gigabit LAN, and a Mini HDMI port for external displays. A micro SIM card slot enables mobile broadband, while a TF card slot supports up to 256GB of additional storage. Two configurable aviation-grade connectors allow selection of USB, RS-232, or DC-in to suit specialised industrial integrations.

Comprehensive wireless capability includes dual-band Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 4.2, wide-band 4G LTE cellular connectivity, and GNSS support for GPS, GLONASS and BeiDou, ensuring reliable communication and accurate positioning.

Designed for harsh environments, the RTC-I101 features an IP67 rating for dust and water resistance and complies with MIL-STD-810H vibration and shock standards, including 3Grms vibration and 4ft drop protection. It also operates reliably across temperature ranges from -10°C to 50°C. The removable 7.6V 5000mAh battery delivers up to 6 hours of operation and can be swapped to support extended field use. With CE and FCC certification, the RTC-I101 is a dependable, rugged solution for demanding industrial mobile computing applications.

To learn more, download the datasheet or request a quote today.

Key Features:

• 10.1" LCD with rugged Gorilla Glass (7H hardness)
• 1280 x 800 (1920 x 1200 optional) resolution, 700nits brightness panel
• IP67 dust and water protection
• Projected capacitive touch with glove/wet support
• Intel Celeron N5100 CPU with integrated graphics
• DDR4 memory (up to 8GB) and high-capacity SSD storage (Up to 128GB)
• Front and rear cameras
• 1D/2D barcode scanner module
• NFC, RFID and fingerprint reader options
• USB Type-A/Type-C, RJ45 LAN and mini HDMI
• SIM slot and TF card expansion slot
• Wi-Fi, Bluetooth and 4G/5G cellular connectivity
• GNSS positioning support
• Wide-range DC power input
• High-capacity removable battery
• Extended operating temperature range: -10°C~50°C
• MIL-STD-810H shock and vibration tolerance
