FABS-118 Series
Product Overview
18.5" IP66/IP69K Industrial Display with VGA/HDMI/DP/DVI, touch options, and stainless steel bezel
Features Include:
- 18.5” TFT-LCD with 1366 x 768 (1920 x 1080 optional) resolution
- Stainless steel front bezel display
- Resistive or Projected Capacitive Touch or Glass Options
- Flat front panel touch screen
- View More

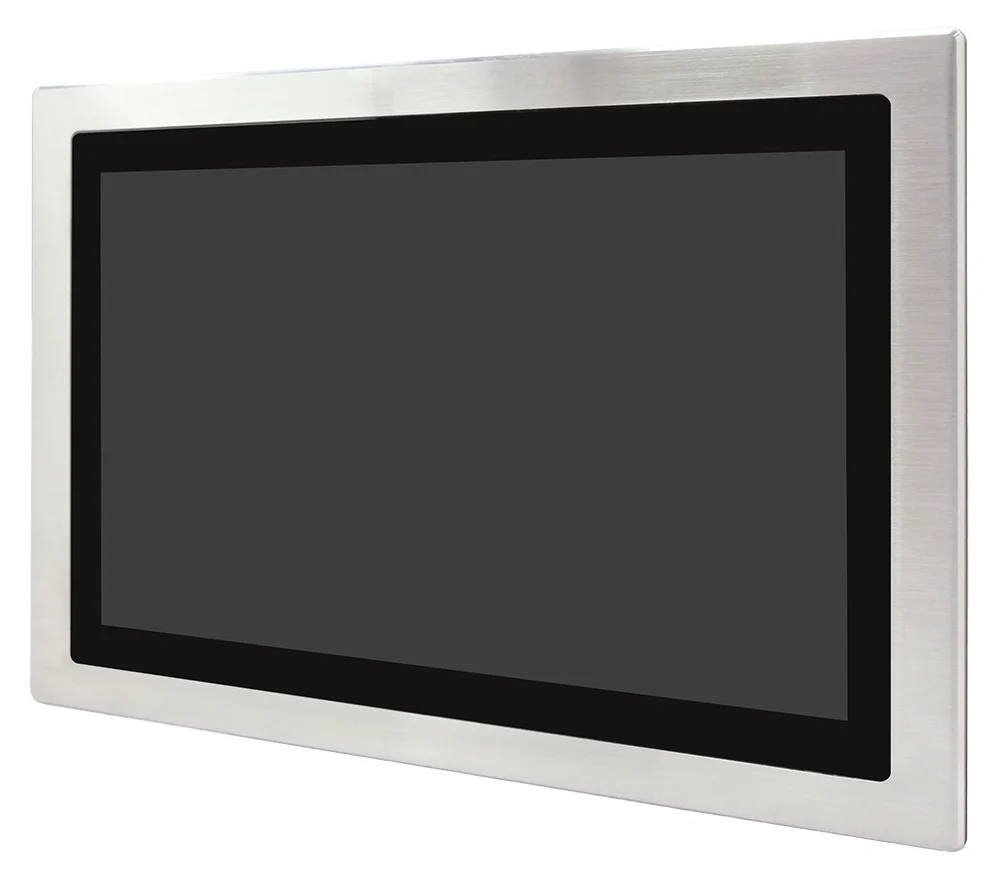

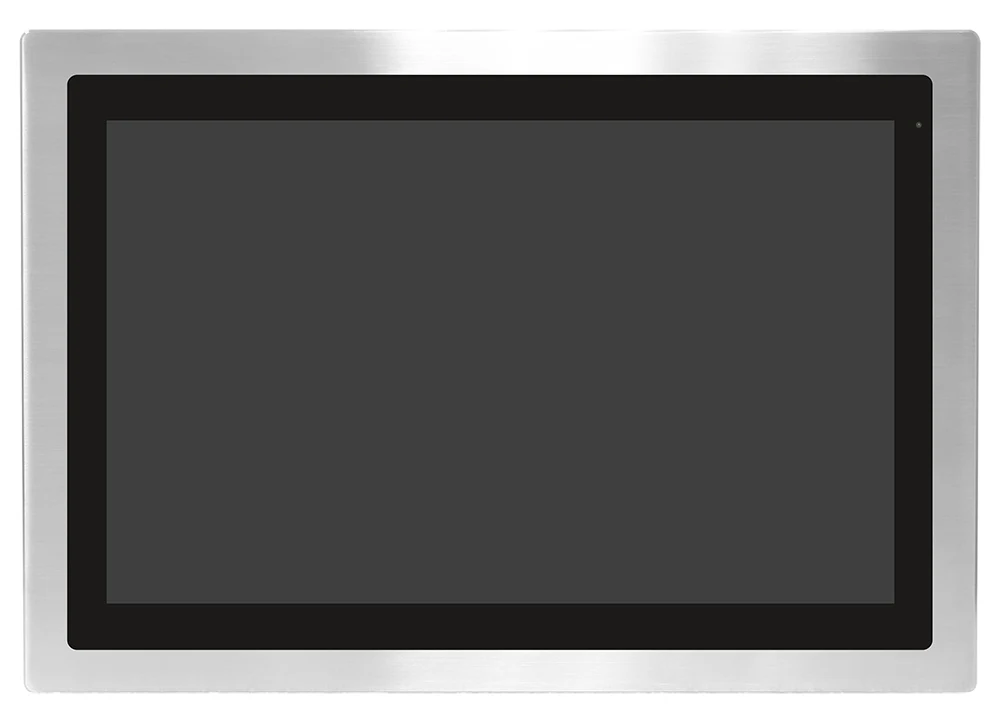

The FABS-118 is a compact 18.5” industrial display built for reliability in harsh and hygiene-critical environments. Featuring a flat front bezel with IP66/IP69K protection, it is designed to withstand high-pressure washdowns, making it ideal for applications in food, beverage, pharmaceutical, and chemical industries. With a 304 or optional 316L stainless steel front bezel for enhanced corrosion resistance and a rugged aluminium die-cast rear housing, the display ensures long-term durability in demanding settings.
It features a 18.5” TFT-LCD screen with 1366 x 768 (1920 x 1080 optional) resolution. It also supports a wide range of video inputs including VGA, HDMI, DisplayPort, and DVI-D, offering excellent compatibility with existing systems. Touch options include projected capacitive for rugged, multi-touch operation, or resistive touch for use with gloves—plus a glass-only variant for applications that don’t require interactivity. The display is available with a high brightness panel option (up to 1000nits) for improved visibility in brightly lit or outdoor environments. A rear OSD membrane also adds to its ease of use and integration.

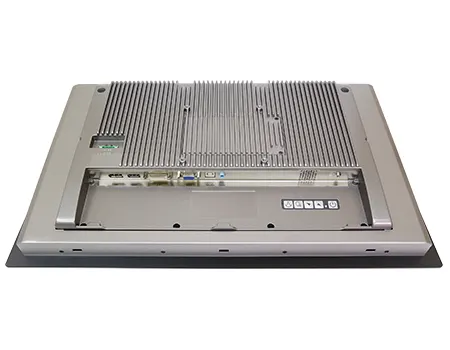

Designed with flexibility in mind, the FABS-118 supports both panel mount and VESA mounting options, allowing seamless installation into industrial enclosures, machinery, or operator stations. It accepts a wide 9–36V DC input, supports wide temperature operation (0~50˚C / -20~60˚C (option)), and can withstand vibrations up to 1G and a peak acceleration shock up to 15G, making it suitable for a variety of challenging applications. Certified to CE/FCC Class A standards and optionally compliant with EN 1672-2 (projected capacitive/glass models) for food-grade machinery, the FABS-118 series offers a reliable, compact display solution for demanding industrial environments.
Take a look at the data sheet or request a quote to learn more.
Key Features:
- 18.5” TFT-LCD with 1366 x 768 (1920 x 1080 optional) resolution
- Stainless steel front bezel display
- Resistive or Projected Capacitive Touch or Glass Options
- Flat front panel touch screen
- VGA/DP/DVI/HDMI input
- System power LED light
- High brightness LCD for option
- IP66/IP69K compliant front bezel
- OSD on the rear side
- Wide range DC 9~36V power input
- Wide Temperature Range (0~50˚C / -20~60˚C (option))
