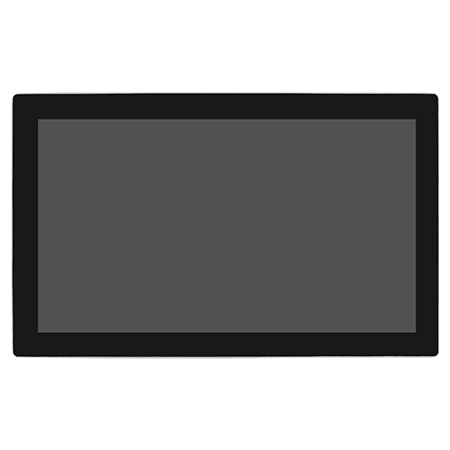

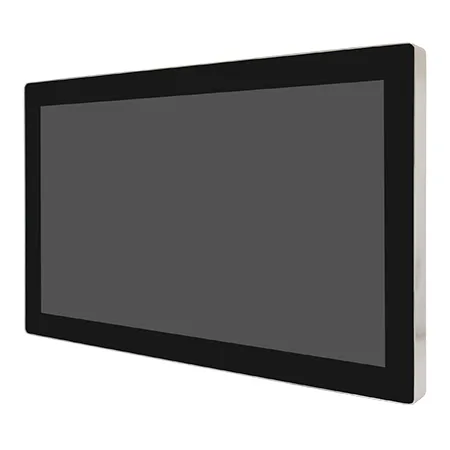

PhanTAM-121A Series

The PhanTAM-121A is a 21.5” (1920 x 1080) IP66/69K Fully Sealed Stainless Steel Industrial Display. The PhanTAM-121A improves on previous stainless steel displays, with an updated ultra slim front frame design, special hygienic bolts on rear case, and a rear waterproof OSD control, for improved usability function.

The PhanTAM-121A series is designed for a wide variety of industrial applications where sanitation is of serious concern, including food and beverage manufacturing, pharmaceutical industry and clean rooms. The PhanTAM series offers a highly protective panel solution, going beyond the basic standard, by achieving IP66 and IP69K-certified protection with M12 connectors.

The 304 (or optional 316) fully enclosed stainless steel chassis of the PhanTAM-121A series makes it an ideal option for the food and beverage manufacturing industry due to its slim design, and high corrosion and germ resistance, helping to prevent any bacterial contamination. Stainless steel also makes the chassis easy to clean (capable of withstanding high-pressure cleaning), increases the life cycle of the chassis due to its rugged nature, and helps to lower the cost of maintenance. The addition of new hygienic bolts with blue silicone rubber o-rings, further helps to prevent water, dust, and even bacteria accumulation, while still allowing for adaptability with mounting options.

The PhanTAM-121A series comes in a modern ultra-thin frame, which not only improves the design, but also helps to reduce the weight of the system. The fanless design of the PhanTAM series makes it easier to maintain the equipment and further helps to prevent the accumulation of dust. The optional PCAP touch screen with 7H anti-scratch surface helps to improve usability, while also providing the screen with tough protection. Optional high brightness features also help to make the screen visible in increased sunlight areas.

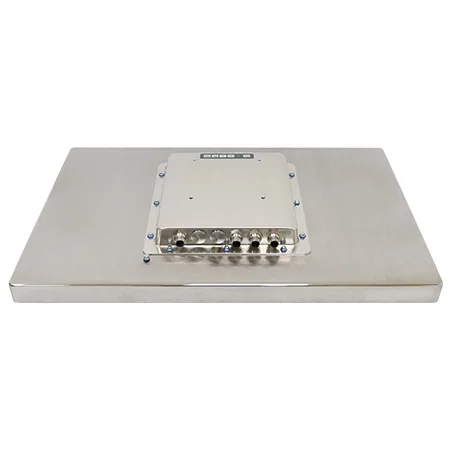

The PhanTAM-121A series has a rear OSD control and touch on/off button that not only improves functionality, but also makes it easier to maintain hygienic conditions. The PhanTAM series also offers a range of versatile mounting solutions including, floor stands, swing arms, wall mounts, desktop mounts, and VESA mounts, making them suitable for most applications.

Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

• 21.5" Fanless Stainless Steel Display
• IP66/IP69K Fully Sealed with M12 Connectors
• Projected Capacitive Touch
• Stainless Steel 304 Enclosure (Grade 316 Optional)
• Optional 1000nits High Brightness Display
• True Flat Front Bezel Design
• Ultra Slim Front Frame Design
• Special Hygienic Bolts on Rear Case
• Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Swing ARM (Optional)
• DC 24V Power Input
• Wide Operating Temp. range: 0°C ~50°C (optional -20~60˚C (WT1))
