FABS-110 Series

Product Overview

10.1" IP66/IP69K Industrial Display with VGA/HDMI/DP/DVI, touch options, and stainless steel bezel

Features Include:

  • 10.1” TFT-LCD with 1280 x 800 resolution
  • Stainless steel front bezel display
  • Resistive or Projected Capacitive Touch or Glass Options
  • Flat front panel touch screen
  • View More

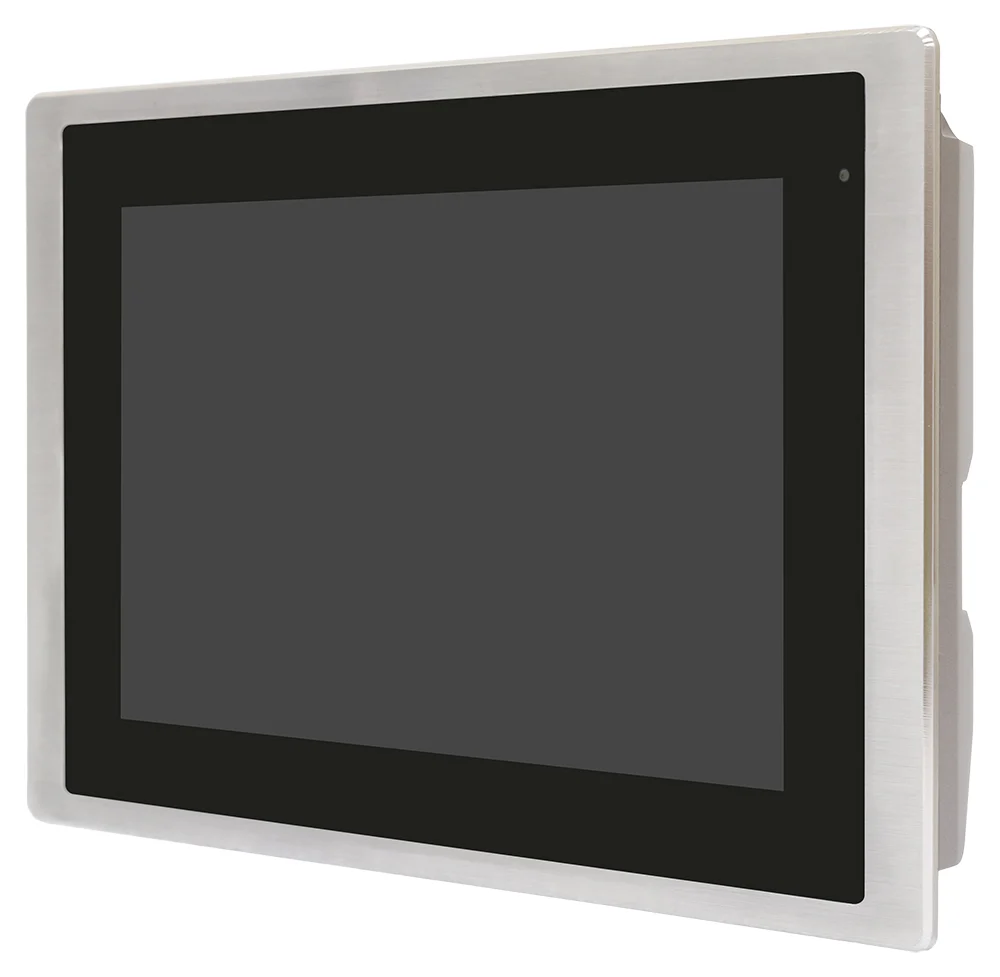

Industrial Monitors FABS-110 Series Main Product Image
Industrial Monitors FABS-110 Series Product Image 2

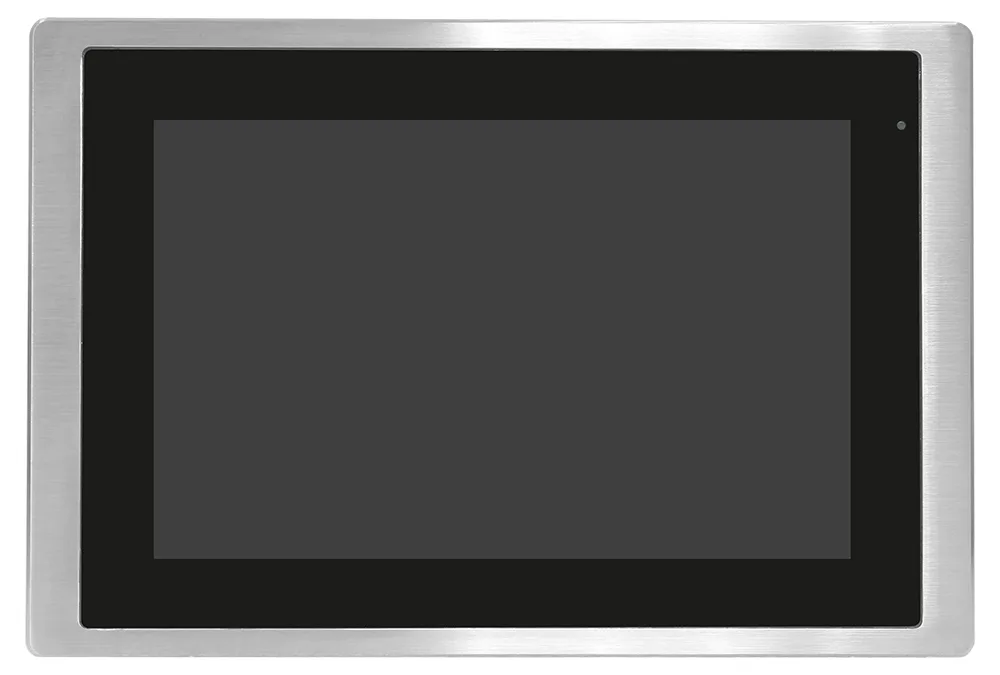

Industrial Monitors FABS-110 Series Product Image 3

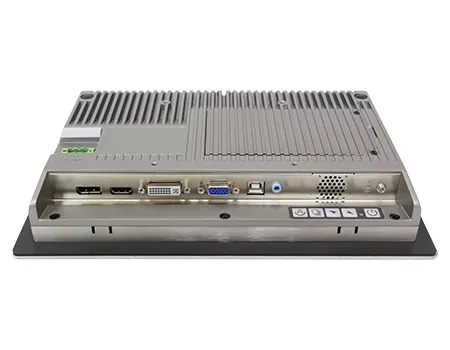

Industrial Monitors FABS-110 Series Product Image 4

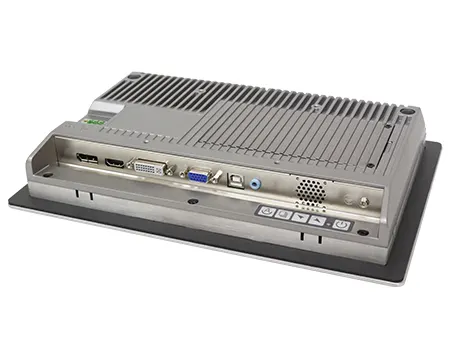

Industrial Monitors FABS-110 Series Product Image 5

The FABS-110 is a compact 10.1” industrial display built for reliability in harsh and hygiene-critical environments. Featuring a flat front bezel with IP66/IP69K protection, it is designed to withstand high-pressure washdowns, making it ideal for applications in food, beverage, pharmaceutical, and chemical industries. With a 304 or optional 316L stainless steel front bezel for enhanced corrosion resistance and a rugged aluminium die-cast rear housing, the display ensures long-term durability in demanding settings.

It features a 10.1” TFT-LCD screen with 1280 x 800 resolution. It also supports a wide range of video inputs including VGA, HDMI, DisplayPort, and DVI-D, offering excellent compatibility with existing systems. Touch options include projected capacitive for rugged, multi-touch operation, or resistive touch for use with gloves—plus a glass-only variant for applications that don’t require interactivity. The display is available with a high brightness panel option (up to 1000nits) for improved visibility in brightly lit or outdoor environments. A rear OSD membrane also adds to its ease of use and integration.

Designed with flexibility in mind, the FABS-110 supports both panel mount and VESA mounting options, allowing seamless installation into industrial enclosures, machinery, or operator stations. It accepts a wide 9–36V DC input, supports wide temperature operation (0~50˚C / -20~60˚C (option)), and can withstand vibrations up to 1G and a peak acceleration shock up to 15G, making it suitable for a variety of challenging applications. Certified to CE/FCC Class A standards and optionally compliant with EN 1672-2 (projected capacitive/glass models) for food-grade machinery, the FABS-110 series offers a reliable, compact display solution for demanding industrial environments.

Take a look at the data sheet or request a quote to learn more.

Key Features:

  • 10.1” TFT-LCD with 1280 x 800 resolution
  • Stainless steel front bezel display
  • Resistive or Projected Capacitive Touch or Glass Options
  • Flat front panel touch screen
  • VGA/DP/DVI/HDMI input
  • System power LED light
  • High brightness LCD for option
  • IP66/IP69K compliant front bezel
  • OSD on the rear side
  • Wide range DC 9~36V power input
  • Wide Temperature Range (0~50˚C / -20~60˚C (option))

Data Sheets (PDF)

Product Downloads PDF Icon

FABS-110 Series Data Sheet

Part Numbers

Details

FABS-110G

10.1" 1280x800 wide panelmount IP66/69K Stainless Steel industrial monitor no touch with protective glass, IP66/69K rated front panel, VGA, DVI, DP & HDMI, DC input

FABS-110P

10.1" 1280x800 wide panelmount IP66/69K Stainless Steel industrial monitor with proj capacitive USB touchscreen, IP66/69K rated front panel, VGA, DVI, DP & HDMI, DC input

FABS-110R

10.1" 1280x800 wide panelmount IP66/69K Stainless Steel industrial monitor with resistive USB touchscreen, IP66/69K rated front panel, VGA, DVI, DP & HDMI, DC input

Other Options

Details

AXX-X10-SR_OB

Upgrade FABS-110 to 1000nits sunlight readable with optical bonding

UPG-S304_S316L-10

Upgrade 10.1inch Stainless steel 304 front bezel to stainless steel 316L, FABS-110 series
