E-5D Series

Product Overview

5 External Configurable Sensors, 5 Digital Inputs, 2 Output Relays, Wide Range of Sensors & Alert Notification Options

Features Include:

  • Monitor and manage server room environmental and security conditions over IP.
  • Sensors supported by a single E-5D: 5 external configurable sensors, 5 digital inputs sensitive to contact closure & 2 internal sensors – temperature and humidity
  • Two output relays for control of external devices.
  • Supports NTI's IP network video cameras for live view of any facility.
  • View More

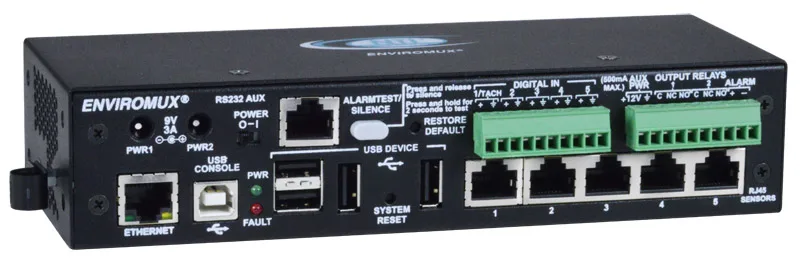

Environmental Monitoring E-5D Series Main Product Image
Environmental Monitoring E-5D Series Product Image 2

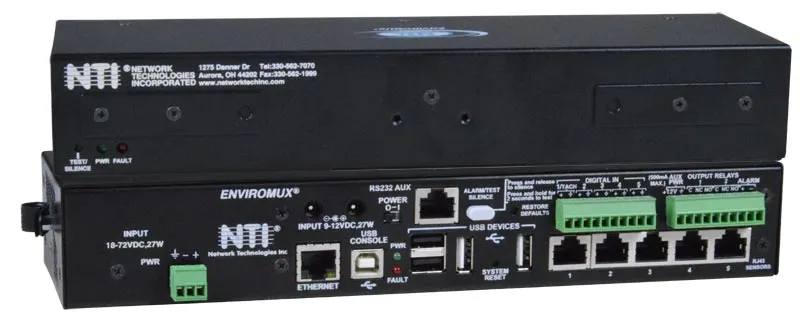

Environmental Monitoring E-5D Series Product Image 3

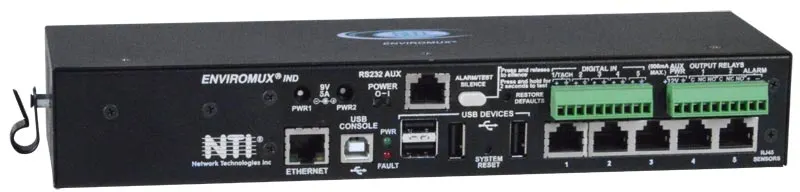

Environmental Monitoring E-5D Series Product Image 4

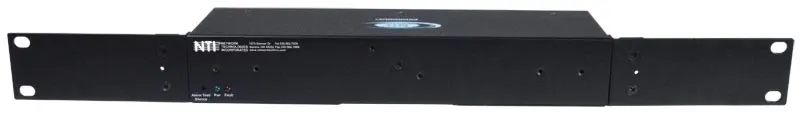

Environmental Monitoring E-5D Series Product Image 5

The E-5D ENVIROMUX® Enterprise Environmental Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), and SMS messages (via email-to-SMS or external USB modem).

The system includes two internal sensors: temperature and humidity. It also supports five external configurable sensors, five digital input sensors, and two output relays for control of external devices.

We offer a wide range of NTI E-xD Compatible External Sensors for this system:

Temperature / Humidity

Temperature RTD Sensors

Liquid / Chemical

Smoke / Gas / Dust

Air Flow / Velocity

Weather / Outdoor

Motion / Intrusion / Vibration Sensors

Access Control

Sirens / Beacons / Displays

Alert / Communication Accessories

Power Relays / Sensors

Sensor Accessories

Management Software



Key Features:

  • Monitor and manage server room environmental and security conditions over IP.
  • Sensors supported by a single E-5D: 5 external configurable sensors, 5 digital inputs sensitive to contact closure & 2 internal sensors – temperature and humidity
  • Two output relays for control of external devices.
  • Supports NTI's IP network video cameras for live view of any facility.
  • User-programmable IP camera snapshots.
  • Monitor (ping) up to 64 IP network devices.
  • Linux inside.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
  • Automatically configures network settings received from a connected DHCP server.
  • Integrates with various Open Source monitoring packages – Nagios and MRTG.
  • USB ports for connecting USB modem or for downloading log data to USB flash drive.
  • Available with optional internal battery backup.
  • Up to five units can be used together to increase the number of sensors connected.
  • Optional industrial medium environment monitoring systems for harsh environments with low/high temperatures from -40 to 185°F (-40 to 85°C).
  • Optional 1RU rackmount kit available; the ENVIROMUX unit can be mounted with the front (sensor connector side) or rear (additional status LEDS with alarm test/silence button side) facing out.
  • Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Multi-language support – English, German, Chinese, and Japanese.

Data Sheets (PDF)

Product Downloads PDF Icon

E-2D/5D/16D Alert and Communication Accessories

Product Downloads PDF Icon

E-2D/5D/16D Environmental Sensors

Product Downloads PDF Icon

E-2D/5D/16D Motion/Intrusion/Vibration Sensors

Product Downloads PDF Icon

E-2D/5D/16D Sensor Accessories

Product Downloads PDF Icon

ENVIROMUX Environmental Monitoring Systems Comparison

Product Downloads PDF Icon

ENVIROMUX Power Relays & Sensors

Product Downloads PDF Icon

ENVIROMUX-5D Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

E-16D/5D/2D Serial Control Manual

This manual provides instruction for connections and control of the ENVIROMUX-16D, ENVIROMUX-5D and ENVIROMUX-2DEnterprise Environment Monitoring Systems using the serial connection and the built-in text menu...

Product Downloads PDF Icon

E-16D/5D/2D Technical Manual

Enterprise Environment Monitoring System Installation and Operation Manual...

Product Downloads PDF Icon

E-5D Quick Installation Guide

Part Numbers

Details

E-5D

Medium Enterprise Environment Monitoring System

E-5D-48V

Medium Enterprise Environment Monitoring System, 48VDC Power

E-5DB

Medium Enterprise Environment Monitoring System, Back-up Battery

E-5DB-D

Medium Enterprise Environment Monitoring System, Back-up Battery, DIN Mounted

E-5DB-IND

Medium Enterprise Environment Monitoring System, Back-up Battery, for High Temperature Environments

E-5D-D

Medium Enterprise Environment Monitoring System, DIN Mounted

E-5D-IND48VLT

Medium Enterprise Environment Monitoring System, for Low / High Temperature Environments, 48VDC Power

E-5D-INDLT

Medium Enterprise Environment Monitoring System, for Low / High Temperature Environments

Accessories

Details

MK-DIN-E2D5DLXO

DIN Mounting Kit for ENVIROMUX-2D/5D/MINI-LXO
