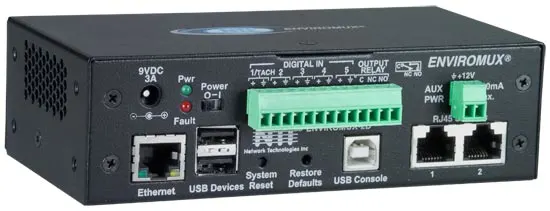

The E-2D ENVIROMUX® Small Enterprise Environmental Monitoring System (EMS) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), and SMS messages (via email-to-SMS or external USB modem).
The system supports two external configurable sensors, five digital input sensors, and one output relay for control of external devices.
We offer a wide range of NTI E-xD Compatible External Sensors for this system:
Temperature / Humidity
Temperature RTD Sensors
Liquid / Chemical
Smoke / Gas / Dust
Air Flow / Velocity
Weather / Outdoor
Motion / Intrusion / Vibration Sensors
Access Control
Sirens / Beacons / Displays
Alert / Communication Accessories
Power Relays / Sensors
Sensor Accessories
Management Software
Key Features:
- Monitor and manage server room environmental conditions over IP
- Supports 2 external configurable sensors, 5 digital inputs sensitive to contact closure
- Supports IP network video cameras for live view of any facility
- Monitor (ping) up to 16 IP network devices
- Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts
- Optional internal battery backup
- Integrates with various Open Source monitoring packages Nagios and MRTG
- Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface
E-2D/5D/16D Alert and Communication Accessories
E-2D/5D/16D Environmental Sensors
E-2D/5D/16D Motion/Intrusion/Vibration Sensors
E-2D/5D/16D Sensor Accessories
ENVIROMUX Environmental Monitoring Systems Comparison
ENVIROMUX Power Relays & Sensors
E-16D/5D/2D Serial Control Manual
This manual provides instruction for connections and control of the ENVIROMUX-16D, ENVIROMUX-5D and ENVIROMUX-2DEnterprise Environment Monitoring Systems using the serial connection and the built-in text menu...
E-16D/5D/2D Technical Manual
Enterprise Environment Monitoring System Installation and Operation Manual...
Enviromux-sems-2d Quick Start Guide
E-2D
Advanced Mini Environment Monitoring System
E-2DB
Advanced Mini Environment Monitoring System, Back-up Battery
E-2D-D
Advanced Mini Environment Monitoring System, DIN Mounted
E-2DB-D
Advanced Mini Environment Monitoring System, Back-up Battery, DIN Mounted
E-2D-24V
Advanced Mini Environment Monitoring System, 24VDC Power
E-2D-IND
Advanced Mini Environment Monitoring System for High Temperature Environments
E-2D-POE
ENVIROMUX Advanced mini server environment monitoring system with output relay, PoE
E-RK1-2D
1RU Rackmount Kit for ENVIROMUX-2D, ENVIROMUX-MINI-LXO
MK-DIN-E2D5DLXO
DIN Mounting Kit for ENVIROMUX-2D/5D/MINI-LXO
