E-16D Series

Product Overview

16 External Configurable Sensors, 8 Digital Inputs, 4 Output Relays, Wide Range of Sensors & Alert Notification Options

Features Include:

  • Monitor and manage server room environmental and security conditions over IP
  • 16 external configurable sensors, 8 digital inputs, 4 output relays
  • Create alarm signals with customized input parameters
  • Four output relays for control of external devices
  • View More

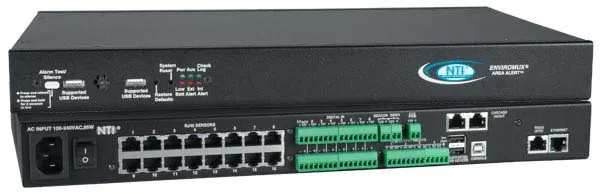

Environmental Monitoring E-16D Series Main Product Image
Environmental Monitoring E-16D Series Product Image 2

The E-16D ENVIROMUX® Enterprise Environmental Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), and SMS messages (via email-to-SMS or external USB modem).

The system includes three internal sensors: temperature, humidity and power. It also supports 16 external configurable sensors, eight digital input sensors, and four output relays for control of external devices.

We offer a wide range of NTI E-xD Compatible External Sensors for this system:

Temperature / Humidity

Temperature RTD Sensors

Liquid / Chemical

Smoke / Gas / Dust

Air Flow / Velocity

Weather / Outdoor

Motion / Intrusion / Vibration Sensors

Access Control

Sirens / Beacons / Displays

Alert / Communication Accessories

Power Relays / Sensors

Sensor Accessories

Management Software



Key Features:

  • Monitor and manage server room environmental and security conditions over IP
  • 16 external configurable sensors, 8 digital inputs, 4 output relays
  • Create alarm signals with customized input parameters
  • Four output relays for control of external devices
  • Supports IP network video cameras for live view of any facility
  • Monitor (ping) up to 64 IP network devices
  • Available sensors include: temperature, humidity, smoke, water, glass break, motion, vibration, 4-20mA converter, voltage detector, and more
  • Stores up to 1,000 event and data entries in system data log
  • Integrates with various Open Source monitoring packages
  • Provides power supply for all sensors
  • Available with optional dual power for connection to two separate power sources
  • Available with optional 48VDC or 24VDC power
  • Up to five units can be used together to increase the number of sensors connected
  • Optional USB Port Supports Flash Drives, USB Modem, and Snapshots from IP Cameras

Data Sheets (PDF)

Product Downloads PDF Icon

E-16D Series Data Sheet

Product Downloads PDF Icon

E-2D/5D/16D Alert and Communication Accessories

Product Downloads PDF Icon

E-2D/5D/16D Environmental Sensors

Product Downloads PDF Icon

E-2D/5D/16D Motion/Intrusion/Vibration Sensors

Product Downloads PDF Icon

E-2D/5D/16D Sensor Accessories

Product Downloads PDF Icon

ENVIROMUX Environmental Monitoring Systems Comparison

Product Downloads PDF Icon

ENVIROMUX Power Relays & Sensors

Technical Manuals (PDF)

Product Downloads PDF Icon

E-16D/5D/2D Serial Control Manual

This manual provides instruction for connections and control of the ENVIROMUX-16D, ENVIROMUX-5D and ENVIROMUX-2DEnterprise Environment Monitoring Systems using the serial connection and the built-in text menu...

Product Downloads PDF Icon

E-16D/5D/2D Technical Manual

Enterprise Environment Monitoring System Installation and Operation Manual...

Product Downloads PDF Icon

E-16D Quick Installation Guide

Part Numbers

Details

E-16D

Server Environment Monitoring System, AC power

E-16D-24V

Server Environment Monitoring System, 24VDC power

E-16D-24VDP

Server Environment Monitoring System, Dual 24VDC power

E-16D-48V

Server Environment Monitoring System, 48VDC power

E-16D-48VDP

Server Environment Monitoring System, Dual 48VDC power

E-16DDP

Server Environment Monitoring System, Dual AC power

E-16DEL

Server Environment Monitoring System, AC power, 1.2M data log entries, 3000 event log entires
