E-DCSR-V2 - Rugged Door Contact Sensor

E-DCSR-V2

Product Overview

Rugged Door Contact Sensor (E-2D / -5D / -16D / -MICRO / -1W Compatible)

Features Include:

  • Monitors access with a magnetic bridge sensor
  • Ideal for commercial and industrial installations in harsh environments
  • Floor-mounting hardware included
  • For normally open or normally closed circuit connected
  • View More

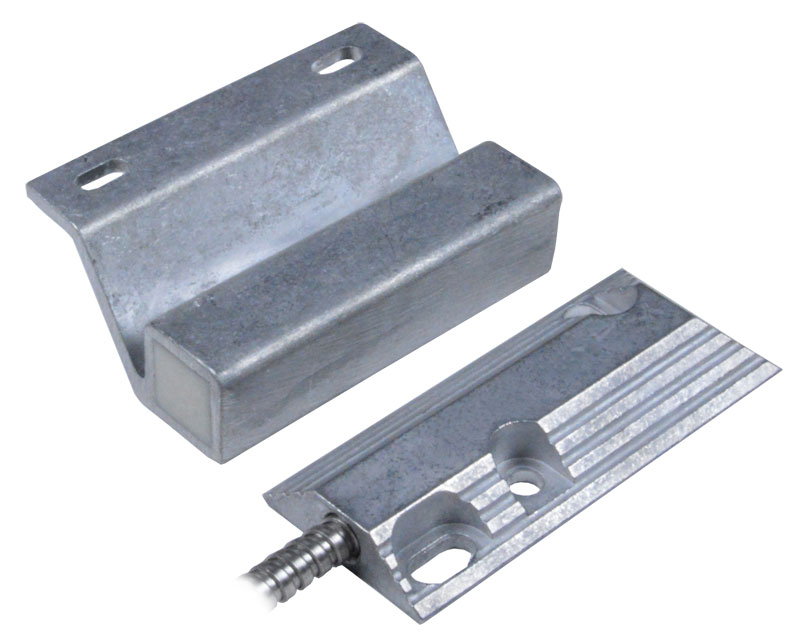

Environmental Monitoring E-DCSR-V2 Main Product Image
Environmental Monitoring E-DCSR-V2 Product Image 2
Environmental Monitoring E-DCSR-V2 Product Image 3

  • Monitors access with a magnetic bridge sensor (no special inserts necessary).
  • Ideal for commercial and industrial installations in harsh environments.
    • E-DCSR-V2: industrial-grade floor-mount switch that is primarily used for the protection of overhead doors where there is operation of heavy motorized traffic.
    • E-DCSR-UV2: Rugged Door Contact Sensor with Universal Style Magnet can be mounted at various angles for difficult installations.
  • Heavy-cast metal housing with 3.06-feet armored cable.
  • Floor-mounting hardware included.
  • For normally open or normally closed circuit connected.
  • Wide actuating gap up to 2.5 inches (63 mm).
    • Helps prevent false alarms caused by door movement or damaged and loose fitting doors.
  • Connect to digital input on an E-2D/5D/16D, E-MICRO or E-1W.
  • Operating temperature
    • E-DCSR-V2: -55 to 70°C
    • E-DCSR-UV2: -20 to 60°C
  • Dimensions WxDxH (in):
    • E-DCSR-V2
      • Magnet: 3.86x1.13x0.52 in (98x29x13 mm)
      • Switch: 3.5x1.5x0.44 in (89x38x11 mm)
    • E-DCSR-UV2
      • Magnet: 3.1x1.15x2.14 (79x29x54 mm)
      • Switch: 3.5x1.5x0.44 (89x38x11 mm)
  • Regulatory approvals: UL

Key Features:

  • Monitors access with a magnetic bridge sensor
  • Ideal for commercial and industrial installations in harsh environments
  • Floor-mounting hardware included
  • For normally open or normally closed circuit connected

Data Sheets (PDF)

Product Downloads PDF Icon

E-DCSR-V2 Data Sheet

Product Downloads PDF Icon

E-DCSR-V2 Installation Manual

Part Numbers

Details

E-DCSR-V2

Rugged Door Contact Sensor

E-DCSR-UV2

Rugged Door Contact Sensor with Universal Style Magnet
