E-SLDO-IP68-P

Product Overview

IP68 Submersible Spot Leak Detector, Adjustable Sensing Height, DPDT Alarm Relay (E-MICRO / -1W Compatible)

Features Include:

  • IP68/NEMA 6P submersible enclosure for harsh environments
  • Detects conductive liquids in confined or hard-to-access areas
  • Adjustable sensing height from 0.03" to 0.53" (0.79–13 mm)
  • Visual status LEDs: red for alarm, green for power
  • View More
Environmental Monitoring E-SLDO-IP68-P Main Product Image
Environmental Monitoring E-SLDO-IP68-P Product Image 2

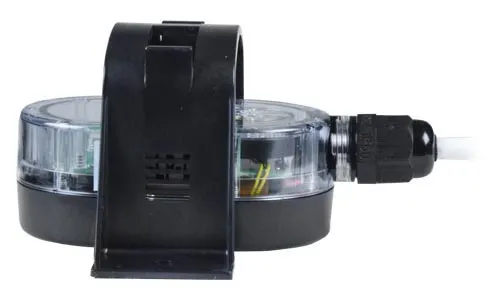

Environmental Monitoring E-SLDO-IP68-P Product Image 3

The E-SLDO-IP68-P is an industrial-grade, submersible spot liquid detector designed to safeguard critical infrastructure against water ingress. Engineered with an IP68-rated housing, this unit is ideal for detecting conductive fluid leaks in harsh or confined areas such as data centers, HVAC drip pans, raised floors, electrical switchgear rooms, and around sump pumps. Water is detected when it bridges two conductive strips beneath the housing, triggering both a visual LED alert and a remote alarm via DPDT relay contacts.

The E-SLDO-IP68-P supports either AC or DC power and includes a 12V/1A power supply. It features an adjustable sensing height as low as 0.03" and comes with a mounting bracket for easy installation using adhesive strips or screws. With low power consumption, reliable performance in temperatures from 0 to 50°C, and compliance with CE and RoHS standards, this compact and durable unit is built to meet the demanding needs of industrial monitoring environments.

Take a look at the data sheet or request a quote to learn more.

Key Features:

  • IP68/NEMA 6P submersible enclosure for harsh environments
  • Detects conductive liquids in confined or hard-to-access areas
  • Adjustable sensing height from 0.03" to 0.53" (0.79–13 mm)
  • Visual status LEDs: red for alarm, green for power
  • DPDT relay contacts for remote alarm indication or control
  • Low power draw: 30mA typical, 85mA max @ 12VDC
  • 12V/1A power supply included for easy integration
  • 1.5 m (4.9 ft) cable for flexible placement
  • Mounting bracket with adhesive strips or screws included
  • CE and RoHS certified
  • Operating Temp Range 0 to 50°C

Data Sheets (PDF)

Product Downloads PDF Icon

E-SLDO-IP68-P Data Sheet

Product Downloads PDF Icon

E-SLDO-IP68-P Installation Manual

Part Numbers

Details

E-SLDO-IP68-P

IP68 Submersible Spot Liquid Detector
